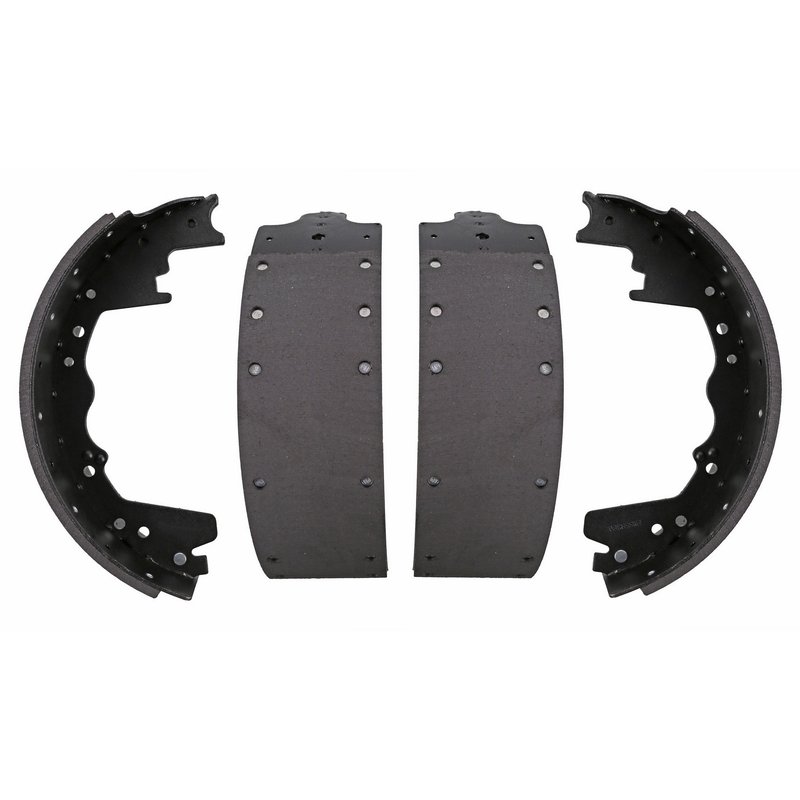

Wagner Brake Z583R Drum Brake Shoe - Rear

Reliable Drum Brake Shoe for Dodge and Ford Vehicles

The Wagner Brake Z583R drum brake shoe offers dependable braking performance for select Dodge and Ford models. Designed with organic friction material and precise dimensions, this brake shoe ensures consistent stopping power and durability.

• Brake shoe width: 3.500 inches
• Organic friction material for smooth braking
• Riveted friction material attachment for secure fit
• Brake drum diameter compatibility: 12.125 inches
• Primary friction material thickness: 0.220 inches
• Secondary friction material thickness: 0.285 inches
• FMSI number: S583r

About the Wagner Brand Line

The Wagner brand line is known for producing quality brake components that meet or exceed OEM specifications. This Z583R drum brake shoe is part of Wagner's comprehensive brake product range, engineered to provide reliable friction performance and consistent wear characteristics for commercial and passenger vehicles.

Product Details and Specifications

The Wagner Brake Z583R drum brake shoe features an organic friction material composition, which offers quieter operation and reduced brake dust compared to semi-metallic alternatives. The friction material is riveted securely to the steel backing plate, ensuring durability under normal driving conditions. This brake shoe is designed to fit brake drums with a diameter of 12.125 inches and has a width of 3.5 inches, making it suitable for specific Dodge and Ford models including the Dodge Ram 1500 Van, Ram 2500, Ram 3500, and Ford E-350 Econoline series.

Compatible Vehicles and Applications

• Dodge B2500 and B3500
• Dodge Ram 1500 Van, Ram 2500, Ram 2500 Van, Ram 3500, Ram 3500 Van
• Ford E-350 Econoline and E-350 Econoline Club Wagon
• Ford F-350

This brake shoe is ideal for addressing common brake issues such as worn friction material, uneven braking, brake noise, and reduced stopping power in these vehicles.

Installation Notes and Tips

When installing the Wagner Z583R drum brake shoe, ensure the brake drum diameter matches 12.125 inches for proper fitment. Since mounting hardware and parking brake levers are not included, reuse existing components or acquire compatible hardware separately. Inspect the brake drum and related components for wear or damage during installation to maintain optimal braking performance.

Quality Assurance and Warranty

Wagner brake products are manufactured to meet industry standards for safety and performance. The Z583R drum brake shoe undergoes rigorous quality control to ensure consistent friction material thickness and secure attachment. While specific warranty details are not provided, Wagner products typically carry a limited warranty against defects in materials and workmanship.
