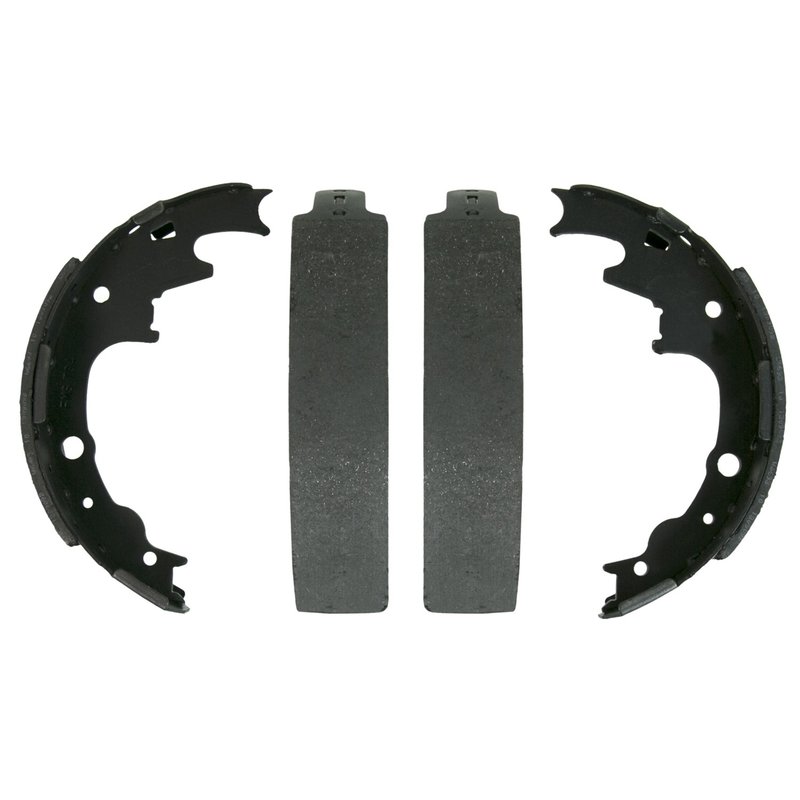

Wagner Brake Z704 Drum Brake Shoe - Rear
Wagner Z704 Rear Drum Brake Shoe
The Wagner Z704 is a rear drum brake shoe built for vehicles using 9-inch by 1-3/4-inch rear drum brakes. It uses OE-matched organic friction material and precision-ground surfaces to improve friction-to-drum contact for consistent braking response.
Compatible with select Ford Ranger, Mazda B2300, Mazda B2500, Mazda B3000, and Mazda B4000 rear brake applications, the Wagner Brake line focuses on direct-fit replacement parts for common service jobs. The Z704 is a bonded drum brake shoe with a 1.750-inch width and a 9.000-inch drum diameter specification.
Key Features
- Part number: Z704
- Rear drum brake shoe for 9-inch x 1-3/4-inch brake setups
- Organic friction material for controlled braking feel
- Bonded friction attachment
- Precision-ground material surface for improved drum contact
- Brake shoe width: 1.750 inches
- Brake drum diameter: 9.000 inches
- FMSI number: 2180T-S704
Detailed Description
Wagner Brake Z704 is engineered as a rear drum brake shoe for service on vehicles that use the 2180T lining profile and S704 steel specification. The organic friction compound is matched to OE-style performance targets, while the precision-ground construction helps the shoe seat properly against the drum surface. This supports even contact across the braking surface and stable pedal response during routine stop-and-go driving.
This part cross-references Ford/Mazda applications such as 3L5Z2200CA and F5TZ2200B for the same application. It is a practical replacement choice for rear brake service on Ford Ranger and Mazda B-series trucks where the original setup calls for a bonded 9-inch drum shoe.
What It Helps Address
- Rear brake noise caused by worn drum shoe friction material
- Reduced braking performance from thin or glazed shoes
- Uneven drum contact that can affect pedal feel
- Service replacement for worn rear drum brake linings
- Brake maintenance on Ford Ranger and Mazda B-series rear drum systems
Installation Notes and Tips
- Verify the rear brake drum measures 9.000 inches in diameter before ordering.
- Confirm the vehicle uses 1.750-inch wide bonded drum shoes.
- Inspect the drum surface for scoring, taper, or heat damage during service.
- Replace or service related brake components as needed to restore even contact.
- Fitment includes rear applications for 1995-2009 Ford Ranger, 1995-2008 Mazda B3000, 1995-2010 Mazda B4000, 1995-1997 Mazda B2300, 1998-2001 Mazda B2500, and 2001-2010 Mazda B2300 with 9-inch x 1-3/4-inch brakes.
Quality Assurance
Wagner Brake uses OE-matched friction materials and precision-ground manufacturing methods to support consistent brake performance and reliable drum contact. The Z704 is built to the listed FMSI 2180T-S704 specification for application matching.
| Brand | Wagner Brake |
|---|---|
| Part Number | Z704 |
| Position | Wagner, Rear |
| Brake Shoe Width | 1.750 |
| Friction Material Composition | Organic |
| Mounting Hardware Included | No |
| Friction Material Attachment | Bonded |
| Brake Drum Diameter | 9.000 |
| FMSI Number | 2180t-s704 |
| Primary Brake Shoe Friction Material Thickness | 0.205 |
| Secondary Brake Shoe Friction Material Thickness | 0.250 |
| FMSI Lining | 2180t |
| FMSI Steel | S704 |
This part fits 62 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2010 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2009 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2009 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2009 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2008 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2008 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2008 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2008 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2007 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2007 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2007 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2007 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2006 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2006 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2006 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2006 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2005 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2005 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2005 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2005 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2004 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2004 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2004 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2004 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2003 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2003 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2003 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2003 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2002 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2002 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2002 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2002 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2001 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2001 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2001 | Mazda | B2500 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2001 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2001 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2000 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2000 | Mazda | B2500 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2000 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 2000 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1999 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1999 | Mazda | B2500 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1999 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1999 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1998 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1998 | Mazda | B2500 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1998 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1998 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1997 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1997 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1997 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1997 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1996 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1996 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1996 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1996 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1995 | Ford | Ranger | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1995 | Mazda | B2300 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1995 | Mazda | B3000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
| 1995 | Mazda | B4000 | Rear | with 9 (in) x 1-3/4 (in) Brakes; Bonded Shoe; Wagner |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
