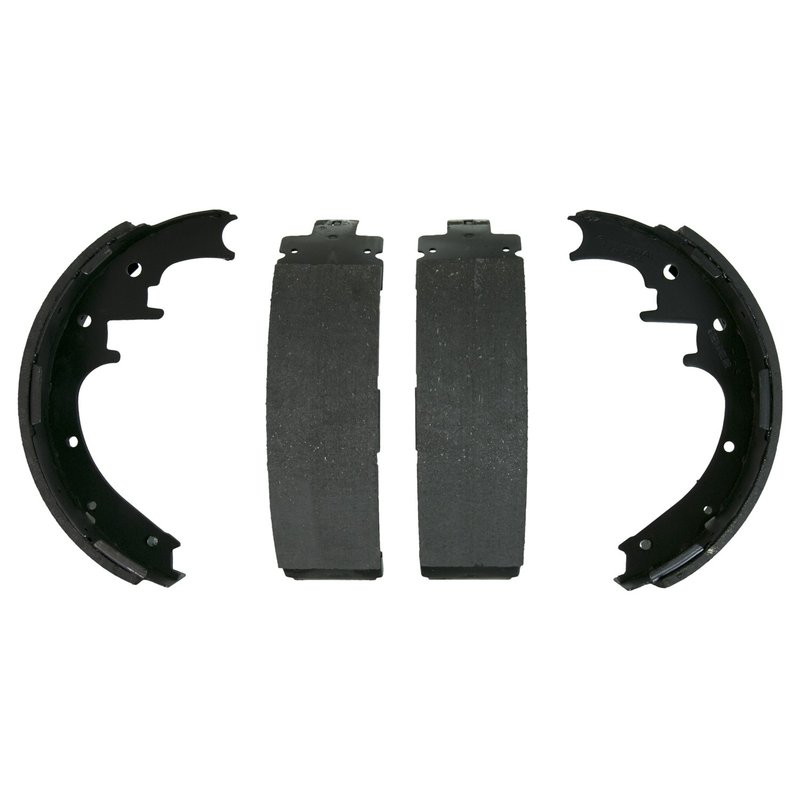

Wagner Brake Z705 Drum Brake Shoe - Rear
| Brand | Wagner Brake Z705 |
|---|---|
| Position | Rear |
| Brake Shoe Width | 2.500 |
| Friction Material Composition | Organic |
| Mounting Hardware Included | No |
| Friction Material Attachment | Bonded |
| Brake Drum Diameter | 10.000 |
| FMSI Number | 2184t-s705 |
| Primary Brake Shoe Friction Material Thickness | 0.210 |
| Secondary Brake Shoe Friction Material Thickness | 0.250 |
| Parking Brake Levers Included | No |
| Brake Shoe With Parking Brake Levers Quantity | 0 |
| FMSI Lining | 2184t |
| FMSI Steel | S705 |
| Product line | Wagner |
| Fits | Ford and Mazda · 62 vehicles |
OE-matched friction. Organic lining helps deliver consistent brake feel in drum applications.
Precision-ground surface. Promotes even contact between the shoe and drum for stable braking.
Bonded construction. Provides a secure friction attachment for service replacement use.
Cross-references 1F6126310, 1F6126310B and 2U2Z2V200NARM for the same application. See all 10.
Overview
Wagner Brake Z705 is a bonded drum brake shoe built with OE-matched friction material and precision-ground surfaces for consistent contact with the drum. It is a direct fit for rear drum brake applications on select Ford Ranger and Mazda B-Series trucks.
Key Features
- OE-matched organic friction material for balanced braking performance.
- Precision-ground construction helps maximize friction-to-drum contact.
- Bonded friction attachment for a stable shoe design.
- 2.500-inch shoe width and 10.000-inch drum diameter specification.
- Fits rear drum brake applications on select Ford Ranger and Mazda B2300, B2500, B3000, and B4000 models.
Detailed Description
The Wagner Brake Z705 drum brake shoe is engineered for rear drum brake service where correct friction material and drum contact are critical. Its organic lining and bonded construction follow OE-style requirements, while the precision-ground surface helps promote even engagement across the drum. This part number, Z705, is listed for 1995-2009 Ford Ranger rear applications and multiple Mazda B-Series rear applications, including Mazda B2300, B2500, B3000, and B4000. If you are replacing worn rear drum shoes on a Ford Ranger or Mazda B3000, Z705 provides the specified 10-inch by 2.5-inch brake shoe format.
What It Is Used For
- Restoring rear drum brake friction when lining material is worn.
- Addressing reduced braking response from glazed or uneven shoes.
- Replacing shoes that no longer maintain proper drum contact.
- Correcting noise or vibration caused by worn drum brake linings.
- Servicing rear brake systems on Ford Ranger and Mazda B-Series trucks.
Installation Notes and Tips
Verify drum diameter, shoe width, and rear axle application before installation. This Wagner Brake Z705 shoe is a bonded design and does not include mounting hardware or parking brake levers. Inspect the brake drum, wheel cylinders, and related rear brake components during service to confirm the new shoes can seat properly.
Quality Assurance
Wagner Brake uses OE-matched friction materials and precision-ground surfaces to support consistent brake performance and drum contact. This part cross-references Ford/Mazda applications such as BX705 and F57Z2200A for the same application.
