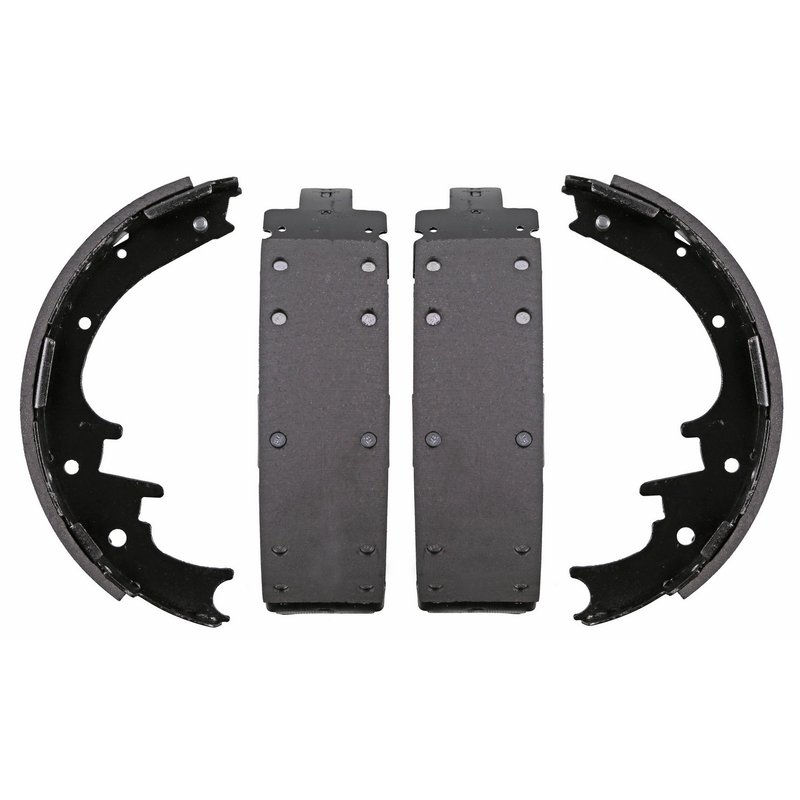

Wagner Brake Z705R Drum Brake Shoe - Rear
Reliable Drum Brake Shoe for Ford and Mazda Trucks
The Wagner Brake Z705R drum brake shoe is designed to provide consistent braking performance for select Ford and Mazda truck models. Engineered with organic friction material and riveted attachment, this brake shoe ensures dependable stopping power for vehicles like the Ford Ranger and Mazda B-series trucks.
Key Features of Wagner Brake Z705R Drum Brake Shoe
- Brake shoe width: 2.500 inches for precise fitment
- Organic friction material composition for smooth braking
- Riveted friction material attachment for durability
- Brake drum diameter compatibility: 10.000 inches
- Primary friction material thickness: 0.210 inches
- Secondary friction material thickness: 0.250 inches
- FMSI lining number: 2184t
- FMSI steel number: S705
About the Wagner Brand Line
The Wagner brand line is known for producing quality brake components that meet or exceed OEM specifications. This drum brake shoe, part number Z705R, is built to deliver reliable braking performance and durability, making it suitable for maintenance and replacement needs on compatible Ford and Mazda trucks.
Detailed Product Description
The Wagner Brake Z705R drum brake shoe features an organic friction material that offers a balance of quiet operation and effective stopping power. The friction material is riveted securely to the steel backing plate, enhancing longevity and resistance to wear. Designed for brake drums with a 10-inch diameter, this brake shoe has a width of 2.5 inches, ensuring proper contact and braking efficiency. The primary and secondary friction material thicknesses of 0.210 and 0.250 inches respectively provide adequate material for extended service life. This part is compatible with Ford B2300, B2500, B3000, B4000, and Ranger models, as well as Mazda B2300, B2500, and B3000 trucks.
Common Applications and Issues Addressed
- Replacement for worn or damaged drum brake shoes on Ford and Mazda trucks
- Restores braking performance and pedal feel
- Reduces brake noise associated with worn friction material
- Helps prevent brake fade during regular driving conditions
- Addresses uneven brake wear and improves safety
Installation Notes and Tips
Ensure the brake drum diameter is 10 inches before installation to confirm compatibility. This brake shoe does not include mounting hardware or parking brake levers, so verify existing components are in good condition or replace as needed. Proper cleaning and inspection of the brake assembly are recommended prior to installation. Follow manufacturer torque specifications and safety procedures during installation.
Quality Assurance and Warranty
Wagner Brake products are manufactured to meet industry standards for performance and durability. The Z705R drum brake shoe undergoes quality control inspections to ensure consistent friction material thickness and secure riveted attachment. Warranty coverage details should be confirmed with the product documentation or supplier.
| Brand | Wagner Brake |
|---|---|
| Part Number | Z705R |
| Position | Wagner, Rear |
| Brake Shoe Width | 2.500 |
| Friction Material Composition | Organic |
| Mounting Hardware Included | No |
| Friction Material Attachment | Riveted |
| Brake Drum Diameter | 10.000 |
| FMSI Number | 2184t-s705 |
| Primary Brake Shoe Friction Material Thickness | 0.210 |
| Secondary Brake Shoe Friction Material Thickness | 0.250 |
| Parking Brake Levers Included | No |
| Brake Shoe With Parking Brake Levers Quantity | 0 |
| FMSI Lining | 2184t |
| FMSI Steel | S705 |
This part fits 62 vehicles. Search below:
