Part #: Z714R

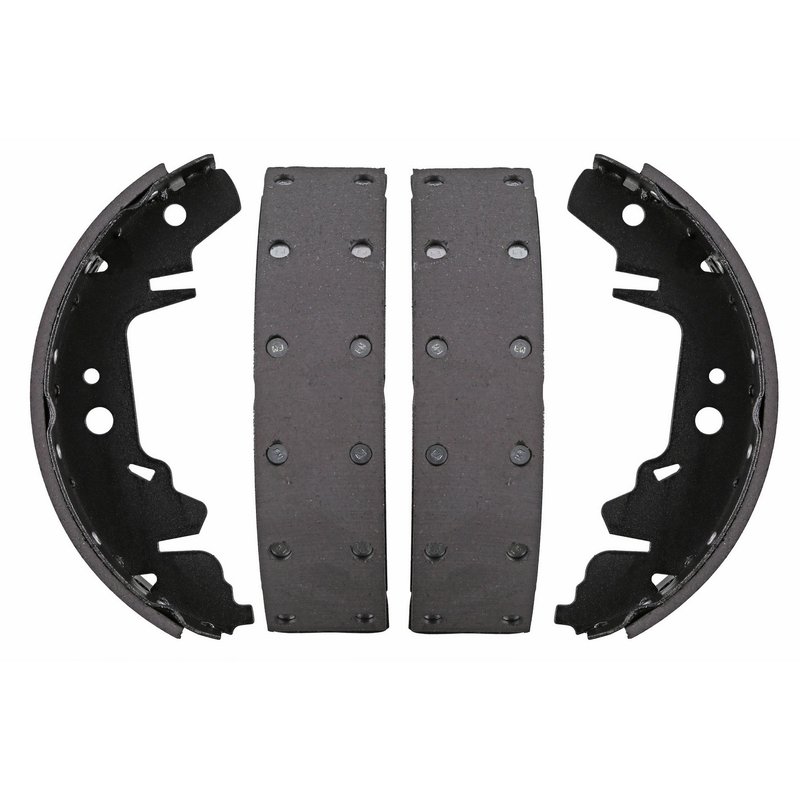

Wagner Brake Z714R Drum Brake Shoe - Rear

Wagner, Rear
⚙️ 57 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$51.83Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Wagner, Rear
🚗Fitment: Chrysler, Dodge, and Plymouth, Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Drum Brake Shoe options

Reliable Drum Brake Shoe for Chrysler, Dodge, and Plymouth Vehicles

The Wagner Brake Z714R drum brake shoe is designed to provide consistent braking performance for select Chrysler, Dodge, and Plymouth models. Engineered with organic friction material and a riveted attachment, this brake shoe meets the demands of vehicles like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager.

  • Brake shoe width: 2.165 inches
  • Organic friction material for smooth braking
  • Riveted friction material attachment for durability
  • Brake drum diameter compatibility: 9.840 inches
  • Primary friction material thickness: 0.240 inches
  • FMSI number: S714r

Wagner Brand Line Overview

The Wagner brand line focuses on delivering dependable brake components that meet OEM specifications. The Z714R drum brake shoe is part of this line, offering quality materials and precise fitment for improved braking reliability on compatible Chrysler, Dodge, and Plymouth vehicles.

Product Details and Specifications

This Wagner drum brake shoe features an organic friction material composition, which provides a balance of quiet operation and effective stopping power. The friction material is riveted securely to the shoe, ensuring long-lasting performance under normal driving conditions. Designed for brake drums with a diameter of 9.840 inches, the shoe width measures 2.165 inches, and the primary friction material thickness is 0.240 inches. The part corresponds to FMSI number S714r, confirming its compatibility with specific vehicle models.

Compatible Vehicles and Applications

  • Chrysler Caravan and Grand Caravan
  • Chrysler Town & Country
  • Dodge Grand Voyager and Voyager
  • Plymouth Grand Voyager

This brake shoe is intended for use in drum brake systems on the listed vehicles, helping to restore braking efficiency and address common brake issues.

Common Issues Addressed by Wagner Z714R Brake Shoe

  • Worn or thin brake shoes causing reduced braking performance
  • Brake noise or squealing due to degraded friction material
  • Uneven brake wear affecting vehicle stability
  • Brake fade during extended use
  • Restoring proper brake shoe fitment for safe operation

Installation Notes and Tips

Ensure the brake drum diameter matches 9.840 inches before installation. The Z714R brake shoe does not include mounting hardware or parking brake levers, so verify existing components are in good condition or replace as needed. Proper cleaning and inspection of the brake assembly are recommended to maintain optimal braking performance.

Quality Assurance and Warranty

Wagner brake shoes are manufactured to meet industry standards for safety and durability. While specific warranty details for part number Z714R are not provided, Wagner products typically adhere to strict quality control processes to ensure reliable operation on compatible Chrysler, Dodge, and Plymouth vehicles.

BrandWagner Brake
Part NumberZ714R
PositionWagner, Rear
Brake Shoe Width2.165
Friction Material CompositionOrganic
Mounting Hardware IncludedNo
Friction Material AttachmentRiveted
Brake Drum Diameter9.840
FMSI NumberS714r
Primary Brake Shoe Friction Material Thickness0.240
Parking Brake Levers IncludedNo
Brake Shoe With Parking Brake Levers Quantity0
FMSI SteelS714r

This part fits 57 vehicles. Search below:

YearMakeModelPositionNotes
2007ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2007DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2007DodgeGrand CaravanRearRiveted Shoe; Wagner
2006ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2006DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2006DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2005ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2005DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2005DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2004ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2004DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2004DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2003ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2003ChryslerVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2003DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2003DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2002ChryslerVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2002DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2002DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2001ChryslerVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2001DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2001DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2000ChryslerGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2000ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2000ChryslerVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2000DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2000DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2000PlymouthGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
2000PlymouthVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1999ChryslerGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1999ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1999ChryslerVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1999DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1999DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1999PlymouthGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1999PlymouthVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1998ChryslerGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1998ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1998ChryslerVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1998DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1998DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1998PlymouthGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1998PlymouthVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1997ChryslerGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1997ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1997ChryslerVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1997DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1997DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1997PlymouthGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1997PlymouthVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1996ChryslerGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1996ChryslerTown & CountryRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1996ChryslerVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1996DodgeCaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1996DodgeGrand CaravanRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1996PlymouthGrand VoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner
1996PlymouthVoyagerRearwith 9-27/32 (in) x 2-11/64 (in) Brakes; Riveted Shoe; Wagner

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

479767348820594883833AA714714B714SGBX714BX714RNR714R714

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
