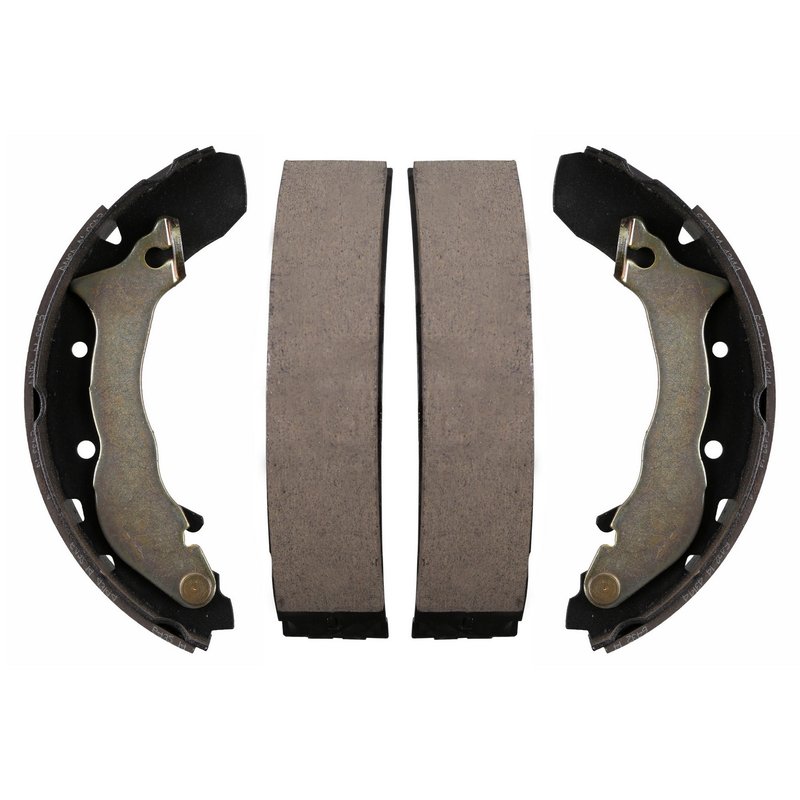

Wagner Brake Z736 Drum Brake Shoe - Rear

Wagner Z736 Rear Drum Brake Shoe

Wagner Brake Z736 is a rear drum brake shoe built with OE-matched organic friction material and precision-ground surfaces to improve friction-to-drum contact. It is a direct-fit option for select Ford Contour, Mercury Mystique, and Mercury Cougar applications with 9-inch x 1-11/16-inch rear drum brakes.

Key Features

• Organic friction material with bonded attachment for consistent drum brake operation
• Precision-ground materials help maximize contact with the brake drum
• Brake shoe width: 1.680 in.
• Brake drum diameter: 9.000 in.
• Primary friction thickness: 0.265 in.; secondary friction thickness: 0.160 in.
• Parking brake levers included
• FMSI number 1504-S736 / lining 1504 / steel S736

Product Details

The Wagner Wagner Z736 drum brake shoe is engineered for rear brake service where smooth engagement and reliable stopping performance matter. Its OE-matched friction formulation and ground contact surfaces are selected to support even shoe-to-drum interaction, which is important on vehicles using 9-inch rear drums. This part cross-references Monroe Shocks & Struts (e.g., BX736, R736L) for the same application. Compatible with 1995-2000 Ford Contour rear, 1995-2000 Mercury Mystique rear, and 1999-2002 Mercury Cougar rear with 9 in. x 1-11/16 in. brakes. The Z736 is a practical replacement choice when servicing rear drum brake assemblies on Ford Contour and Mercury Mystique models, as well as Mercury Cougar rear brake systems.

What This Part Helps Address

• Rear brake noise caused by worn or uneven shoe friction surfaces
• Reduced braking response from aged drum brake linings
• Poor shoe-to-drum contact that can affect pedal feel
• Parking brake performance issues related to worn rear shoes
• Brake service needs on 9-inch rear drum brake assemblies

Installation Notes

Verify drum diameter, shoe width, and vehicle application before installation. This part does not include mounting hardware, so inspect related brake hardware, return springs, and adjusters during service. Clean the drum and backing plate, and confirm proper parking brake lever operation before returning the vehicle to service. For best results, replace worn components in the rear brake assembly as needed and follow the vehicle manufacturer’s service procedure.

Quality Assurance

Wagner Brake uses OE-matched friction materials and precision-ground construction to support consistent brake performance and drum contact. The Z736 is identified by FMSI 1504-S736 and is built for the specified rear drum brake applications listed above.
