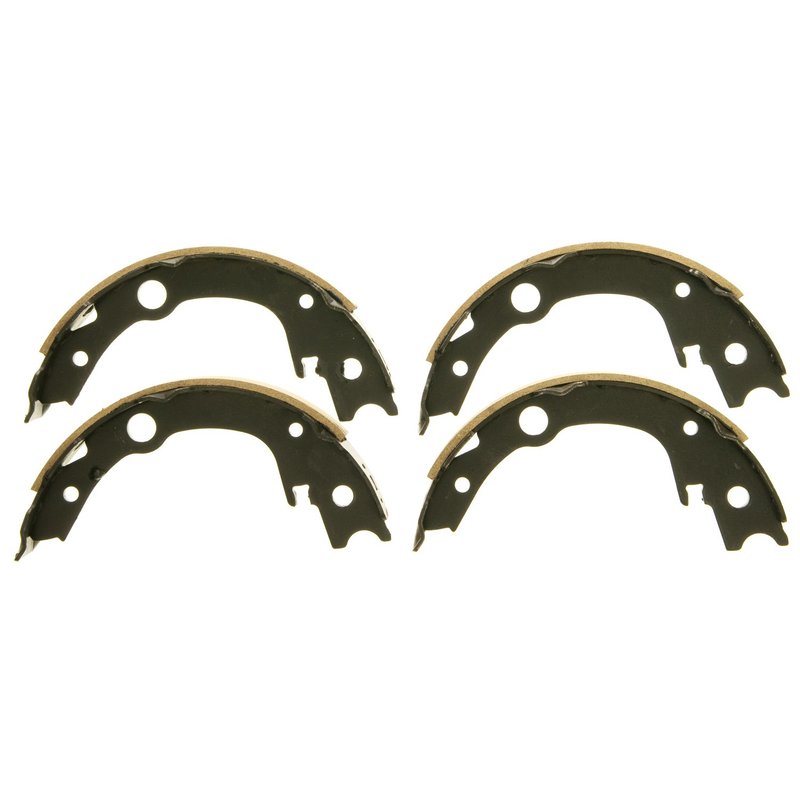

Wagner Brake Z796 Parking Brake Shoe - Rear

Wagner Z796 Parking Brake Shoe for Rear Applications

The Wagner Z796 parking brake shoe is built for rear drum parking brake service on select Toyota, Scion, and Pontiac vehicles. It uses OE-matched friction materials and precision-ground surfaces to promote consistent contact with the brake drum.

Key Features

• OE-matched friction material for parking brake performance
• Precision-ground construction to maximize friction-to-drum contact
• Brake drum diameter: 6.860 in.
• Brake shoe width: 0.787 in.
• Primary brake shoe friction material thickness: 0.147 in.
• FMSI number 1536-S796 for identification and catalog matching

Detailed Description

Wagner Brake Z796 is a rear parking brake shoe engineered for vehicles that use a 6.860-inch brake drum diameter and a 0.787-inch shoe width. The friction material is matched to OE-style requirements, while the precision-ground shoe surface helps maintain even drum contact for stable parking brake engagement. This part number, Z796, is listed for rear fitment on applications including 2005-2010 Scion tC, 2009 Toyota Corolla, 2005-2006 Toyota Corolla, 2003-2008 Toyota Matrix, 2003-2006 Pontiac Vibe, and 2000-2005 Toyota Celica.

Wagner’s brake shoe line focuses on consistent fit and friction characteristics for drum-style parking brake systems. For buyers searching for a rear parking brake shoe for Toyota Corolla, Toyota Matrix, Scion tC, Pontiac Vibe, or Toyota Celica, Z796 provides a direct catalog match for the listed applications. This part cross-references Monroe Shocks & Struts (e.g., BX796) for the same application.

What This Part Helps Address

• Weak or inconsistent parking brake hold
• Parking brake shoe wear from drum contact
• Reduced friction surface engagement in rear drum parking brake systems
• Noise or uneven operation caused by worn shoe material
• Service replacement for rear parking brake maintenance on listed vehicles

Installation Notes and Tips

Confirm rear drum brake dimensions before installation and compare the existing shoe profile to the FMSI 1536-S796 specification. Inspect the brake drum surface for scoring, taper, or excessive wear, since drum condition affects shoe contact and parking brake performance. Verify vehicle fitment by year, make, model, and rear position before ordering. The part number Z796 may also be referenced during catalog lookup and brake service planning.

Quality Assurance

Wagner Brake uses OE-matched friction materials and precision-ground components to support consistent brake shoe fit and contact quality. The Z796 parking brake shoe is identified by FMSI 1536 and steel reference S796 for catalog accuracy and application matching.
