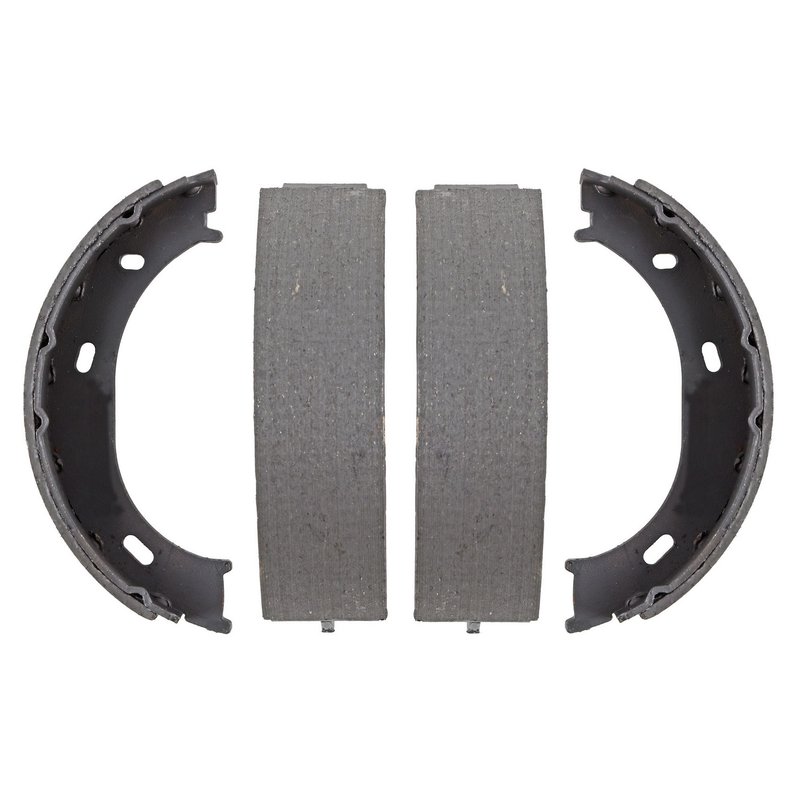

Wagner Brake Z866 Parking Brake Shoe - Rear

Reliable Parking Brake Shoe for Select Dodge and Mercedes-Benz Models

The Wagner Brake Z866 parking brake shoe is engineered to meet the specific braking needs of vehicles like the Dodge Sprinter 2500 and Mercedes-Benz G-Class models including the G55 AMG, G63 AMG, G65 AMG, G500, and G550. Designed with precise dimensions and quality materials, this part ensures consistent parking brake performance.

• FMSI Number: 1590-s866 for exact fitment reference
• Brake Drum Diameter: 6.320 inches for compatibility with designated brake drums
• Brake Shoe Width: 1.540 inches ensuring proper contact and braking force
• Primary Brake Shoe Friction Material Thickness: 0.135 inches for reliable friction and wear resistance
• FMSI Lining Number: 1590 and Steel Number: S866 for standardized replacement parts

About the Wagner Brand Line

Wagner is a recognized brand line specializing in brake components designed to meet OEM specifications. The Wagner parking brake shoes, including the Z866, are manufactured to provide consistent friction material thickness and precise dimensions, ensuring compatibility and dependable braking performance for vehicles requiring FMSI 1590 lining and S866 steel backing.

Detailed Product Description

The Wagner Brake Z866 parking brake shoe is crafted to fit specific Dodge and Mercedes-Benz vehicles, including the Sprinter 2500 and G-Class AMG models. With a brake drum diameter of 6.320 inches and a shoe width of 1.540 inches, this part is engineered to maintain proper contact with the brake drum, delivering effective parking brake engagement. The friction material thickness of 0.135 inches supports consistent braking force and durability under typical operating conditions. The FMSI numbers 1590 for lining and S866 for steel backing provide standardized identification, facilitating accurate replacement and compatibility.

Common Applications and Issues Addressed

• Restores secure parking brake hold on Dodge Sprinter 2500 and Mercedes-Benz G-Class vehicles
• Eliminates brake drag caused by worn or improperly sized brake shoes
• Prevents parking brake slippage on inclines or uneven surfaces
• Reduces noise and vibration associated with degraded brake shoe material
• Ensures consistent brake shoe-to-drum contact for reliable stopping power

Installation Notes and Tips

When installing the Wagner Z866 parking brake shoe, verify the brake drum diameter and shoe width to ensure compatibility. Proper cleaning of the brake assembly and inspection of related hardware is recommended to maintain optimal performance. Follow vehicle-specific service manual instructions for brake shoe replacement to ensure safety and correct adjustment.

Quality Assurance and Warranty

Wagner brake components are manufactured to meet industry standards for durability and performance. The Z866 parking brake shoe undergoes quality control checks to ensure dimensional accuracy and material integrity. Please refer to Wagner's official warranty policy for coverage details.
