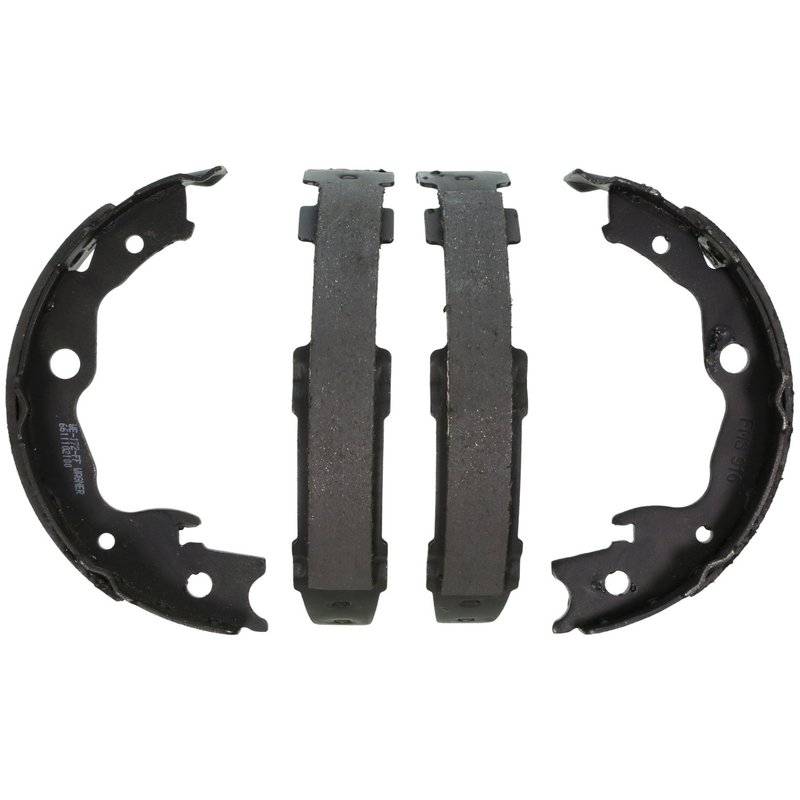

Wagner Brake Z916 Parking Brake Shoe - Rear

Wagner Z916 Parking Brake Shoe Overview

The Wagner Z916 parking brake shoe is built for rear drum parking brake applications that call for OE-matched friction and precise drum contact. It is a direct-fit option for a wide range of Nissan, Toyota, Lexus, and Pontiac rear parking brake setups, including Nissan LEAF, Toyota Camry, and Toyota RAV4 applications.

Wagner Brake’s Wagner line focuses on OE-style replacement parts, and this Z916 shoe follows that approach with friction material selected to match original braking behavior and precision-ground surfaces to help maximize contact with the drum.

Key Features

• OE-matched friction material for consistent parking brake performance
• Precision-ground material surfaces to improve friction-to-drum contact
• Rear parking brake shoe for drum-style parking brake assemblies
• Brake drum diameter: 6.750 in.
• Brake shoe width: 0.787 in.
• Primary brake shoe friction material thickness: 0.170 in.
• FMSI number 1620-S916 for application matching

Detailed Description

The Wagner Z916 parking brake shoe is engineered for rear applications where the parking brake uses a drum-style shoe assembly. With OE-matched friction materials and precision-ground construction, it supports stable engagement and reliable drum contact in vehicles such as the Nissan Sentra, Nissan Rogue, Toyota Camry, Toyota RAV4, and Nissan LEAF. This part number, Z916, also cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.

Use this parking brake shoe when replacing worn rear parking brake components on vehicles that require FMSI 1620 lining with S916 steel backing. The Z916 is a practical OE-style replacement for rear parking brake service on select Nissan, Toyota, Lexus, and Pontiac models.

What It Helps Address

• Weak or inconsistent parking brake hold
• Noise from worn rear parking brake shoes
• Poor drum contact caused by worn friction surfaces
• Reduced parking brake effectiveness on rear drum assemblies
• Service replacement for worn OE-style parking brake shoes

Installation Notes and Tips

Verify drum diameter, shoe width, and FMSI match before installation. This part is for rear parking brake applications only and should be installed on vehicles listed in the fitment data, including Fits 2020-2025 Nissan LEAF, rear; Fits 2022-2024 Toyota Camry, rear; and Fits 2006-2018 Toyota RAV4, rear. Inspect the drum surface and related parking brake components for wear before assembly, and confirm proper shoe seating and adjustment after installation. The part number Z916 may also be referenced during catalog lookup for Nissan Sentra and Toyota Camry rear parking brake service.

Quality Assurance

Wagner Brake uses OE-matched friction materials and precision-ground manufacturing methods to support consistent brake performance and drum contact. The Wagner Z916 is identified with FMSI 1620-S916, helping confirm application accuracy for rear parking brake shoe replacement.
