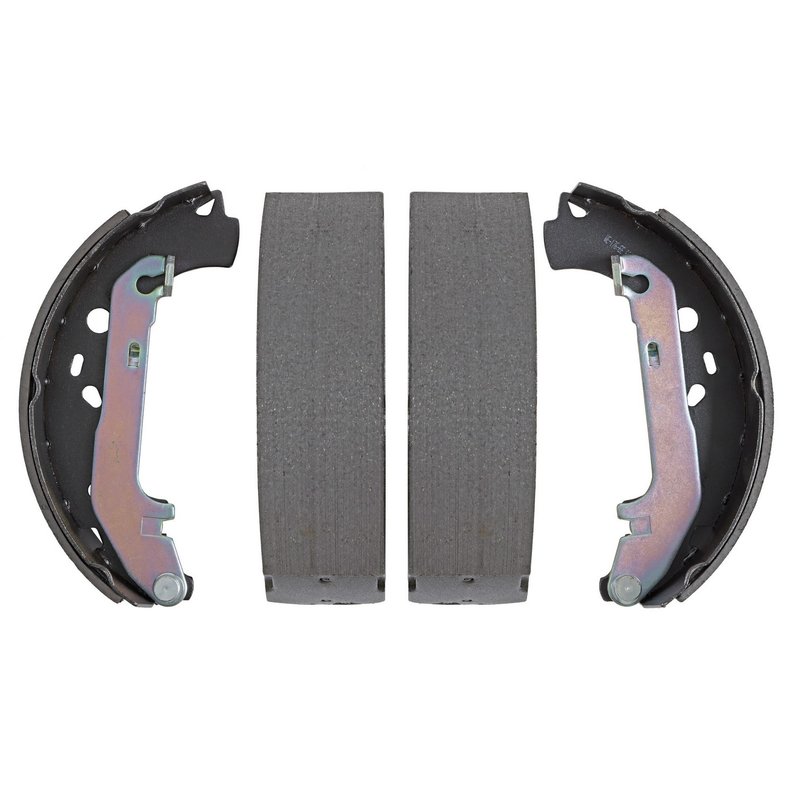

Wagner Brake Z974 Drum Brake Shoe - Rear

Reliable Drum Brake Shoes for Ford Transit Connect

The Wagner Brake Z974 drum brake shoe is designed specifically for the Ford Transit Connect, providing consistent braking performance and durability. Engineered with organic friction material and bonded attachment, this brake shoe ensures smooth and reliable stopping power.

• Brake shoe width: 2.180 inches
• Organic friction material for quieter operation
• Brake drum diameter compatibility: 9.000 inches
• Includes parking brake levers (quantity: 2)
• Primary and secondary friction material thickness: 0.190 and 0.200 inches
• FMSI numbers: 1651-s974 (steel), 1651 (lining)
• Mounting hardware not included

Wagner Brand Line Overview

The Wagner brand line focuses on delivering dependable brake components with precise fitment and quality materials. The Z974 drum brake shoe is part of this line, featuring bonded organic friction material designed to meet the braking demands of the Ford Transit Connect. Wagner's approach emphasizes consistent friction performance and durability in drum brake applications.

Product Details and Specifications

This Wagner Z974 brake shoe is constructed with bonded organic friction material, which helps reduce noise and provides smooth engagement. The brake shoe width measures 2.180 inches, fitting brake drums with a diameter of 9.000 inches. Both primary and secondary brake shoe friction material thicknesses are specified at 0.190 and 0.200 inches respectively, ensuring balanced wear and braking efficiency. The product includes two parking brake levers, enhancing parking brake functionality. Note that mounting hardware is not included and must be sourced separately.

Common Applications and Problem Solving

• Replacement for worn or damaged drum brake shoes on Ford Transit Connect
• Restores proper braking performance and pedal feel
• Addresses brake noise caused by degraded friction material
• Improves parking brake engagement with included levers
• Helps prevent uneven brake wear and potential brake fade

Installation Notes and Tips

Ensure compatibility with Ford Transit Connect brake drum diameter of 9.000 inches before installation. Since mounting hardware is not included, inspect existing hardware for wear and replace if necessary. Properly align the parking brake levers included with the brake shoes to maintain parking brake functionality. Follow manufacturer torque specifications and safety procedures during installation.

Quality Assurance and Warranty

Wagner brake components are manufactured to meet industry standards for fit and function. The Z974 drum brake shoe undergoes quality control to ensure consistent friction material thickness and bonding integrity. While specific warranty details are not provided, Wagner products typically come with a limited warranty against defects in materials and workmanship.
