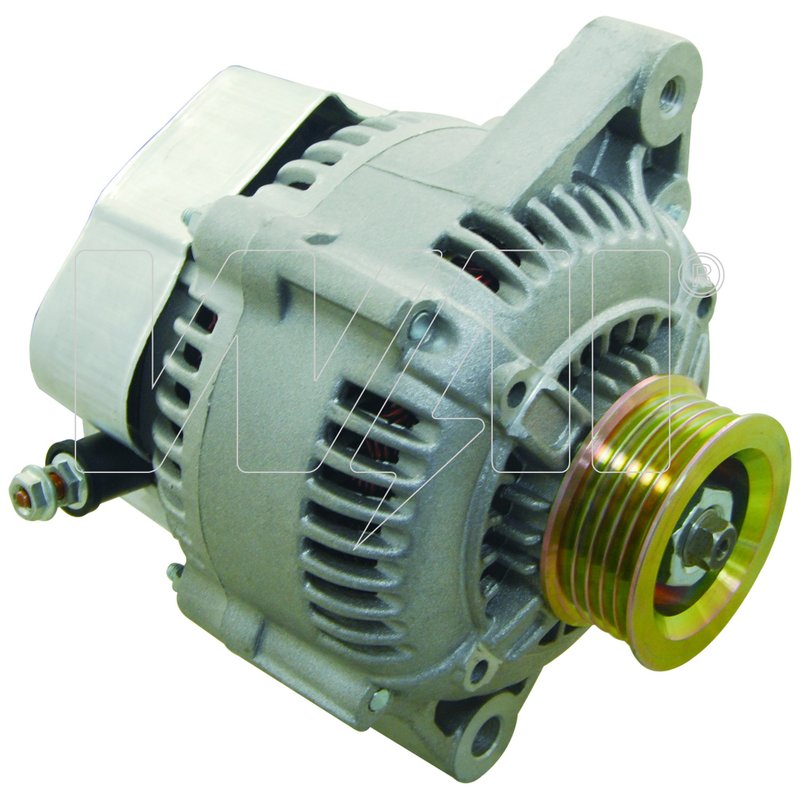

WAI 14849N Alternator

WAI 14849N Alternator for Toyota Camry

The WAI 14849N alternator is a 70 amp, 100% new replacement built for charging performance in select Toyota Camry applications. It uses an internal regulator, internal fan, and clockwise rotation with a serpentine pulley to match the specified Denso-style setup.

Key Features

• 70 amp amperage rating for standard charging output
• 100% new unit, not remanufactured
• Internal regulator and internal fan design
• Clockwise (right) rotation
• 5-groove pulley included for serpentine belt systems
• Denso family alternator configuration

Product Details

This WAI alternator, part number 14849N, is engineered for vehicles that require a Denso unit with 70 amp output. It is listed for 1988 Toyota Camry, Denso Unit 70 Amp, Std., 2nd Production, and 1989-1991 Toyota Camry, Denso Unit 70 Amp, Std. The design includes an internal regulator and pulley already installed, helping match the original charging system layout on these Toyota Camry applications. This part cross-references BBB Industries 14611 and 14849 for the same application.

What It Helps Address

• Low battery charging caused by a weak alternator
• Battery warning light concerns related to charging output
• Dim lights or electrical load issues at idle
• Charging system failure on Toyota Camry models with Denso 70 amp units
• Noise or belt-drive issues tied to a worn alternator assembly

Installation Notes and Tips

Verify the vehicle uses a Denso-style 70 amp alternator with clockwise rotation and a 5-groove serpentine pulley before installation. Confirm connector style, mounting points, and belt alignment against the original unit on the Toyota Camry. Because this alternator uses an internal regulator, make sure the charging circuit and wiring are in proper condition before final testing.

Quality Assurance

WAI builds this alternator as a new replacement unit using proprietary components and manufacturing processes to support service life and charging performance. The 14849N is made for direct-fit applications that require the specified Denso configuration on 1988-1991 Toyota Camry models.
