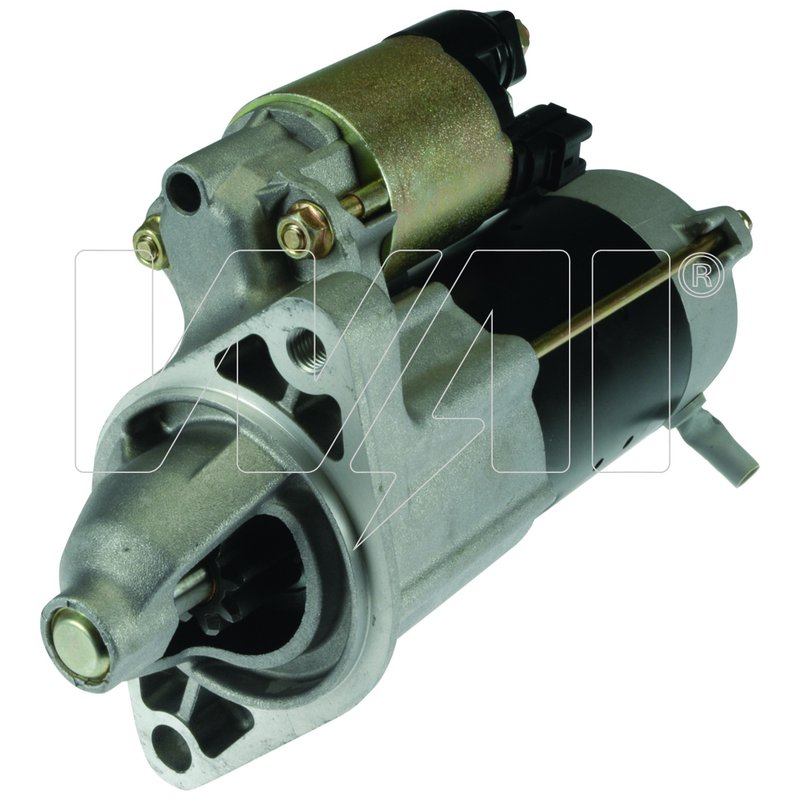

WAI 17806N Starter
| Brand | WAI 17806N |
|---|---|
| 12 | 12 |
| Design | Planetary gear reduction |
| Family | Denso |
| Power Rating | 1 |
| Starter Rotation | Clockwise (right) |
| Tooth Quantity | 9 |
| Mounting Type | Flange |
| Fits | Toyota · 13 vehicles |
100% new unit. Not remanufactured, with proprietary components and processes for long life and performance.
Planetary gear reduction. Delivers efficient starting power in a compact starter design.
Flange mount design. A straightforward starter configuration for secure installation.
Cross-references BBB Industries 17805, Quality-Built 17806 and 28100-21020 for the same application. See all 18.
Starter for Toyota Echo and Yaris
The WAI 17806N starter is a direct-fit electrical starting component for select Toyota Echo and Toyota Yaris applications. Built as a 100% new unit, it uses a planetary gear reduction design to deliver the amp output needed for modern vehicles and consistent cranking performance.
- Part number: 17806N
- 12V starter with 1.0 kW power rating
- Planetary gear reduction design for efficient starting torque
- Clockwise (right) rotation
- 9-tooth drive gear
- Flange mounting type
- DENSO family application
Fitment Details
- Fits 2012 Toyota Yaris, N/A; equipped with Denso 0.8 kW, supplied as Denso 1.0 kW.
- Fits 2006-2011 Toyota Yaris, N/A.
- Fits 2003-2005 Toyota Echo, N/A; standard, equipped with Denso 0.8 kW, supplied as Denso 1.0 kW.
- Fits 2000-2002 Toyota Echo, N/A.
Product Overview
WAI engineers this starter to meet the electrical demands of today’s vehicles with a new-unit construction rather than remanufactured components. The 17806N is built around DENSO-style fitment and the specified 12V, 1.0 kW configuration, making it a practical replacement for Toyota Echo and Toyota Yaris models that use the listed starter setup. This part cross-references BBB Industries 17805 and Quality-Built 17806 for the same application.
Common Starting Issues It Can Address
- Slow or weak engine cranking
- No-crank condition when the battery and cables test good
- Intermittent starter engagement
- Grinding or inconsistent starter drive operation
- Starting problems tied to worn internal starter components
Installation Notes and Tips
Verify the vehicle’s original starter specifications before installation, including 12V system voltage, clockwise rotation, 9-tooth drive count, flange mount, and DENSO family match. Confirm the application notes for 2003-2005 Toyota Echo and 2012 Toyota Yaris, since those listings reference Denso 0.8 kW units supplied as Denso 1.0 kW replacements. Inspect battery condition, cable integrity, and charging-system output during replacement to help avoid repeat starting complaints.
Quality Assurance
WAI states that this starter is 100% new and manufactured with proprietary components and processes to support long service life and consistent performance.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Toyota | Yaris | Manual | N/A | Equipped with Denso 0.8 kW, Supplied as Denso 1.0 kW |
| 2011 | Toyota | Yaris | Manual | N/A | — |
| 2010 | Toyota | Yaris | Manual | N/A | — |
| 2009 | Toyota | Yaris | Manual | N/A | — |
| 2008 | Toyota | Yaris | Manual | N/A | — |
| 2007 | Toyota | Yaris | Manual | N/A | — |
| 2006 | Toyota | Yaris | Manual | N/A | — |
| 2005 | Toyota | Echo | — | N/A | Std, Equipped with Denso 0.8 kW, Supplied as Denso 1.0 kW |
| 2004 | Toyota | Echo | — | N/A | Std, Equipped with Denso 0.8 kW, Supplied as Denso 1.0 kW |
| 2003 | Toyota | Echo | — | N/A | Std, Equipped with Denso 0.8 kW, Supplied as Denso 1.0 kW |
| 2002 | Toyota | Echo | — | N/A | — |
| 2001 | Toyota | Echo | — | N/A | — |
| 2000 | Toyota | Echo | — | N/A | — |
