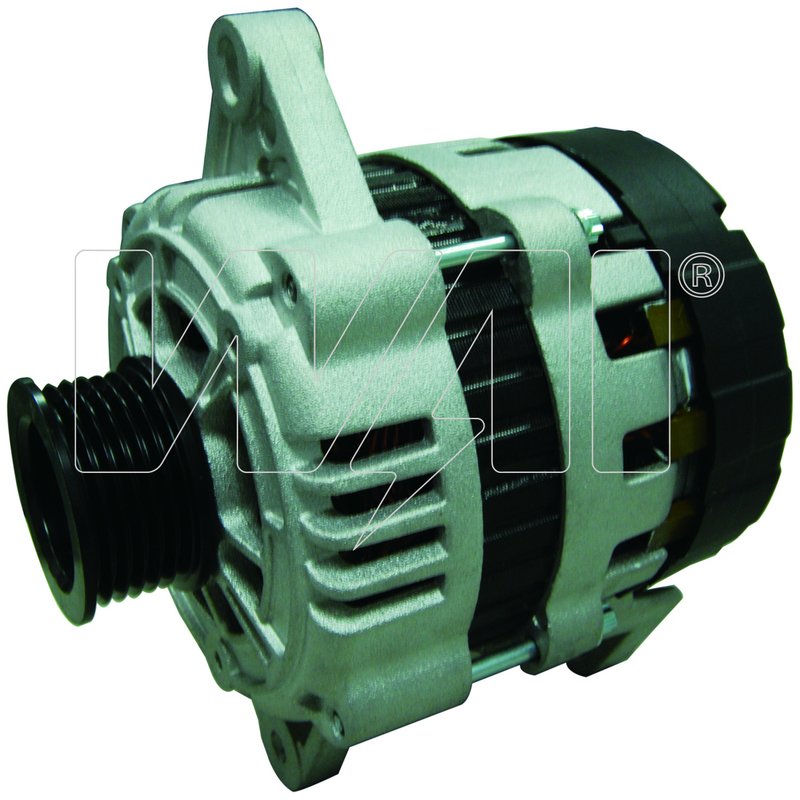

WAI 8483N-3P Alternator

WAI 8483N-3P Alternator for Select GM and Suzuki Applications

The WAI 8483N-3P is a 100% new alternator built to deliver the amperage needed for modern vehicle electrical loads. It is engineered with proprietary components and processes for consistent output, long service life, and dependable charging performance.

Key Features

• 85 amp alternator for stable charging output
• 100% new unit, not remanufactured
• Internal fan and internal voltage regulator
• Clockwise rotation
• 6-groove pulley included for serpentine belt systems
• DELCO family design
• 12-volt electrical system

Product Details

This WAI alternator, part number 8483N-3P, is built for vehicles that require a 3 pin voltage regulator connection. It is a direct-fit charging component for select Chevrolet Aveo and Aveo5, Pontiac Wave, and Suzuki Swift and Swift+ applications. The 8483N-3P uses an internal regulator, internal cooling fan, and included pulley to match the specified OE-style configuration.

This part cross-references AP Exhaust 8483 for the same application.

Vehicle Fitment

• Fits 2004-2008 Chevrolet Aveo, with 3 pin voltage regulator
• Fits 2006-2008 Chevrolet Aveo5, with 3 pin voltage regulator
• Fits 2005-2008 Pontiac Wave, with 3 pin voltage regulator
• Fits 2007-2008 Suzuki Swift, Mexico
• Fits 2004-2008 Suzuki Swift+, with 3 pin voltage regulator

Common Uses

• Restores charging output when the battery warning light stays on
• Addresses low-voltage conditions caused by alternator wear
• Replaces a noisy or failing charging unit
• Supports electrical accessories that need steady system voltage
• Corrects charging issues on Chevrolet Aveo, Aveo5, Pontiac Wave, and Suzuki Swift applications

Installation Notes

Verify the vehicle uses a 3 pin voltage regulator before ordering. Confirm pulley style, 6-groove serpentine belt setup, clockwise rotation, and 12-volt system requirements against the original unit. Check connector shape and mounting points during replacement, and inspect the belt and charging circuit before installing the new alternator. Part number 8483N-3P should be matched to the vehicle’s OE configuration for proper fitment.

Quality Assurance

WAI alternators are manufactured as new units using proprietary components and processes to support maximum life and performance. The 8483N-3P is built to meet the amperage demands of today’s vehicles while maintaining consistent charging output.
