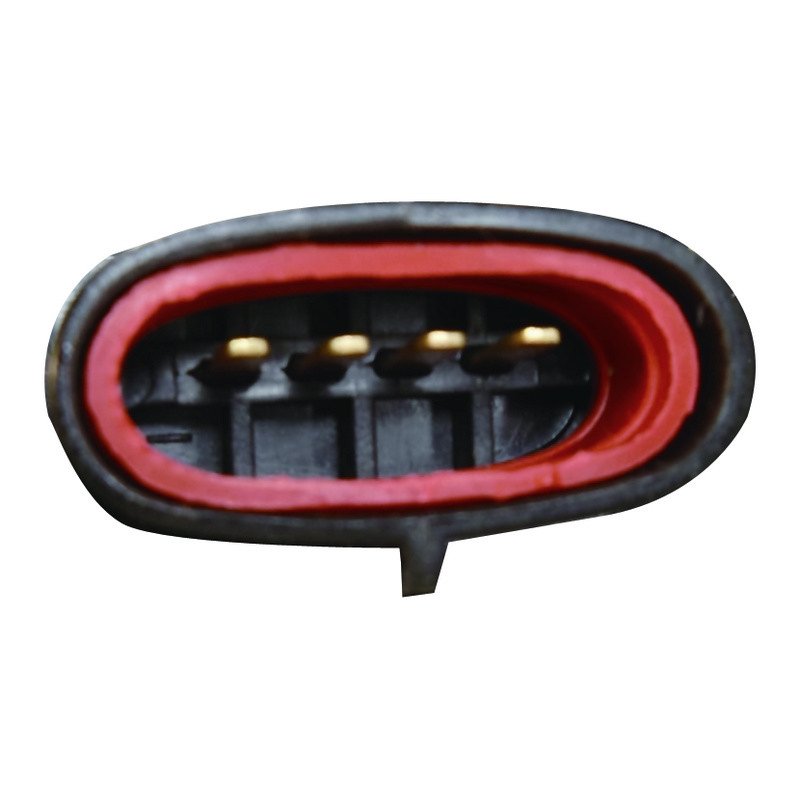

WAI CFD480 Ignition Coil

Brand WAI CFD480
Fits Ford, Mazda, and Mercury · 113 vehicles

OE-style replacement. Built to meet or exceed OE manufacturing and performance specifications.

Precision engineered. High-grade materials support consistent fit and dependable ignition performance.

Limited lifetime warranty. Backed by WAI for added confidence after installation.

Cross-references 90TF-12029-A1A, 0986MG2207 and 420009 for the same application. See all 13.

$61.12Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $61.12
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Overview

WAI CFD480 ignition coil is built as a direct-fit replacement for a wide range of Ford, Mazda, and Mercury applications. It is engineered to meet or exceed OE manufacturing and performance specifications, with fit and performance focused on straightforward service replacement.

Key Features

  • Direct-fit ignition coil for OE-style replacement
  • Precision-engineered construction for consistent spark output
  • Manufactured with high-grade materials for durability
  • Designed for easy installation in supported applications
  • Limited lifetime warranty from WAI

Detailed Description

The WAI CFD480 ignition coil is a replacement ignition component for Ford Ranger, Ford Explorer, Ford Mustang, Mercury Mountaineer, Mazda B4000, Mazda B3000, Mazda 626, and Mazda Navajo applications listed in the fitment data. Built to OE manufacturing and performance specifications, this ignition coil is intended to restore proper ignition function when the original coil is worn, weak, or failing. The CFD480 part number is also referenced in interchange listings for related OE and aftermarket applications, and the CFD480 designation should be verified against the vehicle’s exact fitment details before installation.

What It Helps Solve

  • Misfire conditions caused by a weak ignition coil
  • Hard starting related to inconsistent spark delivery
  • Rough idle from degraded ignition performance
  • Loss of engine power from coil output deterioration
  • Check engine light concerns tied to ignition faults

Installation Notes and Tips

Confirm the vehicle’s year, make, model, and connector configuration before ordering. Fitment includes applications with standard and horizontal connector notes, so match the existing coil layout to the vehicle specification. Use the CFD480 part number during verification to avoid ordering errors. Professional installation and system diagnosis are recommended when replacing ignition components.

Quality Assurance

WAI backs this ignition coil with a limited lifetime warranty. The CFD480 is manufactured to OE-level specifications using high-grade materials for fit and service life.

This part fits 113 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2011FordRanger4.0LV6—
2010FordRanger4.0LV6—
2010MercuryMountaineer4.0LV6—
2009FordExplorer4.0LV6—
2009FordMustang4.0LV6—
2009FordRanger4.0LV6—
2009MazdaB4000———
2009MercuryMountaineer4.0LV6—
2008FordExplorer4.0LV6—
2008FordMustang4.0LV6—
2008FordRanger4.0LV6—
2008MazdaB4000———
2008MercuryMountaineer4.0LV6—
2007FordExplorer4.0LV6—
2007FordMustang4.0LV6—
2007FordRanger4.0LV6—
2007MazdaB4000———
2007MercuryMountaineer4.0LV6—
2006FordExplorer4.0LV6—
2006FordMustang4.0LV6—
2006FordRanger4.0LV6—
2006MazdaB4000———
2006MercuryMountaineer4.0LV6—
2005FordExplorer4.0LV6—
2005FordMustang4.0LV6—
2005FordRanger4.0LV6—
2005MazdaB4000———
2005MercuryMountaineer4.0LV6—
2004FordExplorer4.0LV6—
2004FordExplorer Sport Trac———
2004FordRanger4.0LV6—
2004MazdaB4000———
2004MercuryMountaineer4.0LV6—
2003FordExplorer4.0LV6—
2003FordExplorer Sport Trac———
2003FordRanger4.0LV6—
2003MazdaB4000———
2003MercuryMountaineer4.0LV6—
2002FordExplorer4.0LV6—
2002FordExplorer Sport Trac———
2002FordRanger4.0LV6—
2002Mazda6262.5LV6—
2002MazdaB4000———
2002MercuryMountaineer4.0LV6—
2001FordExplorer4.0LV6—
2001FordExplorer Sport Trac———
2001FordRanger4.0LV6—
2001Mazda6262.5LV6—
2001MazdaB4000———
2001MercuryMountaineer4.0LV6—
2000FordExplorer4.0LV6—
2000FordRanger3.0LV6Horizontal Conn.
2000Mazda6262.5LV6—
2000MazdaB3000——Horizontal Conn.
2000MazdaB4000———
2000MercuryMountaineer4.0LV6—
1999FordExplorer4.0LV6—
1999FordRanger3.0LV6Horizontal Conn.
1999Mazda6262.5LV6—
1999MazdaB3000——Horizontal Conn.
1999MazdaB4000———
1999MercuryMountaineer4.0LV6—
1998FordExplorer4.0LV6—
1998FordRanger3.0LV6Horizontal Conn.
1998Mazda6262.5LV6—
1998MazdaB3000——Horizontal Conn.
1998MazdaB4000———
1998MercuryMountaineer4.0LV6—
1997FordAerostar3.0LV6—
1997FordE-150 Econoline4.2LV6—
1997FordE-150 Econoline Club Wagon4.2LV6—
1997FordE-250 Econoline4.2LV6—
1997FordExplorer4.0LV6—
1997FordF-1504.2LV6—
1997FordRanger3.0LV6—
1997MazdaB3000———
1997MazdaB4000———
1996FordAerostar3.0LV6—
1996FordExplorer4.0LV6—
1996FordRanger3.0LV6—
1996MazdaB3000———
1996MazdaB4000———
1995FordAerostar3.0LV6—
1995FordExplorer———
1995FordRanger3.0LV6—
1995FordTaurus3.2LV6—
1995MazdaB3000———
1995MazdaB4000———
1994FordAerostar4.0LV6—
1994FordExplorer———
1994FordRanger4.0LV6—
1994FordTaurus3.2LV6—
1994MazdaB4000———
1994MazdaNavajo———
1993FordAerostar4.0LV6—
1993FordExplorer———
1993FordRanger4.0LV6—
1993FordTaurus3.2LV6—
1993MazdaNavajo———
1992FordAerostar4.0LV6—
1992FordExplorer———
1992FordRanger4.0LV6—
1992FordTaurus3.0LV6—
1992MazdaNavajo———
1991FordAerostar4.0LV6—
1991FordExplorer———
1991FordRanger4.0LV6—
1991FordTaurus3.0LV6—
1991MazdaNavajo———
1990FordAerostar4.0LV6—
1990FordRanger4.0LV6—
1990FordTaurus3.0LV6—
1989FordTaurus3.0LV6—
Directly replaces or cross-references 13 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
90TF-12029-A1A0986MG2207420009603001E9DZ-12029-AF0TZ-12029-AF1DU-12029-AAF1DZ-12029-AF57U-12029-AAFF179CKLG4-18-100KLG4-18-100AZZM7-18-100
