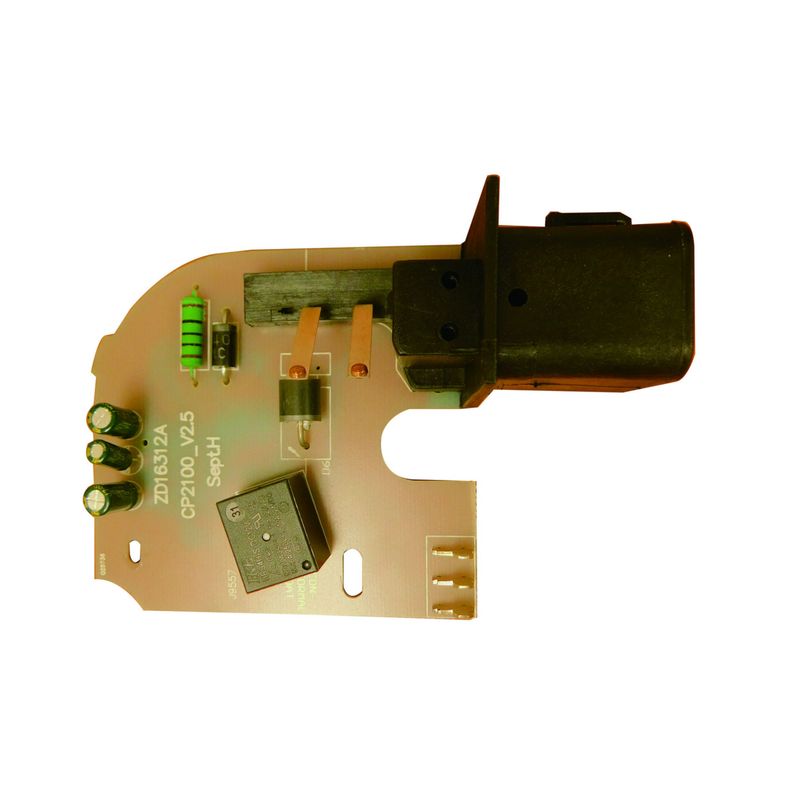

WAI WPM158PB Wiper Motor Pulse Board - view 1

WAI WPM158PB Wiper Motor Pulse Board - view 2

WAI WPM158PB Wiper Motor Pulse Board - view 3

WAI WPM158PB Wiper Motor Pulse Board - view 4

WAIPart #: WPM158PB

WAI WPM158PB Wiper Motor Pulse Board

Name: WAI WPM158PB Wiper Motor Pulse Board
Brand: WAI
SKU: HGWL-WPM158PB
Price: 25.64 USD
Availability: InStock

⚙️ 383 vehicles fit this part

🔍

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

$25.64Free Shipping

🚚Free ShippingNo Cost to Continental U.S.

🔄Free Returns*Wrong fit? No cost

🛡️60-Day ReturnsMoney back guarantee

*Free return shipping only qualifies if our fitment verification tool is used.

🔥

✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.

✅OE Direct Replacement — Bolt-on fit, no modifications needed

🚗Fitment: Cadillac, Chevrolet, GMC, Isuzu, Oldsmobile, and Pontiac, Astro, Blazer, Bravada, C1500, C1500 Suburban, C2500, C2500 Suburban, C35, C3500, Escalade, G10, G1500, G20, G2500, G30, G3500, Hombre, Jimmy, K1500, K1500 Suburban, K2500, K2500 Suburban, K3500, Lumina APV, Lumina Van, P30, P3500, S10, Safari, Silhouette, Silverado, Sonoma, Tahoe, Trans Sport, and Yukon

🔄Easy Returns — Return within 60 days for a full refund

🚚Fast Shipping — Most orders ship same business day before 1pm CST

Not what you need? Click here for all Wiper Motor Pulse Board options

Wiper Motor Pulse Board for GM Applications

The WAI WPM158PB is a new wiper motor pulse board built for direct replacement in a wide range of GM vehicles. It is engineered to meet or exceed OE manufacturing and performance specifications, with a 5-terminal blade-style design for straightforward service on the correct application.

Use this WAI WPM158PB when you need a precise electrical control component for the wiper motor system in vehicles such as Chevrolet Astro, GMC Safari, and Chevrolet Tahoe. The part number WPM158PB is also a useful reference when verifying the correct replacement for GM trucks, SUVs, and vans.

Key Features

New wiper motor pulse board
5 blade terminals
Male connector and male terminal design
Direct-fit replacement for listed applications
Built to OE manufacturing and performance specifications
No cover included

Detailed Description

This WAI pulse board is a control module component used in the wiper motor assembly to manage wiper operation. It is manufactured with high-grade materials and precision engineering to support proper fit and consistent electrical performance in the intended vehicle applications. The WPM158PB is a practical replacement choice for owners servicing GM platforms that use this style of wiper motor control board, including Chevrolet Blazer, GMC Sonoma, and Oldsmobile Bravada.

This part cross-references GM 12463017 and 12463090 for the same application.

What It Helps Fix

Intermittent or non-functioning windshield wipers
Wipers that stop at the wrong position
Erratic wiper speed control
Loss of pulse or intermittent wipe function
Electrical failure within the wiper motor control circuit

Installation Notes and Tips

Verify terminal count, connector gender, and blade-style layout before installation.
Confirm the vehicle uses the listed wiper motor pulse board application for the exact year and model.
Inspect the wiper motor assembly and related wiring for corrosion or damage before replacing the board.
Fits 1994-2005 Chevrolet Astro, N/A.
Fits 1994-2005 GMC Safari, N/A.
Fits 1992-2004 Chevrolet Blazer, N/A.
Fits 1994-2004 Chevrolet S10, N/A.
Fits 1994-2004 GMC Sonoma, N/A.
Fits 1995-2001 GMC Jimmy, N/A.
Fits 1996-2001 Oldsmobile Bravada, N/A.
Fits 1999-2000 Cadillac Escalade, N/A.
Fits 1988-2000 Chevrolet C2500, N/A.
Fits 1988-2000 Chevrolet C35, N/A.
Fits 1988-2000 Chevrolet C3500, N/A.
Fits 1988-2000 Chevrolet K2500, N/A.
Fits 1988-2000 Chevrolet K3500, N/A.
Fits 1995-2000 Chevrolet Tahoe, N/A.
Fits 1988-2000 GMC C2500, N/A.
Fits 1988-2000 GMC C3500, N/A.
Fits 1988-2000 GMC K2500, N/A.
Fits 1988-2000 GMC K3500, N/A.
Fits 1992-2000 GMC Yukon, N/A.
Fits 1996-2000 Isuzu Hombre, N/A.
Fits 1988-1999 Chevrolet C1500, N/A.
Fits 1992-1999 Chevrolet C1500 Suburban, N/A.
Fits 1992-1999 Chevrolet C2500 Suburban, N/A.
Fits 1988-1999 Chevrolet K1500, N/A.
Fits 1992-1999 Chevrolet K1500 Suburban, N/A.
Fits 1992-1999 Chevrolet K2500 Suburban, N/A.
Fits 1988-1999 GMC C1500, N/A.
Fits 1992-1999 GMC C1500 Suburban, N/A.
Fits 1992-1999 GMC C2500 Suburban, N/A.
Fits 1992-1999 GMC K1500, N/A.
Fits 1992-1999 GMC K1500 Suburban, N/A.
Fits 1992-1999 GMC K2500 Suburban, N/A.
Fits 1995-1997 Chevrolet Silverado, N/A.
Fits 1992-1996 Chevrolet G30, N/A.
Fits 1990-1996 Chevrolet Lumina APV, N/A.
Fits 1995-1996 Chevrolet Lumina Van, N/A.
Fits 1991-1996 Chevrolet P30, N/A.
Fits 1992-1996 GMC G3500, N/A.
Fits 1991-1996 GMC P3500, N/A.
Fits 1990-1996 Oldsmobile Silhouette, N/A.
Fits 1990-1996 Pontiac Trans Sport, N/A.
Fits 1992-1995 Chevrolet G10, N/A.
Fits 1992-1995 Chevrolet G20, N/A.
Fits 1992-1995 GMC G1500, N/A.
Fits 1992-1995 GMC G2500, N/A.

Quality Assurance

WAI manufactures this pulse board as a 100% new replacement part using high-grade materials and precision engineering. It is backed by a limited lifetime warranty.

Brand	WAI
Part Number	WPM158PB
Terminal Type	Blade
Terminal Quantity	5
Connector Gender	Male
Terminal Gender	Male
COVER INCLUDED	No
NEW OR REMANUFACTURED	New

This part fits 383 vehicles. Search below:
