WAI WPM6049 Wiper Motor - Rear
| Brand | WAI WPM6049 |
|---|---|
| Position | Rear |
| Wiring Harness Length | 7.88 |
| Wire Quantity | 4 |
| Mounting Hole Quantity | 3 |
| Terminal Quantity | 4 |
| Washer Pump Included | No |
| Connector Gender | Female |
| Terminal Gender | Female |
| Wiring Harness Included | Yes |
| SPECS | Rear wiper motor |
| Fits | Pontiac and Toyota · 12 vehicles |
OE-spec replacement. Direct fit for easy installation.
100% new construction. Precision engineered with high-grade materials.
Tested to OE specs. Form, fit, and function are verified.
Cross-references 85130-01020, 85130-12840 and 88969928 for the same application. See all 4.
Rear Wiper Motor for Matrix and Vibe
The WAI WPM6049 is a rear wiper motor built for direct replacement on select Pontiac Vibe and Toyota Matrix models. It is 100% new and tested to OE specifications for form, fit, and function, making it a practical choice for restoring rear window wiping performance.
Key Features
- Rear wiper motor for rear hatch applications
- 100% new construction
- Tested to OE specs for form, fit, and function
- Direct-fit design for easier installation

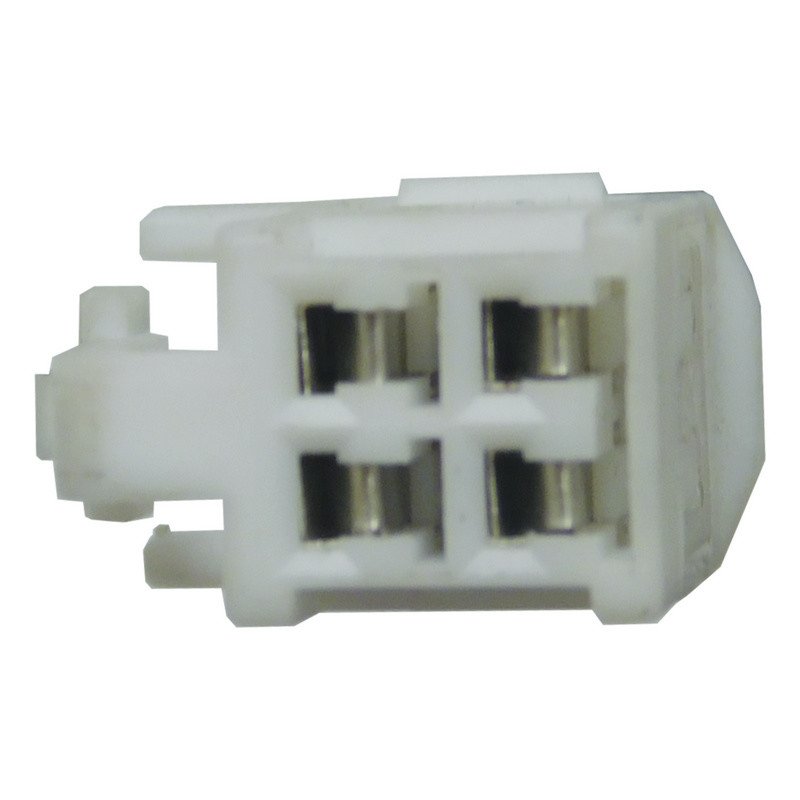

- Female connector and female terminals
- Wiring harness included
- Precision-engineered with high-grade materials for fit and service life
Product Details
Built by WAI, part number WPM6049 is designed to meet or exceed OE manufacturing and performance specifications for the rear wiper system. It uses a 4-wire configuration, 4 terminals, a 7.88-inch wiring harness length, and a 3-hole mounting pattern. This rear wiper motor is a direct replacement for 2003-2008 Pontiac Vibe, rear, wiper motor only, and 2003-2008 Toyota Matrix, rear, wiper motor only. This part cross-references OE numbers 85130-01020 and 85130-12840 for the same application.
Common Problems It Can Help Solve
- Rear wiper blade does not move
- Intermittent or weak rear wiper operation
- Rear wiper motor noise without blade movement
- Rear glass visibility reduced by a nonfunctioning rear wiper
- Failure caused by worn internal motor components
Installation Notes
Verify connector style, terminal count, mounting hole layout, and rear hatch application before installation. This WPM6049 rear wiper motor is intended for vehicles listed in the fitment data and should be matched to the rear position only. Confirm the existing harness and mounting points on your Pontiac Vibe or Toyota Matrix before replacing the original unit.
Quality Assurance
WAI manufactures this wiper motor as a 100% new replacement part and tests it to OE specifications for form, fit, and function. The WPM6049 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Pontiac | Vibe | Rear | Wiper Motor Only |
| 2008 | Toyota | Matrix | Rear | Wiper Motor Only |
| 2007 | Pontiac | Vibe | Rear | Wiper Motor Only |
| 2007 | Toyota | Matrix | Rear | Wiper Motor Only |
| 2006 | Pontiac | Vibe | Rear | Wiper Motor Only |
| 2006 | Toyota | Matrix | Rear | Wiper Motor Only |
| 2005 | Pontiac | Vibe | Rear | Wiper Motor Only |
| 2005 | Toyota | Matrix | Rear | Wiper Motor Only |
| 2004 | Pontiac | Vibe | Rear | Wiper Motor Only |
| 2004 | Toyota | Matrix | Rear | Wiper Motor Only |
| 2003 | Pontiac | Vibe | Rear | Wiper Motor Only |
| 2003 | Toyota | Matrix | Rear | Wiper Motor Only |
