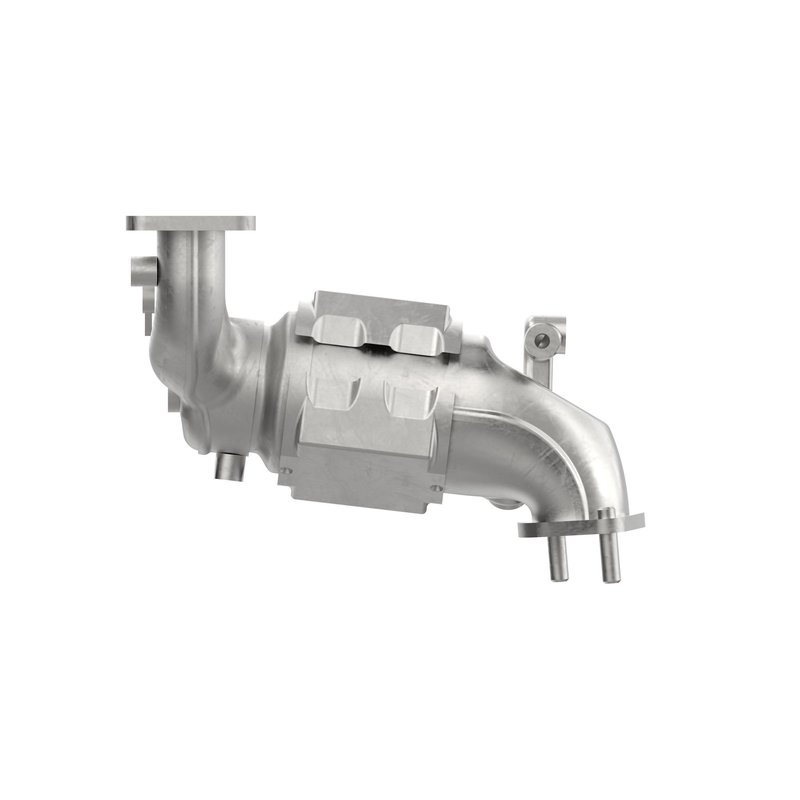

Walker 14734 Catalytic Converter with Integrated Exhaust Manifold
| Brand | Walker 14734 |
|---|---|
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Converter Body Length | 4.500 |
| Body Shape | Round |
| Inlet Type | 7 bolt welded flange |
| Outlet Type | 2 bolt welded flange |
| Body Height | 4.000 |
| Body Width | 4.000 |
| Heat Shield Attached | Yes |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| California Air Resources Board (CARB) Certified | No |
| Substrate Material | Ceramic |
| Converter Quantity | 1 |
| Inlet Gasket Included | Yes |
| Inlet Mounting Hardware Included | No |
| Outlet Mounting Hole Quantity | 1 |
| Outlet Gasket Included | No |
| Outlet Mounting Hardware Included | No |
| Overall Length | 15.65 |
| Sensor Port Count | 2 |
| Converter Body Material | Stainless steel |
| New York Certified | No |
| Outlet Port Shape | Round |
| Inlet Port Shape | Round |
| Heat Shield Material | Stainless steel |
| Oxygen Sensor Location | Pre and post converter |
| Body Material | Stainless steel |
| Inlet Gasket | Yes |
| Inlet Gasket Qty | 1 |
| Product line | EPA |
| Fits | Hyundai · 2 vehicles |
Direct-fit design. Built for specific-fit exhaust service with an integrated manifold layout.
Stainless steel construction. Body and heat shield use stainless steel for added corrosion resistance.
Ceramic substrate. Supports catalytic performance with pre- and post-converter sensor ports.
Cross-references 22-086 and 285102GCA0 for the same application. See all 2.
Overview
Walker EPA 14734 is a direct-fit catalytic converter with integrated exhaust manifold for specific Hyundai applications. It is built for OBDII vehicles and is engineered to meet EPA standards while maintaining premium performance.
Fits 2017-2018 Hyundai Santa Fe Sport, N/A.
Key Features
- Premium-grade catalytic converter with integrated exhaust manifold design
- Stainless steel body and stainless steel heat shield for added durability
- Ceramic substrate for emissions control performance
- 7-bolt welded flange inlet and 2-bolt welded flange outlet
- Pre- and post-converter oxygen sensor ports
- Inlet gasket included
Detailed Description
Walker EPA 14734 is a specific-fit exhaust emissions component for the Hyundai Santa Fe Sport. The round stainless steel body measures 15.65 inches overall and uses a ceramic substrate to support catalytic function, while the integrated manifold layout and welded flange connections help match the original exhaust configuration. This part cross-references 22-086 and 285102GCA0 for the same application.
What It Helps Address
- Failed catalytic converter emissions testing
- Exhaust leaks at the manifold or flange connection
- Check engine light concerns related to catalyst efficiency
- Damaged heat shielding around the converter assembly
- Sensor port mismatch on replacement exhaust service
Installation Notes
Confirm the 7-bolt inlet and 2-bolt outlet configuration before installation. This unit includes the inlet gasket only; inlet hardware, outlet gasket, and outlet hardware are not included. Verify oxygen sensor port placement and exhaust alignment during installation.
Quality Assurance
Walker EPA 14734 is designed to comply with EPA standards for import and domestic OBDII vehicles. The Walker Ultra Direct-Fit line focuses on direct-fit replacement construction for emissions service.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2018 | Hyundai | Santa Fe Sport | 2.4L | L4 | EPA |
| 2017 | Hyundai | Santa Fe Sport | 2.4L | L4 | EPA |
