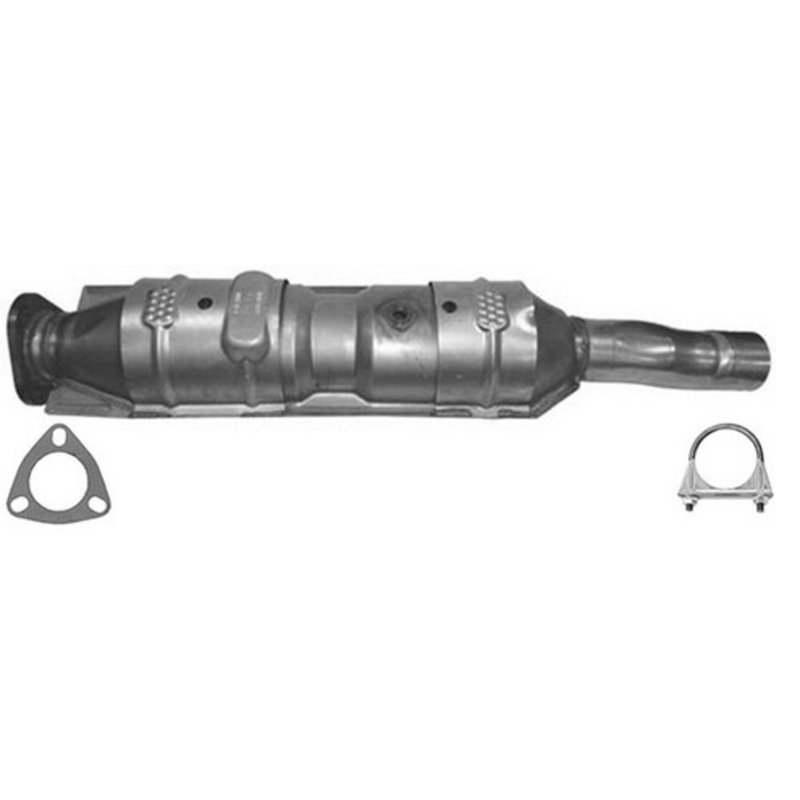

Walker 14736 Catalytic Converter - Rear
| Brand | Walker 14736 |
|---|---|
| Position | Rear |
| Clamps Included | Yes |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Tube Material | Steel |
| Body Shape | Round |
| Inlet Type | 3 bolt welded flange |
| Outlet Type | Pipe connection |
| Body Height | 4.000 |
| Body Length | 25.00 |
| Body Width | 4.000 |
| Heat Shield Attached | Yes |
| Inlet Quantity | 1 |
| Body Material | Stainless steel |
| Outlet Quantity | 1 |
| California Air Resources Board (CARB) Certified | No |
| Substrate Material | Ceramic |
| Converter Quantity | 1 |
| Inlet Gasket Included | Yes |
| Inlet Mounting Hardware Included | No |
| Outlet Mounting Hardware Included | Yes |
| Overall Length | 33.00 |
| Sensor Port Count | 1 |
| New York Certified | No |
| Heat Shield Material | Stainless steel |
| Oxygen Sensor Location | Midbed |
| Catalyst Type | Standard |
| Clamp Qty | 1 |
| Inlet Gasket | Yes |
| Inlet Gasket Qty | 1 |
| Inlet Hardware | No |
| Product line | EPA |
| Fits | Ford · 4 vehicles |
EPA-compliant design. Built for OBDII vehicles with a direct-fit replacement layout.
Stainless steel body. Round construction with a stainless steel heat shield for added durability.
Complete connection points. Includes inlet gasket, outlet hardware, and a welded flange inlet.
Cross-references AP Exhaust 646328, 52228 and GC2Z5E212A for the same application. See all 3.
EPA-Compliant Direct-Fit Design
Walker EPA Ultra Direct-Fit Catalytic Converter 14736 is built for specific applications and engineered to meet EPA standards. It is a premium-grade exhaust replacement with a round stainless steel body, ceramic substrate, and a direct-fit layout for cleaner installation.
- Specific-fit catalytic converter for targeted exhaust replacement
- EPA-compliant design for OBDII vehicles
- Stainless steel body with stainless steel heat shield
- Ceramic substrate with one oxygen sensor port
- Includes inlet gasket and outlet hardware
Construction and Fitment Details
This catalytic converter uses a 3-bolt welded flange inlet and pipe connection outlet, with a round body measuring 25.00 inches long and 33.00 inches overall. The unit includes a heat shield, clamps, and a midbed oxygen sensor location. Part number 14736 is a direct-fit exhaust solution for the Ford E-450 Super Duty and is also referenced by AP Exhaust 646328 and interchange numbers 52228 and GC2Z5E212A for the same application.
Common Replacement Uses
- Restores exhaust after catalyst efficiency failure
- Addresses emissions-related diagnostic trouble codes
- Replaces a damaged or corroded converter body
- Corrects exhaust leaks at the inlet or outlet connection
Installation Notes
Fits 2016-2019 Ford E-450 Super Duty, rear. Verify flange style, sensor port count, and outlet diameter before installation. The direct-fit layout is intended to match the original exhaust configuration on the Ford E-450 Super Duty, and part number 14736 should be confirmed against the vehicle’s emissions setup before service.
Quality Assurance
Walker’s EPA Ultra line is positioned as a premium direct-fit catalytic converter range for import and domestic OBDII vehicles. Part number 14736 is built to support EPA compliance requirements while maintaining the fit and function expected in a replacement exhaust component.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Ford | E-450 Super Duty | 6.8L | V10 | Rear | EPA |
| 2018 | Ford | E-450 Super Duty | 6.8L | V10 | Rear | EPA |
| 2017 | Ford | E-450 Super Duty | 6.8L | V10 | Rear | EPA |
| 2016 | Ford | E-450 Super Duty | 6.8L | V10 | Rear | EPA |
