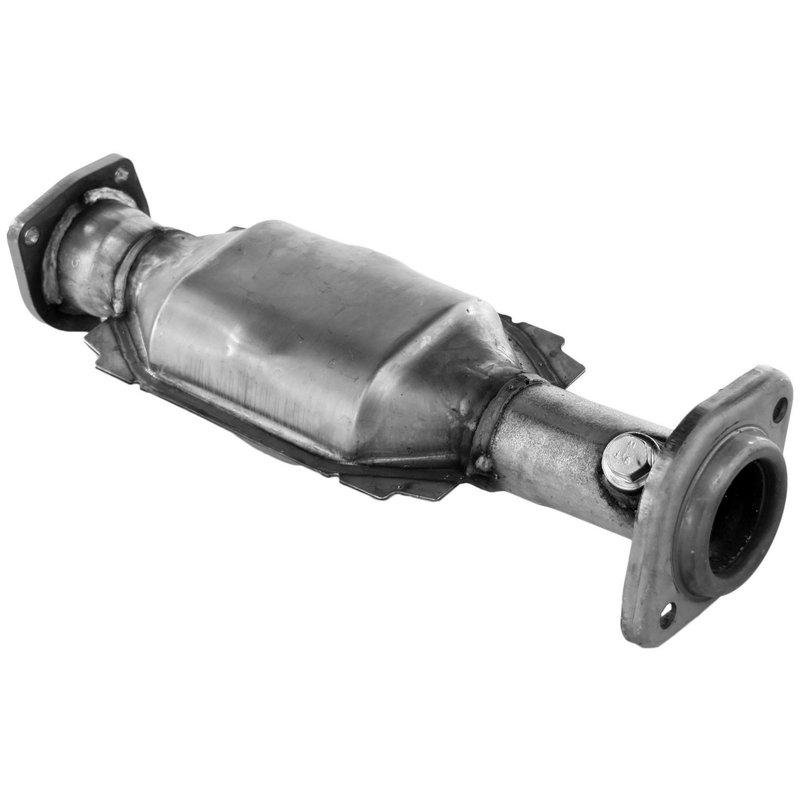

Walker 16117 Catalytic Converter - Rear
| Brand | Walker 16117 |
|---|---|
| Position | Rear |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Body Height | 4.25 |
| Body Length | 10 |
| Body Width | 6.125 |
| Inlet Quantity | 1 |
| Body Material | Stainless steel |
| Outlet Quantity | 1 |
| California Air Resources Board (CARB) Certified | No |
| Overall Length | 18 |
| Air Tube | No |
| Air Tube Count | No |
| Body Height | 4.250 |
| Body Length | 10.000 |
| Body Material | Stainless steel |
| Body Shape | Standard oval |
| Body Width | 6.125 |
| Converter Quantity | 1 |
| Fitment | Direct fit |
| Inlet 1 Type | 3 bolt welded flange |
| Inlet Connection Type | 3 bolt welded flange |
| Inlet Count | 1 |
| Inlet Type | 3 bolt welded flange |
| Max Year Covered | 2001 |
| Min Year Covered | 2000 |
| Most Popular Make / Model | Jeep cherokee |
| Most Popular Year | 2000 |
| Outlet 1 Type | 2 bolt welded flange |
| Outlet Connection Type | 2 bolt welded flange |
| Product line | EPA |
| Fits | Jeep · 2 vehicles |
Direct-fit replacement. Installs with specific fit and no modifications needed.
Stainless steel body. Helps resist corrosion for long-term durability.
EPA-compliant design. Built to meet EPA standards with premium performance.
Cross-references Anchor 9231, Anchor 10159 and Continental 49466 for the same application. See all 6.
Walker EPA Direct-Fit Catalytic Converter
Walker EPA Part Number 16117 is a direct-fit catalytic converter for specific Jeep Cherokee rear applications. It is built with a stainless steel body and ceramic substrate to match the original exhaust layout while supporting EPA-compliant replacement needs for 2000-2001 Jeep Cherokee models.
Walker Ultra Direct-Fit Catalytic Converters are part of the EPA-focused Walker EPA line, developed for import and domestic OBDII vehicles. This product line emphasizes application-specific fitment and emissions compliance for federal-emissions vehicles where permitted.
Key Features
- Direct-fit catalytic converter for specific rear-position applications
- Stainless steel body with standard oval shape
- Ceramic substrate material
- 3-bolt welded flange inlet and 2-bolt welded flange outlet
- Single inlet and single outlet configuration
- Designed for 2000-2001 Jeep Cherokee rear fitment
- Walker part number 16117
Detailed Description
Walker 16117 is an EPA catalytic converter engineered for direct replacement on select Jeep Cherokee rear exhaust positions. The unit uses a stainless steel housing with a ceramic substrate and application-specific flange connections for a factory-style exhaust interface. It is listed for 2001 Jeep Cherokee rear applications that fit Federal and California emission models, and for 2000 Jeep Cherokee rear applications from 01/21/2000 with California emission system. This part cross-references Walker Exhaust 93208 for the same application.
For buyers searching for a 2000-2001 Jeep Cherokee rear catalytic converter, Walker 16117 provides a direct-fit option with the correct inlet and outlet configuration. The part number 16117 is also useful when comparing replacement options for EPA Federal Emission Equipped Vehicles in states where this application is permitted.
What It Is Used For
- Replacing a worn or failed rear catalytic converter on a Jeep Cherokee
- Addressing emissions-related fault codes tied to converter efficiency
- Restoring exhaust flow through a damaged or restricted converter
- Replacing a rusted or leaking exhaust section at the rear converter location
- Supporting emissions compliance on approved federal-emissions applications
Installation Notes
Compatible With 2001 Jeep Cherokee, rear, and 2000 Jeep Cherokee, rear, from 01/21/2000 with California emission system. Exhaust gasket is recommended, and additional part 31625 is listed as needed to complete installation. This converter uses a 3-bolt welded flange inlet and 2-bolt welded flange outlet, so confirm the existing exhaust connection style before installation. It is not legal for sale or use in California and other CARB-compliant states, and it is legal in New York and Maine on EPA Federal Emission Equipped Vehicles only.
Quality Assurance
Walker EPA catalytic converters are built for application-specific replacement on OBDII vehicles and are designed to meet EPA standards for the listed use cases. Part number 16117 is intended for direct-fit replacement where the vehicle and emissions configuration match the published fitment.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Jeep | Cherokee | 4.0L | L6 | Rear | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31625; Ultra Direct Fit Type; EPA |
| 2000 | Jeep | Cherokee | 4.0L | L6 | Rear | From 01/21/2000; with California Emission System; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31625; Ultra Direct Fit Type; EPA |
