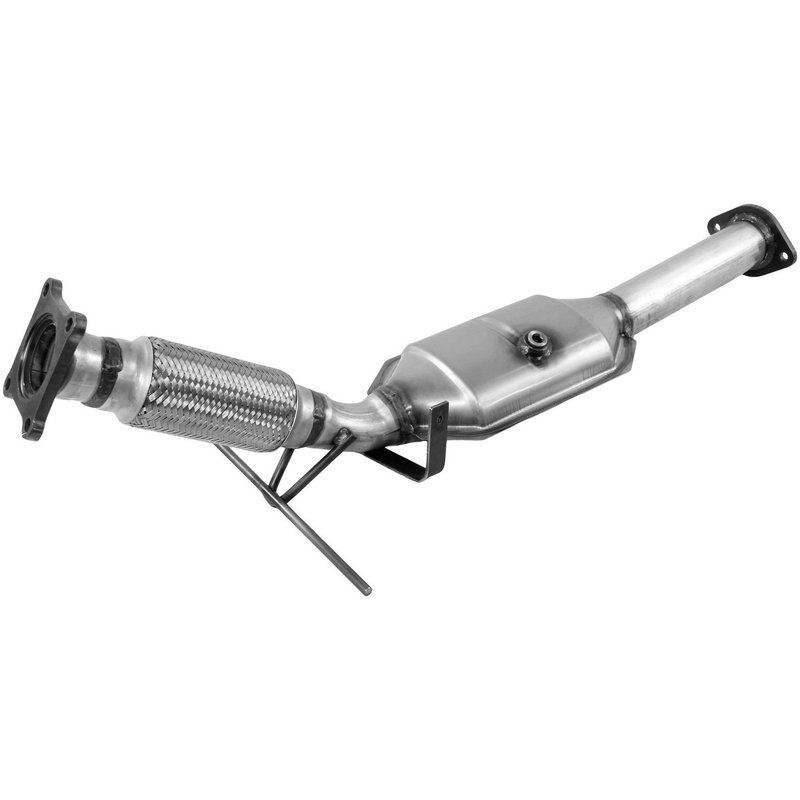

Walker 16768 Catalytic Converter
| Brand | Walker 16768 |
|---|---|
| Mounting Hardware Included | Yes |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Body Height | 3.5 |
| Body Length | 12 |
| Body Width | 7 |
| Inlet Quantity | 1 |
| Body Material | Stainless steel |
| Outlet Quantity | 1 |
| California Air Resources Board (CARB) Certified | No |
| Overall Length | 36 |
| Oxygen Sensor Location | Midbed |
| Air Tube | No |
| Air Tube Count | No |
| Body Height | 3.500 |
| Body Length | 12.000 |
| Body Material | Stainless steel |
| Body Shape | Oval |
| Body Shape | Standard oval |
| Body Width | 7.000 |
| Converter Position | Underbody |
| Converter Quantity | 1 |
| Fitment | Direct fit |
| Inlet 1 Type | 4 bolt welded flange |
| Inlet Connection Type | 4 bolt welded flange |
| Inlet Count | 1 |
| Inlet Type | 4 bolt welded flange |
| Max Year Covered | 2007 |
| Min Year Covered | 2001 |
| Most Popular Make / Model | Volvo s60 |
| Product line | EPA |
| Fits | Volvo · 10 vehicles |
Direct-fit design. Built for specific exhaust applications with OE-style connection points.
Stainless steel body. Resists exhaust heat and corrosion in demanding underbody conditions.
EPA-compliant line. Walker Ultra Direct-Fit focuses on OBDII replacement coverage.
Cross-references Eastern Catalytic 40734 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Direct-Fit EPA Catalytic Converter
Walker EPA 16768 is a direct-fit catalytic converter built for specific Volvo applications. It uses a stainless steel body and ceramic substrate, with welded flange connections for a precise exhaust fit.
- Direct-fit design for specific exhaust applications
- Stainless steel body with ceramic substrate
- 4-bolt welded flange inlet and 2-bolt welded flange outlet
- Underbody converter layout with midbed oxygen sensor location
- EPA-compliant construction for 1996 and newer OBDII vehicles
Fitment and Application
Compatible with 2001-2005 Volvo S60, N/A, and 2003-2007 Volvo V70, N/A. This Walker catalytic converter is a fitment-specific replacement for EPA Federal Emission Equipped vehicles, and it is not legal for sale or use in California and other CARB-compliant states. The part number 16768 is also cross-referenced to 40734 for the same application.
Walker’s EPA Ultra Direct-Fit line focuses on application-specific exhaust replacement for import and domestic OBDII vehicles. For Volvo S60 and Volvo V70 owners, 16768 provides a direct-fit format that follows the original exhaust routing and connection style.
What It Helps Address
- Failed catalytic converter efficiency codes
- Restricted exhaust flow from a worn substrate
- Emissions test failures on EPA Federal Emission Equipped vehicles
- Exhaust leaks at flange connection points
- Fitment issues from a non-specific replacement part
Installation Notes
Installation hardware is included, along with gaskets, an installer card, and a warranty card. Exhaust gasket use is recommended, and additional part 31540 is listed as needed to complete installation. Verify emission compliance before installation, especially for state-specific regulations.
Quality Assurance
Walker designs this converter to meet EPA standards and supply direct-fit coverage for specific vehicle applications. Part number 16768 is built as an economy-grade replacement with a stainless steel body and OE-style connection layout.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2007 | Volvo | V70 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2006 | Volvo | V70 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2005 | Volvo | S60 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2005 | Volvo | V70 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2004 | Volvo | S60 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2004 | Volvo | V70 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2003 | Volvo | S60 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2003 | Volvo | V70 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2002 | Volvo | S60 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
| 2001 | Volvo | S60 | 2.4L | L5 | Fits Fed. & Calif. Emission Models; Not legal for sale or use in California and other CARB-compliant states. Legal in New York and Maine on EPA Federal Emission Equipped Vehicles only. Consult the aftermarket converter regulations in your state for details.; Exhaust Gasket is Recommended; Additional Part(s) Needed To Complete Installation: 31540; Ultra Direct Fit Type; EPA |
