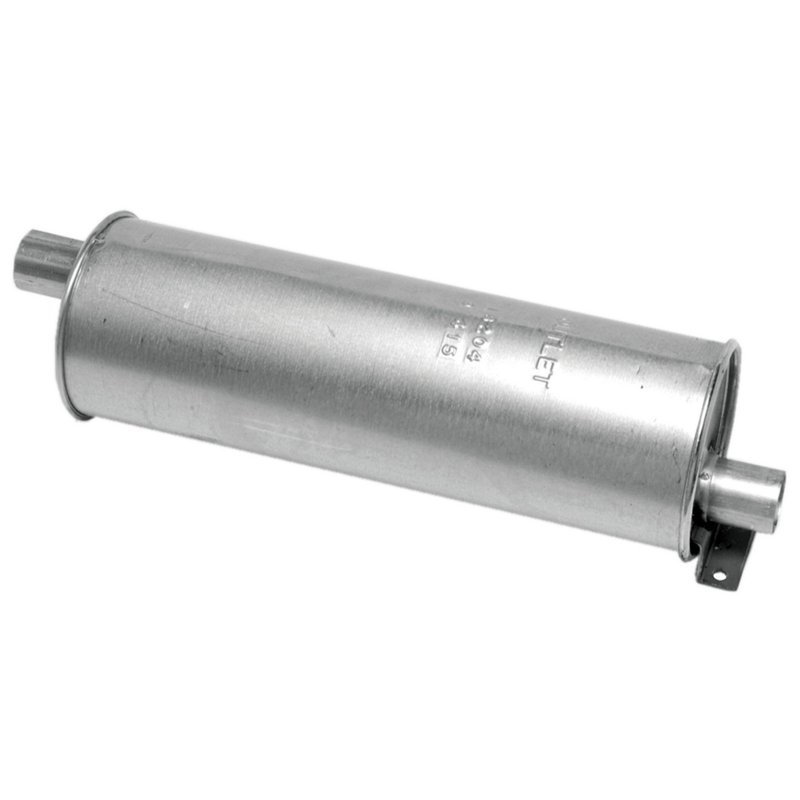

Walker 18204 Exhaust Muffler

Brand	Walker 18204
Universal Or Specific Fit	Specific
Shape	Round
Grade Type	Regular
Inlet Inside Diameter	1.75
Body Width	6
Inlet Quantity	1
Outlet Inside Diameter	1.75
Outlet Quantity	1
Reversible	No
Tunable	No
Overall Length	23
Body Height	6
Body Length	19
Body Material	Steel
Finish	Aluminized
Inlet 1 Inside Diameter	1.75
Inlet 1 Type	Pipe connection
Inlet Configuration	Offset
Inlet Offset	1.5
Inlet Type	Pipe connection
Muffler Type	Combination
Outlet 1 Inside Diameter	1.75
Outlet 1 Type	Pipe connection
Outlet Configuration	Offset
Outlet Type	Pipe connection
Product line	SoundFX Direct Fit
Fits	Toyota · 62 vehicles

Direct-fit design. Installs as a specific replacement with no guesswork.

Aluminized steel. Helps resist corrosion for longer service life than low-carbon steel.

Mechanical interior joints. Spun-locked heads add durability and a quality appearance.

Cross-references AMS Automotive 6672, AP Exhaust 44841 and BRExhaust 284-873 for the same application. See all 20.

$69.38Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Exhaust Muffler options

Walker SoundFX Direct Fit Muffler for Toyota Pickup and 4Runner

Walker SoundFX Direct Fit muffler part number 18204 is a specific-fit exhaust muffler for select Toyota Pickup and Toyota 4Runner applications. It combines a round steel body with an aluminized finish to support longer service life and a clean OE-style appearance.

Key Features

Specific-fit exhaust muffler for select Toyota Pickup and Toyota 4Runner models
Round body design with 6-inch body width and 6-inch body height
1.75-inch inlet and 1.75-inch outlet with offset pipe connection configuration
100% aluminized steel construction for improved corrosion resistance versus low-carbon steel
Mechanical interior joints and spun-locked heads for added durability
Combination muffler type for direct-fit exhaust service
Walker SoundFX Direct Fit line focuses on OE-style fitment and controlled exhaust acoustics

Product Details

Walker SoundFX Direct Fit 18204 is built for drivers replacing a worn exhaust muffler on older Toyota trucks and SUVs, including 1979-1995 Toyota Pickup and 1985-1989 Toyota 4Runner applications listed below. The 19-inch body length and 23-inch overall length support a direct-fit installation on the specified exhaust layouts, while the offset inlet and outlet configuration matches the factory-style routing used on these vehicles. This part cross-references AP Exhaust 44841 and Gates 43046 for the same application.

Vehicle Fitment

Fits 1989-1995 Toyota Pickup, N/A — without California Emission System; requires two insulators; SoundFX Direct Fit
Fits 1989-1995 Toyota Pickup, N/A — with Federal Emission System; requires 35489; optional parts for split system; requires two insulators; SoundFX Direct Fit
Fits 1988-1989 Toyota 4Runner, N/A — to 04/1989; requires 35489; optional parts for split system; requires two insulators; SoundFX Direct Fit
Fits 1984-1988 Toyota Pickup, N/A — requires 35489; requires two insulators; SoundFX Direct Fit
Fits 1984-1988 Toyota Pickup, N/A — requires 35489; optional parts for split system; requires two insulators; SoundFX Direct Fit
Fits 1986-1987 Toyota 4Runner, N/A — requires 35489; optional parts for split system; requires two insulators; SoundFX Direct Fit
Fits 1985 Toyota 4Runner, N/A — requires two insulators; SoundFX Direct Fit
Fits 1981-1983 Toyota Pickup, N/A — SoundFX Direct Fit
Fits 1979 Toyota Pickup, N/A — SoundFX Direct Fit
Fits 1979-1980 Toyota Pickup, N/A — with catalytic converter; SoundFX Direct Fit

Installation Notes and Tips

Confirm the vehicle emission system and exhaust layout before ordering, since some Toyota Pickup and Toyota 4Runner applications require part 35489 and/or optional split-system components. The fitment notes also specify two insulators for several applications, and OE insulators should not be reused. Verify inlet and outlet orientation, offset dimensions, and overall length against the existing exhaust before installation.

Quality Assurance

Walker SoundFX Direct Fit mufflers use 100% aluminized steel, mechanical interior joints, and spun-locked heads to support durability in exhaust service. The aluminized finish and direct-fit construction are intended to provide a consistent replacement for select Toyota Pickup and Toyota 4Runner exhaust systems.

This part fits 62 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Body Type	Drive Type	Transmission	Liters	Cylinders	Fuel Type	Wheel Base	Position	Notes
1995	Toyota	Pickup	—	Extended Cab Pickup	4WD	—	2.4L	L4	—	121.9"	N/A	without California Emission System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1995	Toyota	Pickup	—	Standard Cab Pickup	4WD	—	2.4L	L4	—	102.9"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1994	Toyota	Pickup	—	Extended Cab Pickup	4WD	—	2.4L	L4	—	121.5"	N/A	without California Emission System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1994	Toyota	Pickup	—	Standard Cab Pickup	4WD	—	2.4L	L4	—	102.9"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1993	Toyota	Pickup	—	Extended Cab Pickup	4WD	—	2.4L	L4	—	121.5"	N/A	without California Emission System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1993	Toyota	Pickup	—	Standard Cab Pickup	4WD	—	2.4L	L4	—	102.9"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1992	Toyota	Pickup	—	Extended Cab Pickup	4WD	—	2.4L	L4	—	121.5"	N/A	without California Emission System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1992	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1992	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	102.9"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1991	Toyota	Pickup	—	Extended Cab Pickup	4WD	—	2.4L	L4	—	121.5"	N/A	without California Emission System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1991	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1991	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	102.9"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1990	Toyota	Pickup	—	Extended Cab Pickup	4WD	—	2.4L	L4	—	121.5"	N/A	without California Emission System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1990	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1990	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	102.9"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1989	Toyota	4Runner	—	—	4WD	—	2.4L	L4	—	—	N/A	To 04/1989; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1989	Toyota	Pickup	—	Extended Cab Pickup	4WD	—	2.4L	L4	—	121.5"	N/A	without California Emission System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1989	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1989	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	102.9"	N/A	with Federal Emission System; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1988	Toyota	4Runner	SR5	—	4WD	—	2.4L	L4	—	—	N/A	To 04/1989; Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1988	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1988	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1988	Toyota	Pickup	—	Extended Cab Pickup	RWD	—	2.4L	L4	—	121.5"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1988	Toyota	Pickup	—	—	RWD	Manual	2.4L	L4	—	112.2"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1988	Toyota	Pickup	—	—	RWD	Manual	2.4L	L4	—	103.0"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1988	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1988	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1987	Toyota	4Runner	SR5	—	4WD	—	2.4L	L4	—	—	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1987	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1987	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1987	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1987	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1987	Toyota	Pickup	—	Extended Cab Pickup	RWD	—	2.4L	L4	—	121.5"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1986	Toyota	4Runner	SR5	—	4WD	—	2.4L	L4	—	—	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1986	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1986	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1986	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1986	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1986	Toyota	Pickup	—	Extended Cab Pickup	RWD	—	2.4L	L4	—	121.5"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1985	Toyota	4Runner	SR5	—	4WD	—	2.4L	L4	—	—	N/A	Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1985	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1985	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1985	Toyota	Pickup	—	—	RWD	—	2.4L	L4	DIESEL	112.2"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1985	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1985	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1985	Toyota	Pickup	DLX	—	4WD	—	2.4L	L4	DIESEL	—	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1985	Toyota	Pickup	—	—	4WD	—	2.4L	L4	DIESEL	—	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1984	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1984	Toyota	Pickup	—	—	RWD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1984	Toyota	Pickup	—	—	RWD	—	2.4L	L4	DIESEL	112.2"	N/A	Requires 35489; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1984	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	112.2"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1984	Toyota	Pickup	—	—	4WD	—	2.4L	L4	—	103.0"	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1984	Toyota	Pickup	DLX	—	4WD	—	2.4L	L4	DIESEL	—	N/A	Requires 35489; Requires Two Insulators 2 - do not reuse OE Insulators; SoundFX Direct Fit
1983	Toyota	Pickup	—	—	—	—	2.2L	L4	—	—	N/A	SoundFX Direct Fit
1983	Toyota	Pickup	—	—	—	—	2.4L	L4	—	—	N/A	SoundFX Direct Fit
1982	Toyota	Pickup	—	—	—	—	2.2L	L4	—	—	N/A	SoundFX Direct Fit
1982	Toyota	Pickup	—	—	—	—	2.4L	L4	—	—	N/A	SoundFX Direct Fit
1981	Toyota	Pickup	—	—	—	—	2.2L	L4	—	—	N/A	SoundFX Direct Fit
1981	Toyota	Pickup	—	—	—	—	2.4L	L4	—	—	N/A	SoundFX Direct Fit
1980	Toyota	Pickup	—	—	—	—	2.2L	L4	—	—	N/A	with Catalytic Converter; SoundFX Direct Fit
1979	Toyota	Pickup	—	—	RWD	—	2.2L	L4	—	—	N/A	SoundFX Direct Fit
1979	Toyota	Pickup	—	—	—	—	2.2L	L4	—	—	N/A	with Catalytic Converter; SoundFX Direct Fit
No rows match your filter.

Directly replaces or cross-references 20 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

AMS Automotive — 6672AP Exhaust — 44841BRExhaust — 284-873BRExhaust — 285-681BRExhaust — 286-223Dorman - HELP — 42733Four Seasons — 44064Four Seasons — 44066Gates — 43046Walker Exhaust — 43960Walker Exhaust — 44951Wix — 42706Wix — 42906284-051284-867286-219287-685288-9834300343959
