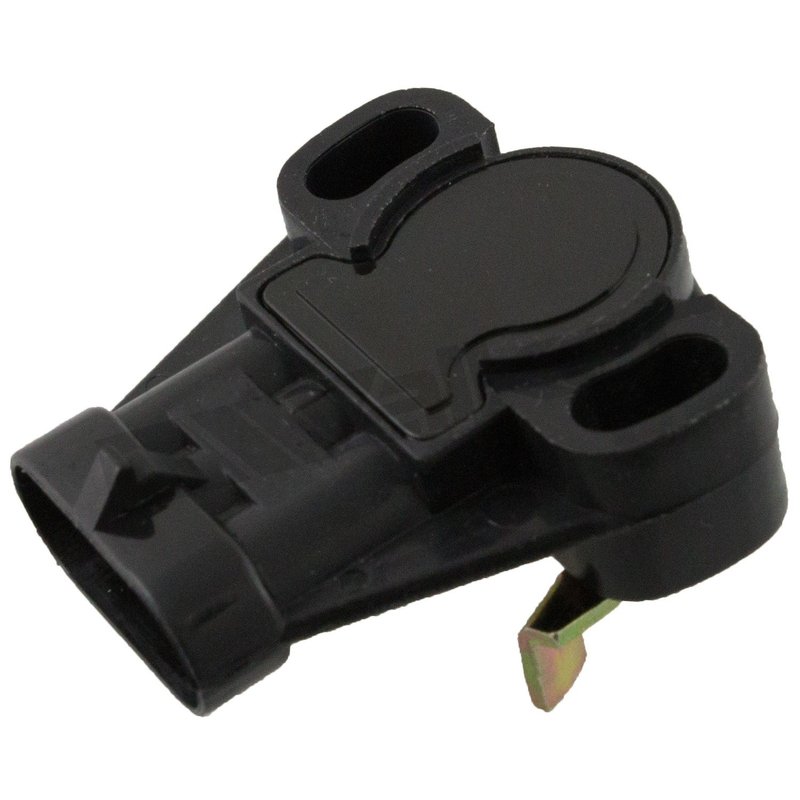

Walker 200-1044 Throttle Position Sensor

Overview of Walker Products Throttle Position Sensor 200-1044

The Walker Products Throttle Position Sensor (TPS) 200-1044 is designed for precise throttle body monitoring in select GM vehicles. This sensor is compatible with various Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models, ensuring accurate throttle position feedback for optimal engine performance.

• Constructed with durable plastic material
• Throttle body mounted for direct measurement
• Includes mounting hardware for straightforward installation
• Features one oblong female connector with three male/female terminals
• Adjustable sensor for fine-tuning throttle response

Product Line Details: Walker Products

Walker Products offers a range of emission control components designed to meet OEM specifications. The 200-1044 throttle position sensor is part of this line, emphasizing reliable sensor performance and compatibility with original equipment throttle bodies. This ensures consistent throttle position readings critical for engine management systems.

Detailed Product Description

The Walker Products 200-1044 throttle position sensor is a plastic-constructed, throttle body mounted sensor that provides accurate throttle position data to the vehicle’s engine control unit. It features a single oblong female connector with three terminals, designed with bullet-type terminals for secure electrical connections. The sensor is adjustable, allowing technicians to calibrate throttle response as needed. Mounting hardware is included to facilitate proper installation, although a mounting bracket is not part of the package. This sensor is compatible with a range of GM vehicles including Buick Skylark, Cadillac Cimarron, Chevrolet Camaro and Cavalier, Oldsmobile Cutlass Ciera, and Pontiac Firebird among others.

Common Applications and Issues Addressed

• Resolves erratic idle or stalling caused by faulty throttle position readings
• Corrects hesitation or poor acceleration linked to sensor malfunction
• Eliminates check engine light triggers related to throttle position sensor faults
• Improves fuel efficiency by providing accurate throttle input data
• Supports smooth transmission shifting in vehicles with electronic throttle control

Installation Notes and Tips

Installation of the Walker Products 200-1044 TPS requires removal of the old sensor from the throttle body. The included mounting hardware simplifies the process, but note that a mounting bracket is not provided. Ensure the sensor is properly aligned and securely fastened to avoid inaccurate readings. The adjustable feature allows for fine calibration; follow vehicle-specific service manual instructions for adjustment procedures. Verify connector compatibility with the vehicle’s wiring harness before installation.

Quality Assurance and Warranty

Walker Products manufactures the 200-1044 throttle position sensor to meet or exceed OEM standards for durability and performance. The sensor undergoes quality control testing to ensure reliable operation under normal driving conditions. Warranty details should be confirmed with the product documentation or supplier, as coverage may vary.
