Walker 21054 Exhaust Muffler

Walker Quiet-Flow SS Muffler Overview

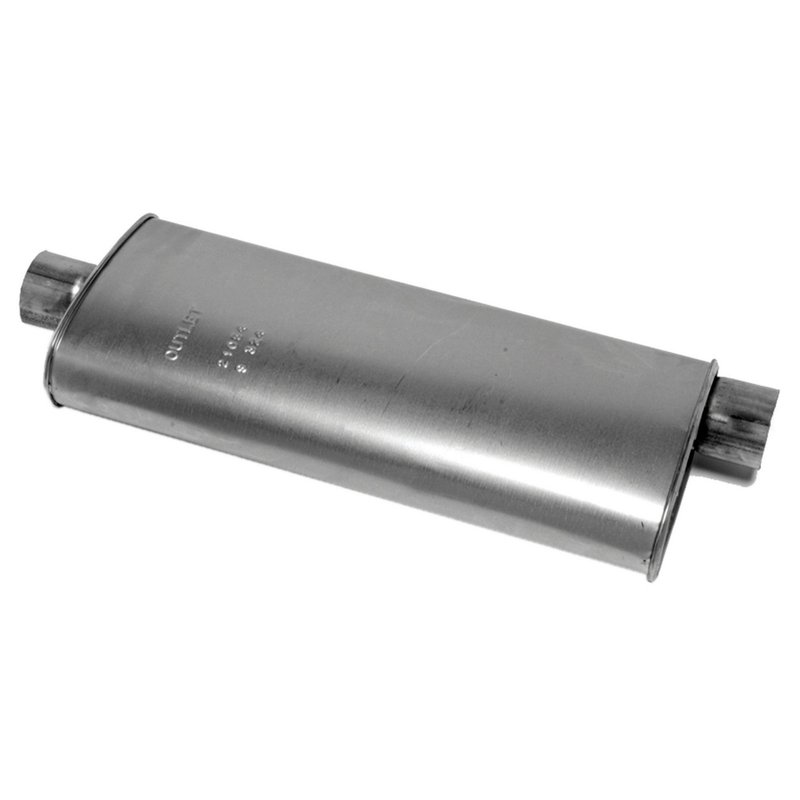

Walker Quiet-Flow SS Muffler Part Number 21054 is a specific-fit exhaust muffler built with 100% stainless-steel construction for broad-market domestic and import vehicle coverage. It combines a 3-inch inlet and 3-inch outlet with an oval body profile to support OE-style sound and precise fitment.

The Quiet-Flow SS product line focuses on direct-fit replacement mufflers with stainless-steel construction, consistent flow characteristics, and a factory-like sound profile. For owners servicing a Chevrolet Blazer, GMC Jimmy, or related GM van applications, this line provides a practical OE-style exhaust replacement option.

Key Features

• Walker Quiet-Flow SS Part Number 21054
• Specific-fit exhaust muffler for selected applications
• 100% stainless-steel body construction
• Oval muffler shape with aluminized finish
• 3-inch inlet and 3-inch outlet
• Offset inlet and center outlet configuration
• Combination muffler type for replacement use
• Body dimensions: 24 in. length, 9.75 in. width, 4.25 in. height
• Overall length: 29 in.

Detailed Description

Walker 21054 is an exhaust muffler engineered for direct replacement on select Chevrolet and GMC vehicles, including 1987-1991 Chevrolet Blazer, 1987-1991 Chevrolet G10, 1987-1991 GMC G1500, and 1987-1991 GMC Jimmy applications, along with additional 1987-1991 and 1991 GM van configurations listed in the fitment data. It uses a 3-inch pipe connection at both the inlet and outlet, with an offset inlet and center outlet layout to match the specified exhaust routing.

This muffler is a good match for buyers searching for a Walker Quiet-Flow SS muffler 21054 for Chevrolet Blazer or GMC Jimmy exhaust replacement, or a direct-fit muffler for 1987-1991 Chevrolet G10 and GMC G1500 vehicles. The stainless-steel body supports corrosion resistance, while the OE-style sound profile keeps the replacement focused on factory-like operation rather than an aggressive tone.

This part cross-references Anchor part numbers 2287 and 2288 for the same application.

Common Problems It Can Address

• Rusted or perforated factory muffler housing
• Exhaust noise from a failing internal muffler core
• Restricted exhaust flow caused by damaged muffler internals
• Fitment issues when replacing a welded OE-style muffler assembly
• Need for a direct replacement on select Chevrolet and GMC 3-inch exhaust systems

Installation Notes and Tips

Confirm the vehicle’s exhaust configuration before ordering, especially on applications noted with single catalytic converter, light duty emissions, or single pipe replacing OE split design. The fitment data also notes that if the system is welded assembly, all required parts should be replaced. Verify inlet offset, outlet center position, and 3-inch pipe size against the existing exhaust layout before installation.

Compatible With select 1987-1991 Chevrolet Blazer, Chevrolet G10, Chevrolet G20, Chevrolet G30, GMC G1500, GMC G2500, GMC G3500, and GMC Jimmy applications listed in the fitment table.

Quality Assurance

Walker Quiet-Flow SS mufflers are built with 100% stainless-steel construction and are positioned as OE-style replacement exhaust components with precision fit and controlled sound characteristics. The fitment notes list a limited lifetime warranty for the covered applications.
