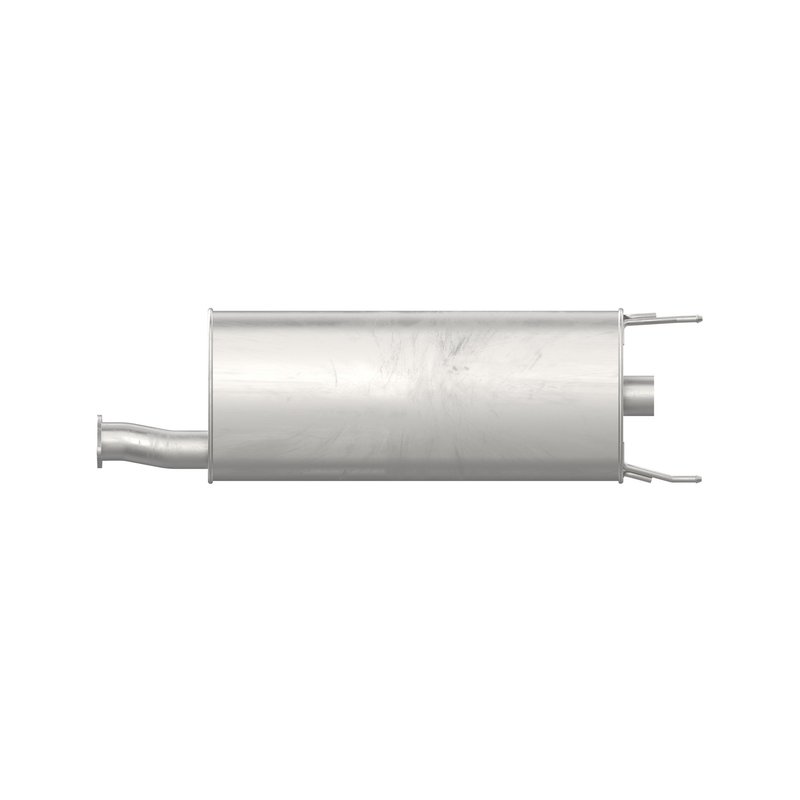

Walker 21233 Exhaust Muffler
| Brand | Walker 21233 |
|---|---|
| Outlet Outside Diameter | 2.500 |
| Clamps Included | No |
| Outlet Location | Offset |
| Universal Or Specific Fit | Specific |
| Shape | Oval |
| Grade Type | Premium |
| Inlet Type | Pipe connection |
| Outlet Type | 2 bolt welded flange |
| Inlet Inside Diameter | 2.500 |
| Body Height | 5.500 |
| Body Length | 29.000 |
| Body Width | 11.000 |
| Hanger Included | Yes |
| Inlet Location | Center |
| Inlet Quantity | 1 |
| Body Material | Stainless steel |
| Outlet Quantity | 1 |
| Reversible | No |
| Overall Length | 38.930 |
| Inlet Offset | No |
| Outlet Offset | Yes |
| Product line | Quiet-Flow SS |
| Fits | Hyundai · 6 vehicles |
100% stainless steel. Resists corrosion for long-lasting exhaust performance.
Precision fit. Engineered for a specific fit with OE-style sound.
Oval muffler design. Delivers superior flow in a premium exhaust package.
Cross-references 21-143 and 28600B8150 for the same application. See all 2.
Walker Quiet-Flow SS Muffler for Hyundai Santa Fe
Walker Quiet-Flow SS muffler Part Number 21233 is a direct-fit exhaust muffler for select 2013-2018 Hyundai Santa Fe models. It combines 100% stainless-steel construction with an OE-style sound profile, precision fit, and a flow-focused design for a clean replacement on the Hyundai Santa Fe exhaust system.
Key Features
- 100% stainless-steel body material for corrosion resistance
- Specific-fit design for select Hyundai Santa Fe applications
- Oval muffler body with center inlet and offset outlet layout
- 2.500-inch inlet inside diameter and 2.500-inch outlet outside diameter
- 2-bolt welded flange outlet connection
- Hanger included for vehicle-specific installation points
- Premium-grade Quiet-Flow SS construction
Product Details
The Walker Quiet-Flow SS line is built for drivers who want a replacement muffler that matches factory-style sound while using stainless-steel construction throughout the body. Part Number 21233 is engineered for select 2013-2018 Hyundai Santa Fe vehicles and uses a center inlet, offset outlet configuration to match the original exhaust routing. The oval body measures 29.000 inches long, 11.000 inches wide, and 5.500 inches high, with an overall length of 38.930 inches. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Muffler Can Address
- Rust or corrosion in the original muffler body
- Exhaust noise that has increased from a worn internal baffle
- Fitment problems caused by a damaged or leaking factory muffler
- Loss of OE-style exhaust tone after muffler failure
- Replacement needs on a 2013-2018 Hyundai Santa Fe exhaust system
Installation Notes and Tips
Fits 2013-2018 Hyundai Santa Fe, N/A. Verify inlet and outlet orientation before installation, since this muffler uses a center inlet and offset outlet layout with a 2-bolt welded flange outlet. Confirm exhaust pipe diameter and hanger alignment against the vehicle before final tightening. Part Number 21233 is a specific-fit muffler, so matching the vehicle’s original exhaust configuration is important for proper installation.
Quality Assurance
Walker Quiet-Flow SS mufflers are built with stainless-steel construction and OE-style sound characteristics for direct replacement use. The Quiet-Flow SS product line is positioned for domestic and import vehicles, including Hyundai Santa Fe applications, with a focus on fit, flow, and durable materials.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2018 | Hyundai | Santa Fe | 3.3L | V6 | Quiet-Flow SS |
| 2017 | Hyundai | Santa Fe | 3.3L | V6 | Quiet-Flow SS |
| 2016 | Hyundai | Santa Fe | 3.3L | V6 | Quiet-Flow SS |
| 2015 | Hyundai | Santa Fe | 3.3L | V6 | Quiet-Flow SS |
| 2014 | Hyundai | Santa Fe | 3.3L | V6 | Quiet-Flow SS |
| 2013 | Hyundai | Santa Fe | 3.3L | V6 | Quiet-Flow SS |
