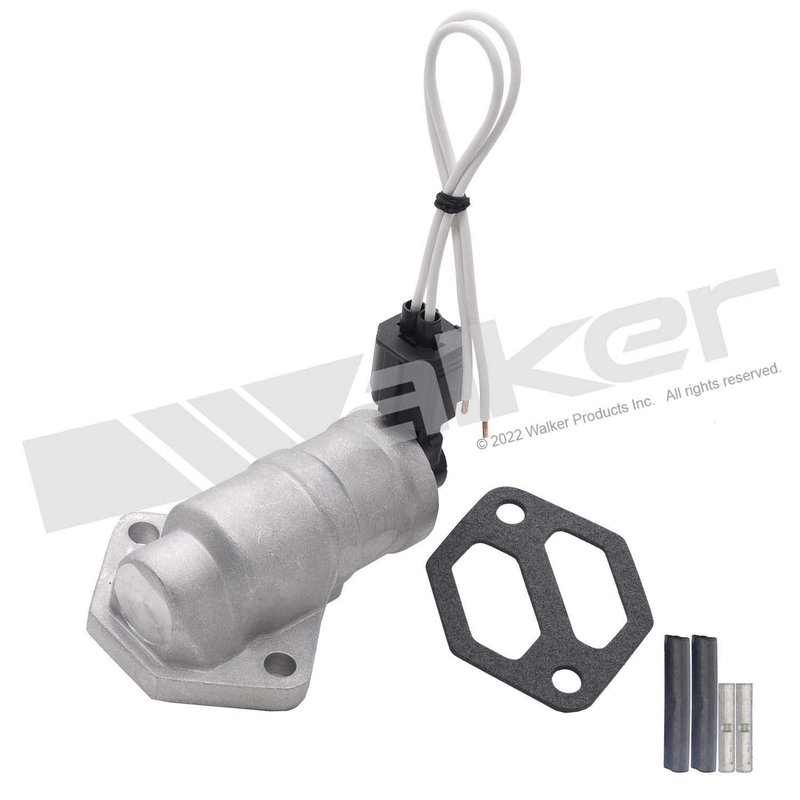

Walker 215-92099 Fuel Injection Idle Air Control Valve

Walker Full Service Kit Idle Air Control Valve

Walker 215-92099 is a fuel injection idle air control valve built as an OE replacement for stable idle control. It regulates bypass air around the throttle plate so the engine control unit can maintain consistent idle speed during warm-up, accessory load changes, and deceleration.

Compatible with 2001-2011 Ford Ranger, 2003-2009 Mazda B2300, and 2003-2007 Ford Focus applications, this Walker Full Service Kit part number 215-92099 is engineered for direct replacement service on the original throttle body or intake housing.

Key Features

• OE replacement idle air control valve for fuel injection systems
• Controls bypass air to help maintain steady idle speed
• Matches OE specifications for pintle shape, stepper motor response, voltage range, and airflow control curves
• High-temperature-resistant construction with sealing against fuel vapors and moisture
• Metal housing with steel finish, 2 mounting holes, and 2 ports
• Pin-style terminals with female and male terminal genders listed in the application data
• Gasket or seal included

Product Details

Walker Products Full Service Kit components are organized for fuel injection system service, and this idle air control valve follows that approach with direct-fit replacement design. The valve is controlled by the ECU and adjusts airflow to help prevent unstable idle behavior when the engine is cold, when electrical or mechanical loads change, and during deceleration. Walker 215-92099 is built to match OE fitment and electrical connection points for straightforward installation on the factory harness.

This part cross-references Standard Ignition AC504 and Dorman - Conduct-Tite 84950 for the same application.

Common Issues This Part Can Address

• Erratic or fluctuating idle speed
• Engine stalling at stops or during deceleration
• Hard starting related to idle air control problems
• Check engine light tied to idle air control circuit faults
• Poor cold-start idle stability

Installation Notes

Install the valve directly into the original throttle body or intake housing and connect it to the factory wiring harness. Verify the gasket or seal condition during service, clean the mounting surface before installation, and confirm the connector terminals match the vehicle harness before final assembly. For fitment-specific service, confirm the application against the vehicle’s year, make, and model before replacement.

Quality Assurance

Walker designs this idle air control valve to OE replacement standards using materials selected for engine-bay heat and exposure to fuel vapors and moisture. The part number 215-92099 is built for direct-fit service on Ford Ranger, Mazda B2300, and Ford Focus applications listed above.
