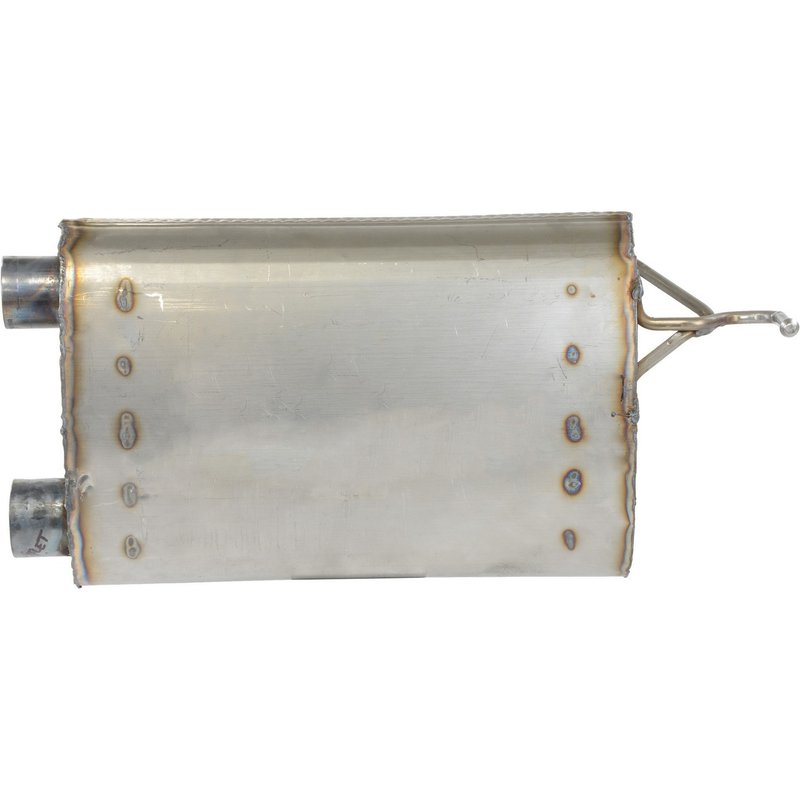

Walker 22274 Exhaust Muffler - Rear
OE Quality 60-Day Returns
Walker
 Quiet-Flow SS

Walker 22274 Exhaust Muffler - Rear

Brand Walker 22274
Position Rear
Muffler Type Reflection
Finish Natural
Universal Or Specific Fit Specific
Shape Oval
Grade Type Regular
Inlet Inside Diameter 2
Body Width 5.5
Inlet Quantity 1
Outlet Inside Diameter 2.25
Outlet Quantity 1
Reversible Yes
Tunable No
Overall Length 23.5
Body Height 11
Body Length 17
Body Material Stainless steel
Inlet 1 Inside Diameter 2
Inlet 1 Type Pipe connection
Inlet Configuration Offset
Inlet Offset 3.5
Inlet Type Pipe connection
Outlet 1 Inside Diameter 2.25
Outlet 1 Type Pipe connection
Outlet Configuration Offset
Outlet Type Pipe connection
Product line Quiet-Flow SS
Fits Ford · 4 vehicles

100% stainless steel. Resists corrosion for long-lasting exhaust performance.

Precision fit. Specific-fit design helps simplify installation.

OE-style sound. Delivers a factory-like exhaust note.

Cross-references Anchor 2628 for the same application. See all 1.

$129.20Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $129.20
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Exhaust Muffler options

Walker Quiet-Flow SS Muffler for Transit Connect

Walker Quiet-Flow SS muffler Part Number 22274 is a specific-fit exhaust muffler for rear applications on select Ford Transit Connect models. It uses 100% stainless-steel body construction, an oval reflection-style design, and OE-style sound characteristics for a direct replacement approach.

Key Features

  • Specific-fit exhaust muffler for rear installation
  • 100% stainless-steel body material for corrosion resistance
  • Oval muffler shape with natural finish
  • Reflection muffler type for OE-style sound control
  • Offset inlet and outlet pipe connections
  • Reversible design for installation flexibility
  • Walker Quiet-Flow SS line for domestic and import vehicle coverage

Product Details

This Walker Quiet-Flow SS muffler, Part Number 22274, is built with a stainless-steel body and a precision-fit layout for select Ford Transit Connect rear exhaust applications. It features a 2-inch inlet, 2.25-inch outlet, 23.5-inch overall length, and an oval body profile sized for a direct replacement installation. The Quiet-Flow SS product line focuses on stainless construction, controlled exhaust flow, and sound characteristics that align with OE-style replacement needs. This part cross-references Anchor 2628 for the same application.

Common Exhaust Issues It Can Address

  • Rust or corrosion in the rear muffler assembly
  • Exhaust noise from a damaged or deteriorated muffler
  • Restricted exhaust flow caused by internal muffler failure
  • Fitment concerns when replacing a rear muffler on a Ford Transit Connect
  • Need for a stainless-steel replacement with OE-style sound

Installation Notes

Compatible With 2014-2015 Ford Transit Connect, rear, and 2016-2017 Ford Transit Connect, rear. Verify inlet and outlet alignment before installation, since this muffler uses offset pipe connections and a reversible layout. If the vehicle uses a welded assembly, replace all required exhaust components as needed to complete the repair. Part Number 22274 should be matched to the vehicle’s rear exhaust configuration before installation.

Quality Assurance

Walker Quiet-Flow SS mufflers are built with 100% stainless-steel construction and are engineered for precision fit and controlled exhaust sound. The Quiet-Flow SS line is offered for most domestic and import vehicles, including Ford Transit Connect rear applications covered by Part Number 22274.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2017FordTransit Connect2.5LL4RearQuiet-Flow SS
2016FordTransit Connect2.5LL4RearQuiet-Flow SS
2015FordTransit Connect2.5LL4RearPremium; Limited Lifetime Warranty; If welded assembly, replace all required parts; Quiet-Flow SS
2014FordTransit Connect2.5LL4RearPremium; Limited Lifetime Warranty; If welded assembly, replace all required parts; Quiet-Flow SS
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 2628
