Walker 22483 Exhaust Muffler
OE Quality 60-Day Returns
Walker
 Quiet-Flow

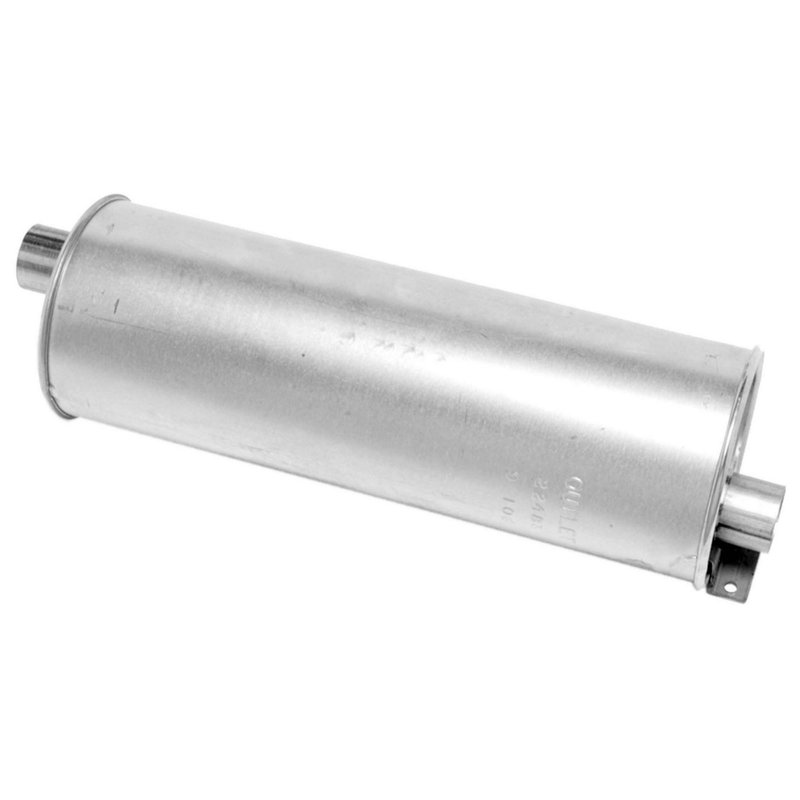

Walker 22483 Exhaust Muffler

Brand Walker 22483
Universal Or Specific Fit Specific
Shape Round
Grade Type Regular
Inlet Inside Diameter 2
Body Width 7
Inlet Quantity 1
Outlet Inside Diameter 2
Outlet Quantity 1
Reversible No
Tunable No
Overall Length 24.25
Body Height 7
Body Length 21
Body Material Steel
Finish Aluminized
Inlet 1 Inside Diameter 2
Inlet 1 Type Pipe connection
Inlet Configuration Offset
Inlet Offset 1.75
Inlet Type Pipe connection
Muffler Type Combination
Outlet 1 Inside Diameter 2
Outlet 1 Type Pipe connection
Outlet Configuration Offset
Outlet Type Pipe connection
Product line Quiet-Flow
Fits Toyota · 26 vehicles

OE-style sound. Delivers a quieter exhaust note with a refined tone.

Superior flow. Engineered to move exhaust efficiently through the muffler.

Aluminized steel. Helps resist corrosion for longer service life.

Cross-references BRExhaust 284-001, BRExhaust 288-023 and Dorman - HELP 42907 for the same application. See all 16.

$89.88Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $89.88
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Exhaust Muffler options

Walker Quiet-Flow Muffler for Toyota Applications

Walker Quiet-Flow muffler Part Number 22483 is a specific-fit exhaust muffler built for select Toyota trucks and SUVs from 1988-1995. It uses a round steel body with an aluminized finish to support OE-style exhaust tone and steady flow in the applications listed below.

Key Features

  • Specific-fit exhaust muffler for select Toyota 4Runner and Toyota Pickup models
  • Round combination muffler design with offset inlet and offset outlet
  • 2-inch inlet and 2-inch outlet pipe connection sizing
  • Steel body with aluminized finish for exhaust system service use
  • Overall length: 24.25 inches; body length: 21 inches; body width and height: 7 inches
  • Walker Quiet-Flow line focuses on OE-style sound and controlled exhaust flow
  • Part Number 22483 for direct catalog lookup and replacement matching

Product Details

Walker Quiet-Flow Part Number 22483 is a replacement exhaust muffler for Toyota 4Runner and Toyota Pickup applications that require a 2-inch pipe connection and offset inlet/outlet layout. The round, combination-style construction is sized for direct replacement use in the listed vehicles, including 1988-1991 Toyota 4Runner, 1992-1993 Toyota 4Runner, 1994-1995 Toyota 4Runner, 1989-1992 Toyota Pickup, and 1993-1995 Toyota Pickup. This part cross-references FEL-PRO 35489 for the same application.

The Quiet-Flow product line is Walker’s OE-style muffler family for drivers who want controlled exhaust sound and dependable flow characteristics in common domestic and import vehicle applications. For Toyota 4Runner and Toyota Pickup exhaust repair, Walker 22483 is a cataloged replacement option that matches the listed fitment and connection style.

Common Exhaust Issues This Muffler Can Address

  • Exhaust noise from a rusted or perforated muffler
  • Restricted exhaust flow caused by internal muffler deterioration
  • Failed OE muffler on Toyota 4Runner or Toyota Pickup applications
  • Exhaust system leaks at the muffler body or pipe connection points
  • Replacement needs for vehicles requiring an offset inlet and outlet layout

Installation Notes and Fitment

  • Fits 1988-1991 Toyota 4Runner, N/A
  • Fits 1992-1993 Toyota 4Runner, N/A
  • Fits 1994-1995 Toyota 4Runner, N/A
  • Fits 1989-1992 Toyota Pickup, N/A
  • Fits 1993-1995 Toyota Pickup, N/A
  • Review the vehicle notes before ordering: some applications require additional parts, and welded assemblies should be serviced by replacing all required components in the system.
  • Confirm inlet and outlet orientation, pipe diameter, and body dimensions against the existing exhaust layout before installation.
  • Use the listed fitment notes for California emission exclusions, long bed notes, and flare-side exclusions where applicable.

Quality Assurance

Walker backs Quiet-Flow mufflers with a limited lifetime warranty and a 90-day Safe and Sound guarantee. Part Number 22483 is built for the specified Toyota applications and follows Walker’s OE-style replacement approach for exhaust service.

Related reading

This part fits 26 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeDrive TypeLitersCylindersWheel BasePositionNotes
1995Toyota4Runner———3.0LV6—N/APremium; without California Emission System; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1995ToyotaPickup—Extended Cab Pickup4WD3.0LV6121.9"N/APremium; without California Emission System; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1995ToyotaPickup——4WD3.0LV6102.9"N/APremium; without California Emission System; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1994Toyota4Runner———3.0LV6—N/APremium; without California Emission System; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1994ToyotaPickup—Extended Cab Pickup4WD3.0LV6121.5"N/APremium; without California Emission System; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1994ToyotaPickup——4WD3.0LV6102.9"N/APremium; without California Emission System; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1993Toyota4Runner———3.0LV6—N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1993ToyotaPickup—Extended Cab Pickup4WD3.0LV6121.5"N/APremium; without California Emission System; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1993ToyotaPickup——4WD3.0LV6102.9"N/APremium; without California Emission System; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1992Toyota4Runner———3.0LV6—N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1992ToyotaPickup—Extended Cab Pickup4WD3.0LV6121.5"N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1992ToyotaPickup——4WD3.0LV6112.2"N/ALong Bed; Premium; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1992ToyotaPickup——4WD3.0LV6102.9"N/ALong Bed; Premium; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1991Toyota4Runner———3.0LV6—N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1991ToyotaPickup—Extended Cab Pickup4WD3.0LV6121.5"N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1991ToyotaPickup——4WD3.0LV6112.2"N/ALong Bed; Premium; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1991ToyotaPickup——4WD3.0LV6102.9"N/ALong Bed; Premium; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1990Toyota4Runner———3.0LV6—N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1990ToyotaPickup—Extended Cab Pickup4WD3.0LV6121.5"N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1990ToyotaPickup——4WD3.0LV6112.2"N/ALong Bed; Premium; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1990ToyotaPickup——4WD3.0LV6102.9"N/ALong Bed; Premium; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1989Toyota4Runner———3.0LV6—N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1989ToyotaPickup—Extended Cab Pickup4WD3.0LV6121.5"N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Optional Parts for Split System; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1989ToyotaPickup——4WD3.0LV6112.2"N/ALong Bed; Premium; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1989ToyotaPickup——4WD3.0LV6102.9"N/ALong Bed; Premium; Except Flareside; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
1988Toyota4RunnerSR5——3.0LV6—N/APremium; Limited Lifetime Warranty; Requires 35489; If welded assembly, replace all required parts; Requires Two Insulators 2 - do not reuse OE Insulators; Quiet-Flow
Directly replaces or cross-references 16 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BRExhaust — 284-001BRExhaust — 288-023Dorman - HELP — 42907FEL-PRO — 35489Four Seasons — 44065Standard Ignition — 2021Walker Exhaust — 41471Walker Exhaust — 43317Walker Exhaust — 44124284-223286-227286-229286-231286-2334160843152
