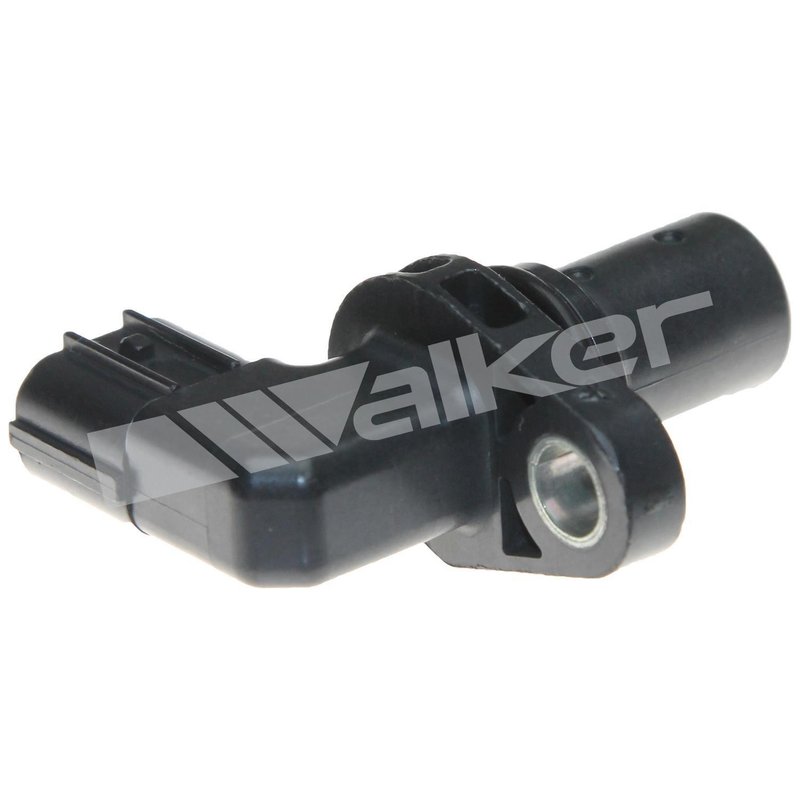

Walker 235-1686 Engine Camshaft Position Sensor

Walker 235-1686 Camshaft Position Sensor

Walker Products 235-1686 is an engine camshaft position sensor for select Suzuki applications. It supports accurate camshaft signal input for engine management systems on the Suzuki SX4 and Grand Vitara, helping maintain proper timing-related sensor communication.

Key Features

• Engine camshaft position sensor for ignition and engine management systems
• Walker Products aftermarket replacement backed by ISO 9001/IATF16949 manufacturing standards
• Built to meet or exceed OEM standards and specifications
• Fits select 2009-2013 Suzuki Grand Vitara and 2010-2013 Suzuki SX4 applications
• Part number 235-1686 for catalog and fitment lookup

Product Details

Walker Products has supplied fuel system and engine sensor components since 1946, with engineering and product support focused on accurate vehicle applications and technical documentation. The 235-1686 camshaft position sensor is part of Walker Products’ engine management lineup, which includes sensors and related components for repair and replacement needs. This part cross-references Standard Ignition PC896 for the same application.

Compatible With: Fits 2009-2013 Suzuki Grand Vitara, N/A; Fits 2010-2013 Suzuki SX4, N/A; Fits 2014 Suzuki SX4, N/A, Sensor Only. The Walker 235-1686 is a direct-fit style replacement for these Suzuki models when the original camshaft position sensor needs service.

Common Repair Symptoms

• Hard starting or extended crank time
• Intermittent stalling or rough running
• Check engine light related to camshaft signal faults
• Engine misfire or poor timing input to the ECU
• Loss of synchronization between camshaft and crankshaft signals

Installation Notes

Verify the vehicle year, model, and sensor location before installation. Compare the connector, mounting style, and OE part number against the original sensor to confirm application match for your Suzuki Grand Vitara or Suzuki SX4. Follow factory service procedures and clear diagnostic trouble codes after replacement.

Quality Assurance

Walker Products manufactures engine sensors to meet or exceed OEM standards and specifications. The company’s ISO 9001/IATF16949 certified quality system supports consistent production, application accuracy, and technical documentation for aftermarket service.
