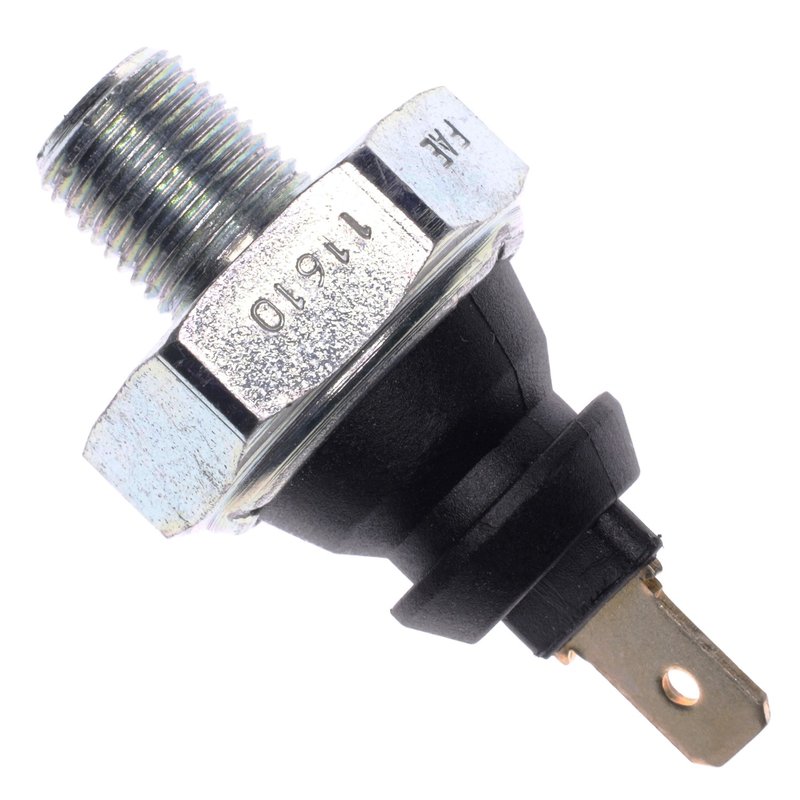

Walker 256-1101 Engine Oil Pressure Switch

Walker 256-1101 Engine Oil Pressure Switch

Walker 256-1101 is an OE replacement engine oil pressure switch built to monitor lubrication pressure and send a warning signal when pressure drops below safe limits. It is a direct-fit steel switch with a spade terminal and rectangular connector shape for factory-style electrical connection.

Compatible with Suzuki applications including Grand Vitara, SX4, XL-7, Vitara, Esteem, Swift, Sidekick, X-90, and Samurai, this oil pressure switch supports accurate dashboard warning operation and engine control input where equipped.

Key Features

• OE replacement engine oil pressure switch for factory-style fitment
• Steel construction for durability in engine bay conditions
• Spade terminal with 1 terminal, male connector and female terminal gender
• Rectangular connector shape for direct wiring connection
• Matches OE specifications for pressure threshold, thread size, terminal type, and electrical response
• Built for Suzuki oil pressure switch applications across multiple model years
• Part number 256-1101 for catalog and service reference

Detailed Description

Walker 256-1101 is engineered to replace the original engine oil pressure switch used in select Suzuki vehicles. It threads into the factory mounting location, typically on the engine block or oil filter housing, and connects to the existing harness without modification. The switch monitors oil pressure and provides the signal needed to activate the warning lamp or communicate with the ECU when pressure falls below the expected range. For drivers searching for a Suzuki Grand Vitara oil pressure switch, Suzuki Swift oil pressure switch, or Walker 256-1101 replacement, this part is built for direct OE-style service.

Walker uses high-temperature, oil-resistant materials to maintain consistent electrical response during prolonged engine exposure. The steel body and OE-matched terminal layout help preserve proper warning function in vehicles that rely on accurate oil pressure feedback for engine protection.

What It Helps Address

• Oil warning light flickering or intermittent operation
• False low-oil-pressure warnings
• No warning signal when actual oil pressure is low
• Faulty ECU or dash input from a worn pressure switch
• Loss of reliable lubrication-system monitoring

Installation Notes

Install the switch in the original threaded location and verify the connector style matches the factory harness before installation. Use the correct thread engagement and torque specification for the vehicle application. After installation, confirm warning light operation and inspect for leaks at the switch body and connection point. This part number 256-1101 is a direct replacement for service work, drivability repairs, and engine rebuilds on supported Suzuki models.

Quality Assurance

Walker Products manufactures this oil pressure switch to OE replacement standards with attention to pressure threshold, terminal configuration, and electrical response. The design uses oil-resistant, high-temperature materials to support dependable operation in engine environments.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

• Fits 2007-2009 Suzuki SX4, N/A
• Fits 1999-2008 Suzuki Grand Vitara, N/A
• Fits 2002-2006 Suzuki XL-7, N/A
• Fits 1999-2004 Suzuki Vitara, N/A
• Fits 1995-2002 Suzuki Esteem, N/A
• Fits 1989-2001 Suzuki Swift, N/A
• Fits 1989-1998 Suzuki Sidekick, N/A
• Fits 1996-1998 Suzuki X-90, N/A
• Fits 1986-1995 Suzuki Samurai, N/A
