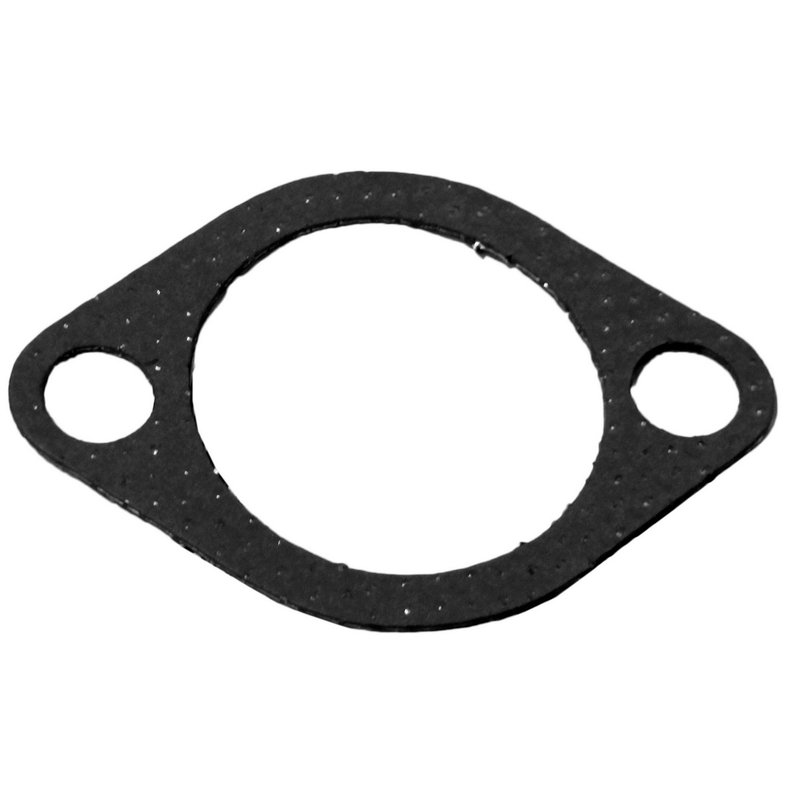

Walker 31301 Exhaust Pipe Flange Gasket - Converter To Muffler, Converter To Resonator or Converter To Resonator Assembly

Overview of Walker 31301 Exhaust Pipe Flange Gasket

The Walker 31301 exhaust pipe flange gasket is designed to provide a reliable seal for exhaust systems on select BMW, Cadillac, Ford, and Land Rover vehicles. Engineered with a fiber material reinforced by a steel core, this gasket ensures durability and proper sealing performance for exhaust pipe connections.

• Gasket type: 2 bolt exhaust pipe flange
• Bolt hole center to center distance: 2.875 inches
• Bolt hole diameter: 0.5 inches
• Material: Fiber with steel core for strength and heat resistance
• Port dimensions: 2 inches length by 2 inches width
• Thickness: 0.05 inches

Detailed Product Description

The Walker 31301 exhaust pipe flange gasket is constructed from fiber material combined with a steel core, providing a balance of flexibility and structural integrity. The 2 bolt design with bolt holes spaced 2.875 inches apart and 0.5 inch diameter holes ensures a secure fit for exhaust pipe flanges. The gasket’s port size of 2 by 2 inches matches the exhaust pipe dimensions on compatible vehicles, including BMW 325Ci, 325i, 325xi, 330Ci, 330i, 525i, Cadillac DeVille and Fleetwood, Ford F-100, and Land Rover Freelander, X5, and Z3 models. With a thickness of 0.05 inches, this gasket maintains a tight seal to prevent exhaust leaks and maintain system efficiency.

Common Applications and Problem Solving

• Sealing exhaust pipe flange connections to prevent exhaust leaks
• Reducing noise caused by escaping exhaust gases
• Maintaining proper exhaust system backpressure for engine performance
• Preventing harmful exhaust fumes from entering the vehicle cabin
• Replacing worn or damaged gaskets in BMW, Cadillac, Ford, and Land Rover exhaust systems

Installation Notes and Tips

Ensure the exhaust flange surfaces are clean and free of debris before installing the Walker 31301 gasket. Align the gasket carefully with the bolt holes spaced 2.875 inches apart and use bolts with a diameter matching the 0.5 inch holes for proper fitment. Avoid over-tightening bolts to prevent gasket damage. This gasket is compatible with specific models such as BMW 325Ci and Land Rover Freelander, so verify vehicle compatibility before installation.

Quality Assurance

Walker exhaust gaskets are manufactured to meet industry standards for durability and heat resistance. The fiber with steel core construction provides reliable sealing under high-temperature conditions typical of exhaust systems. While no specific warranty information is provided, Walker products are known for consistent quality in exhaust sealing applications.
