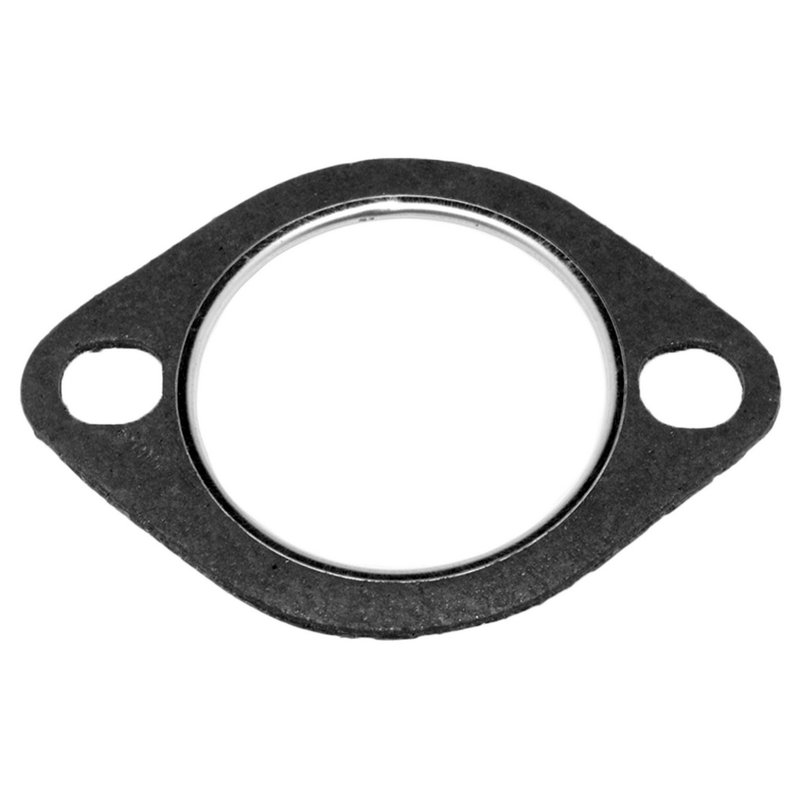

Walker 31310 Exhaust Pipe Flange Gasket

Overview of Walker Exhaust Pipe Flange Gasket 31310

The Walker 31310 exhaust pipe flange gasket is engineered for reliable sealing in exhaust systems of select Chevrolet, Ford, Kia, Pontiac, Saab, Saturn, and Subaru vehicles. Designed with a fiber material reinforced by a steel core and metal fire ring, this 2-bolt gasket ensures a secure and durable connection between exhaust pipes.

• Compatible with Chevrolet Malibu, Pontiac G6, Saturn Aura, Subaru Outback, and more
• 2-bolt gasket type with 3.5 inch bolt hole center-to-center spacing
• Constructed from fiber with steel core and metal fire ring for heat resistance
• Port dimensions: 2 inches length by 2 inches width
• Thickness of 0.05 inches for optimal sealing performance
• Part number 31310 for precise identification and fitment

Technical Specifications and Design Features

The Walker 31310 exhaust pipe flange gasket features a 2-bolt design with bolt holes measuring 0.5 inches in diameter and spaced 3.5 inches center to center. The gasket’s fiber material is reinforced with a steel core and includes a metal fire ring, providing enhanced durability and resistance to high exhaust temperatures. The port size measures 2 inches by 2 inches, matching the flange dimensions on compatible exhaust pipes. With a thickness of 0.05 inches, this gasket maintains a tight seal to prevent exhaust leaks and maintain system integrity.

Compatible Vehicles and Applications

This gasket is compatible with a range of vehicles including Chevrolet Malibu, Ford Aerostar, Kia Rio, Pontiac G6, Saab 9-2X, Saturn Aura, and Subaru models such as the Outback, Forester, Legacy, Baja, and Impreza. The Walker 31310 gasket is suitable for exhaust pipe flange connections requiring a 2-bolt fiber gasket with steel core reinforcement.

Common Issues Addressed by Walker 31310 Gasket

• Prevents exhaust leaks caused by worn or damaged gaskets
• Eliminates exhaust noise from poor flange sealing
• Resists heat damage and deformation in high-temperature exhaust environments
• Maintains proper exhaust flow and emission control
• Prevents corrosion and rust buildup at flange connections

Installation Notes and Tips

• Ensure flange surfaces are clean and free of debris before installation
• Use the correct torque specifications for the 2-bolt flange to avoid gasket damage
• Inspect bolts and replace if corroded or damaged to maintain proper seal
• Verify gasket orientation matches port dimensions (2" x 2") for proper fit
• Check for exhaust leaks after installation and retighten bolts if necessary

Quality Assurance and Warranty Information

Walker exhaust gaskets are manufactured to meet industry standards for durability and performance. The 31310 gasket is constructed with high-quality fiber and steel core materials to withstand thermal cycling and mechanical stress. While specific warranty details may vary, Walker products typically come with a limited warranty against defects in material and workmanship. Refer to Walker’s official documentation for exact warranty terms.
