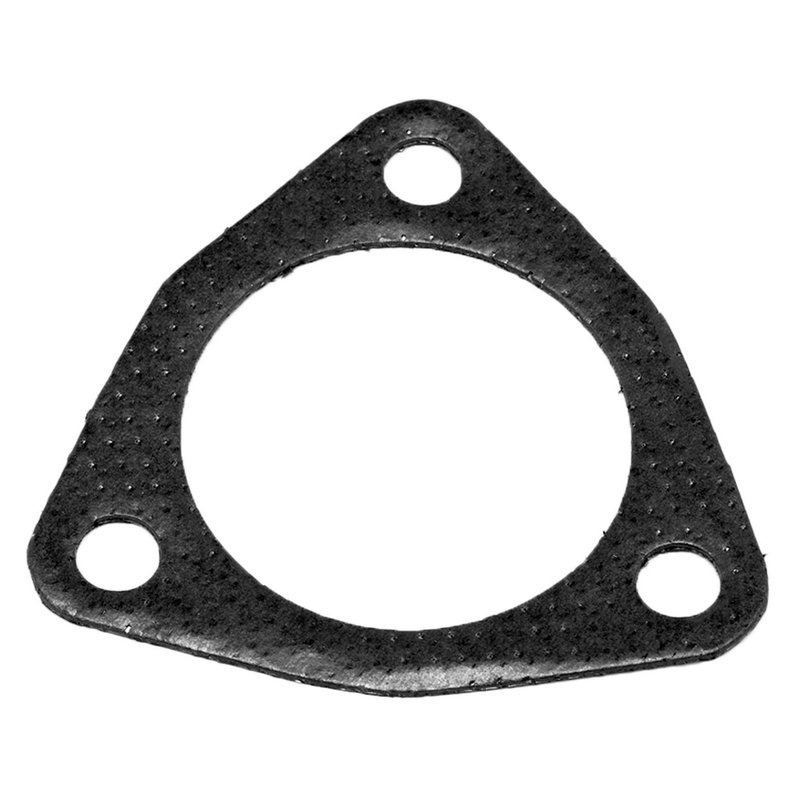

Walker 31312 Exhaust Pipe Flange Gasket - Front Converter To Rear Converter

Walker 31312 Exhaust Pipe Flange Gasket

Walker 31312 is an exhaust pipe flange gasket built for a 3-bolt connection in the exhaust system. It uses a fiber body with a steel core and metal fire ring to help maintain a tight seal at the flange joint on the Chevrolet Cruze and Cruze Limited front converter to rear converter connection.

Key Features

• 3-bolt exhaust pipe flange gasket for flange-style exhaust joints
• Fiber construction with steel core and metal fire ring
• 0.06 in. thickness for a low-profile sealing surface
• Port size: 2.375 in. x 2.375 in.
• Bolt hole center to bolt hole center: 3.125 in.
• Bolt hole diameter: 0.375 in.
• Walker 31312 cross-references Anchor 8720 for the same application

Detailed Description

Walker 31312 is made for exhaust repair work where a flange seal is needed between exhaust components. The fiber-with-steel-core design and metal fire ring are specified to work with OE exhaust parts and Walker aftermarket replacement parts, making it a practical choice for sealing the front converter to rear converter connection on 2011-2015 Chevrolet Cruze and 2016 Chevrolet Cruze Limited models. If you are replacing a leaking exhaust flange gasket on a Chevrolet Cruze, this part number provides the dimensions needed for a direct match to the flange pattern.

This part number, Walker 31312, is also referenced in aftermarket interchange listings for related exhaust sealing applications.

Common Problems It Can Help Solve

• Exhaust leak at the flange connection
• Noise from a worn or damaged gasket seal
• Soot buildup around the exhaust joint
• Loss of sealing after exhaust service or component replacement
• Fitment mismatch when replacing a 3-bolt exhaust pipe flange gasket

Installation Notes and Tips

Confirm the 3-bolt pattern, 3.125 in. bolt hole center spacing, and 0.375 in. bolt hole diameter before installation. Verify the port opening measures 2.375 in. by 2.375 in. and matches the exhaust flange being serviced. Clean both mating surfaces thoroughly so the gasket can seat evenly, and inspect the flange faces for warping or corrosion before assembly. This gasket is used at the front converter to rear converter position on the listed Chevrolet Cruze applications.

Quality Assurance

Walker supplies exhaust gaskets and flanges for use with OE exhaust components and Walker replacement parts. Walker 31312 is built to the stated dimensions and material specification for the listed Chevrolet Cruze and Cruze Limited fitments.
