Home› Exhaust > Gaskets and Sealing Systems› Walker 31313 Exhaust Pipe Flange Gasket - Converter To Muffler Assembly, Converter To Resonator Assembly or Y-Pipe To Muffler Assembly
Walker 31313 Exhaust Pipe Flange Gasket - Converter To Muffler Assembly, Converter To Resonator Assembly or Y-Pipe To Muffler AssemblyOE Quality 60-Day Returns
Part #: 31313

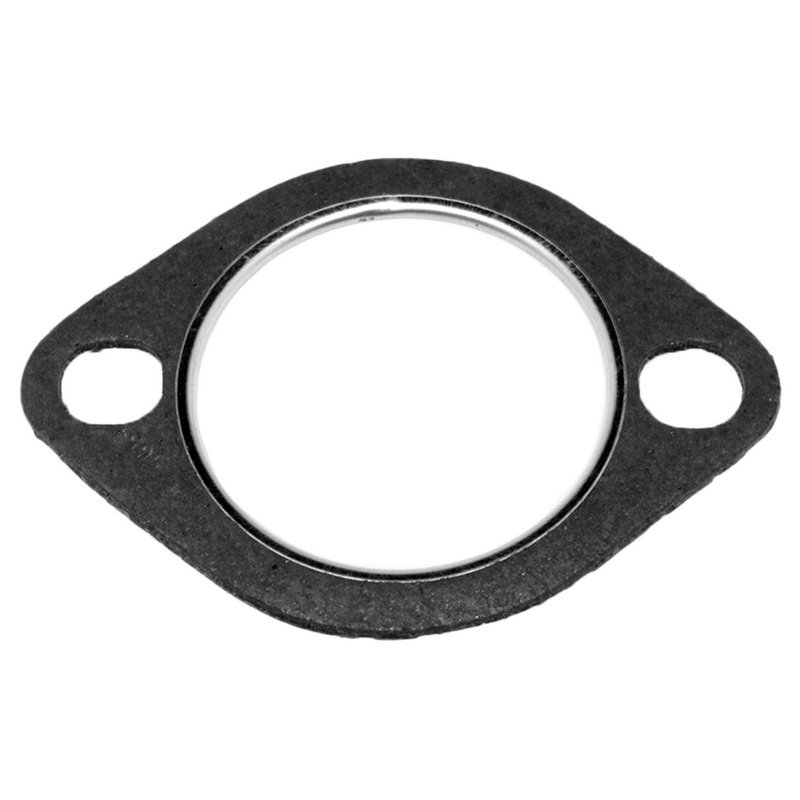

Walker 31313 Exhaust Pipe Flange Gasket - Converter To Muffler Assembly, Converter To Resonator Assembly or Y-Pipe To Muffler Assembly

Converter To Muffler Assembly, Converter To Resonator Assembly, and Y-Pipe To Muffler Assembly
⚙️ 176 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$9.82Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Acura, Buick, Chevrolet, Dodge, Hyundai, Kia, Mazda, Mercury, Mitsubishi, Nissan, Oldsmobile, Pontiac, and Subaru, Accent, Aveo, Aveo5, Century, Cutlass Ciera, D21, Elantra, Excel, G3, MDX, Mighty Max, Outback, Pathfinder, Quest, Ram 50, Rio, Rio5, RX-7, Scoupe, and Villager
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Exhaust Pipe Flange Gasket options

Walker Exhaust Pipe Flange Gasket Overview

The Walker 31313 exhaust pipe flange gasket is engineered to provide a reliable seal between exhaust components for a range of vehicles including Acura, Chevrolet, Hyundai, and Nissan models. Designed with a fiber and metal laminate construction, this 2 bolt gasket ensures durability and effective sealing under high-temperature conditions.

  • Gasket Type: 2 bolt exhaust pipe flange
  • Material: Fiber and metal laminate for heat resistance and durability
  • Bolt Hole Center to Center: 3.375 inches
  • Bolt Hole Diameter: 0.5 inches
  • Port 1 Dimensions: 2.125 inches length and width
  • Thickness: 0.06 inches for optimal sealing

Technical Details and Specifications

The Walker 31313 gasket features a precise bolt hole spacing of 3.375 inches center to center, compatible with exhaust flanges requiring a 2 bolt configuration. The 0.5-inch bolt hole diameter accommodates standard exhaust flange bolts, ensuring a secure fit. The gasket’s port measures 2.125 inches in both length and width, matching the exhaust pipe flange dimensions for a tight seal. Its 0.06-inch thickness balances compression and durability, preventing exhaust leaks and maintaining system integrity.

Compatible Vehicles and Applications

This exhaust pipe flange gasket is compatible with various makes and models, including but not limited to:

  • Acura MDX
  • Chevrolet Aveo and Aveo5
  • Hyundai Accent and Elantra
  • Nissan Pathfinder and Quest
  • Mazda RX-7 and Scoupe
  • Subaru Outback
  • Dodge Ram 50

Use the Walker 31313 gasket when replacing or repairing exhaust pipe flanges on these vehicles to ensure proper fit and function.

Common Issues Addressed by This Gasket

  • Exhaust leaks caused by worn or damaged flange gaskets
  • Noise and vibration from poor exhaust sealing
  • Corrosion and heat damage to existing gaskets
  • Preventing exhaust fumes from escaping at flange connections
  • Maintaining proper exhaust system backpressure and performance

Installation Notes and Tips

When installing the Walker 31313 exhaust pipe flange gasket, ensure the mating surfaces are clean and free of debris or old gasket material. Align the gasket carefully with the bolt holes spaced 3.375 inches apart to avoid misalignment. Use the correct torque specifications for your vehicle’s exhaust flange bolts to prevent gasket damage or leaks. Inspect the gasket during installation for any signs of damage or deformation.

Quality Assurance and Warranty

Walker exhaust gaskets are manufactured to meet industry standards for durability and performance. The fiber and metal laminate construction provides resistance to heat and corrosion, contributing to long service life. While specific warranty details for part number 31313 are not provided, Walker products typically adhere to quality control processes to ensure reliability in automotive exhaust applications.

BrandWalker
Part Number31313
Bolt Hole Center To Bolt Hole Center 13.375
Bolt Hole Diameter0.5
Gasket Type2 bolt
MaterialFiber and metal laminate
Port 1 Length2.125
Port 1 Width2.125
Thickness0.06

This part fits 176 vehicles. Search below:

YearMakeModelSubmodelBody TypeDrive TypeLitersCylindersWheel BasePositionNotes
2019SubaruOutback2.5LH4N/A
2018SubaruOutback2.5LH4N/A
2017SubaruOutback2.5LH4N/A
2016SubaruOutback2.5LH4N/A
2015SubaruOutback2.5LH4N/A
2014SubaruOutback2.5LH4N/A
2013SubaruOutback2.5LH4N/A
2012SubaruOutback2.5LH4N/A
2011ChevroletAveo1.6LL4N/A
2011ChevroletAveo51.6LL4N/A
2011HyundaiAccent1.6LL4N/A
2011KiaRio1.6LL4N/A
2011KiaRio51.6LL4N/A
2011SubaruOutback2.5LH4N/A
2010ChevroletAveo1.6LL4N/A
2010ChevroletAveo51.6LL4N/A
2010HyundaiAccentSE1.6LL4N/A
2010HyundaiAccentGLS1.6LL4N/A
2010HyundaiAccentGS1.6LL4N/A
2010HyundaiAccentBlue1.6LL4N/A
2010KiaRio1.6LL4N/A
2010KiaRio51.6LL4N/A
2010PontiacG31.6LL4N/A
2010SubaruOutback2.5LH4N/A
2009ChevroletAveo1.6LL4N/A
2009ChevroletAveo51.6LL4N/A
2009HyundaiAccentSE1.6LL4N/A
2009HyundaiAccentGLS1.6LL4N/A
2009HyundaiAccentGS1.6LL4N/A
2009KiaRio1.6LL4N/A
2009KiaRio51.6LL4N/A
2009PontiacG31.6LL4N/A
2008HyundaiAccentSE1.6LL4N/A
2008HyundaiAccentGLS1.6LL4N/A
2008HyundaiAccentGS1.6LL4N/A
2008KiaRio1.6LL4N/A
2008KiaRio51.6LL4N/A
2007HyundaiAccent1.6LL4N/A
2007KiaRio1.6LL4N/A
2007KiaRio51.6LL4N/A
2006AcuraMDX3.5LV6N/A
2006HyundaiAccent1.6LL4N/A
2006KiaRio1.6LL4N/A
2006KiaRio51.6LL4N/A
2005AcuraMDX3.5LV6N/A
2004AcuraMDX3.5LV6N/A
2002MercuryVillager3.3LV6N/A
2002NissanQuest3.3LV6N/A
2001MercuryVillager3.3LV6N/A
2001NissanQuest3.3LV6N/A
2000MercuryVillager3.3LV6N/A
2000NissanQuest3.3LV6N/A
1999MercuryVillager3.3LV6N/A
1999NissanQuest3.3LV6N/A
1996BuickCenturySedan2.2LL4N/A
1996OldsmobileCutlass CieraSedan2.2LL4N/A
1995BuickCenturySedan2.2LL4N/A
1995BuickCenturyWagon2.2LL4N/A
1995NissanPathfinder4WD3.0LV6N/A
1995NissanPathfinderRWD3.0LV6N/A
1995OldsmobileCutlass CieraSedan2.2LL4N/A
1994BuickCenturySedan2.2LL4N/A
1994BuickCenturyWagon2.2LL4N/A
1994HyundaiElantraBase1.8LL4Converter To Resonator Assembly
1994HyundaiElantraGLS1.8LL4N/A
1994HyundaiElantraGLS1.8LL4Converter To Resonator Assembly
1994HyundaiElantraBase1.8LL4N/A
1994HyundaiExcelGL1.5LL4N/A
1994HyundaiExcelBase1.5LL4Converter To Muffler Assembly
1994HyundaiExcelCXL1.5LL4Converter To Muffler Assembly
1994HyundaiExcelCXL1.5LL4N/A
1994HyundaiExcelGS1.5LL4Converter To Muffler Assembly
1994HyundaiExcelGS1.5LL4N/A
1994HyundaiExcelCX1.5LL4Converter To Muffler Assembly
1994HyundaiExcelBase1.5LL4N/A
1994HyundaiExcelGL1.5LL4Converter To Muffler Assembly
1994HyundaiExcelCX1.5LL4N/A
1994HyundaiScoupeBase1.5LL4N/A
1994HyundaiScoupeLS1.5LL4N/A
1994NissanD214WD3.0LV6104.3"N/Awithout California Emission System
1994NissanD214WD3.0LV6116.1"N/Awithout California Emission System
1994NissanD21RWD3.0LV6116.1"N/Awithout California Emission System
1994NissanPathfinder4WD3.0LV6N/A
1994NissanPathfinderRWD3.0LV6N/A
1994OldsmobileCutlass CieraSSedan2.2LL4N/A
1994OldsmobileCutlass CieraBaseSedan2.2LL4N/A
1993BuickCenturyWagon2.2LL4N/A
1993HyundaiElantra1.8LL4Converter To Resonator Assembly
1993HyundaiElantra1.8LL4N/A
1993HyundaiScoupeBase1.5LL4N/A
1993HyundaiScoupeLS1.5LL4N/A
1993NissanD214WD3.0LV6116.1"N/A
1993NissanD21RWD3.0LV6116.1"N/A
1993NissanD214WD3.0LV6104.3"N/A
1993NissanPathfinder4WD3.0LV6N/A
1993NissanPathfinderRWD3.0LV6N/A
1993OldsmobileCutlass CieraWagon2.2LL4N/A
1992NissanD214WD3.0LV6116.1"N/A
1992NissanD21RWD3.0LV6116.1"N/A
1992NissanD214WD3.0LV6104.3"N/A
1992NissanPathfinder4WD3.0LV6N/A
1992NissanPathfinderRWD3.0LV6N/A
1991MazdaRX-7Coupe1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1991MazdaRX-7Convertible1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1991NissanD214WD3.0LV6116.1"N/A
1991NissanD21RWD3.0LV6116.1"N/A
1991NissanD214WD3.0LV6104.3"N/A
1991NissanPathfinder4WD3.0LV6N/A
1991NissanPathfinderRWD3.0LV6N/A
1990MazdaRX-7Coupe1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1990MazdaRX-7Convertible1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1990NissanD214WD3.0LV6116.1"N/A
1990NissanD21RWD3.0LV6116.1"N/A
1990NissanD214WD3.0LV6104.3"N/A
1990NissanPathfinder4WD3.0LV6N/A
1990NissanPathfinderRWD3.0LV6N/A
1989DodgeRam 50Base4WD2.0LL4116.0"N/A
1989DodgeRam 50Base4WD2.0LL4105.0"N/A
1989DodgeRam 50RWD2.0LL4116.0"N/A
1989DodgeRam 50RWD2.6LL4116.0"N/A
1989DodgeRam 50RWD2.6LL4105.0"N/A
1989DodgeRam 504WD2.6LL4116.0"N/A
1989DodgeRam 50RWD2.0LL4105.0"N/A
1989MazdaRX-7Coupe1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1989MazdaRX-7Convertible1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1989MitsubishiMighty Max2.0LL4N/A
1989MitsubishiMighty Max2.6LL4N/A
1989NissanD214WD3.0LV6N/A
1989NissanD21RWD3.0LV6N/A
1989NissanPathfinder4WD3.0LV6N/A
1989NissanPathfinderRWD3.0LV6N/A
1988DodgeRam 50Base4WD2.0LL4116.0"N/A
1988DodgeRam 50RWD2.0LL4116.0"N/A
1988DodgeRam 50RWD2.6LL4116.0"N/A
1988DodgeRam 50RWD2.6LL4105.0"N/A
1988DodgeRam 504WD2.6LL4116.0"N/A
1988DodgeRam 50RWD2.0LL4105.0"N/A
1988DodgeRam 504WD2.6LL4105.0"N/A
1988MazdaRX-7GTU1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1988MazdaRX-7Convertible1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1988MazdaRX-7GXL 2+21.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1988MazdaRX-7GXL1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1988MazdaRX-7SE1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1988MazdaRX-7SE 2+21.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1988MitsubishiMighty Max2.0LL4N/A
1988MitsubishiMighty Max1 Ton2.6LL4N/A
1988MitsubishiMighty MaxSPX2.6LL4N/A
1988MitsubishiMighty MaxSport2.6LL4N/A
1988NissanD214WD3.0LV6N/A
1988NissanD21RWD3.0LV6N/A
1988NissanPathfinderSE4WD3.0LV6N/A
1988NissanPathfinderXE4WD3.0LV6N/A
1987DodgeRam 50RWD2.0LL4116.0"N/A
1987DodgeRam 50RWD2.6LL4116.0"N/A
1987DodgeRam 50RWD2.6LL4105.0"N/A
1987DodgeRam 504WD2.0LL4105.0"N/A
1987DodgeRam 504WD2.6LL4116.0"N/A
1987DodgeRam 50RWD2.0LL4105.0"N/A
1987DodgeRam 504WD2.6LL4105.0"N/A
1987MazdaRX-7LX1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1987MazdaRX-7Sport1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1987MazdaRX-7Base 2+21.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1987MazdaRX-7GXL 2+21.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1987MazdaRX-7Base1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1987MazdaRX-7GXL1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1987MazdaRX-7LX 2+21.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1987MitsubishiMighty Max2.0LL4N/A
1987MitsubishiMighty Max2.6LL4N/A
1987NissanD214WD3.0LV6N/A
1987NissanD21RWD3.0LV6N/A
1987NissanPathfinderSE4WD3.0LV6N/A
1987NissanPathfinderXE4WD3.0LV6N/A
1986MazdaRX-7Base1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1986MazdaRX-7GXL1.3LR2Y-Pipe To Muffler AssemblyLeft Hand and Right Hand
1986NissanD214WD3.0LV6N/A
1986NissanD21RWD3.0LV6N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

13021-113694-113795-1256-1014256-1041256-519EG24021EG24021-001EG24694EG24694-001EG24694-010EG24694-100EG24795EG24795-001EG24882EG24882-001

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
