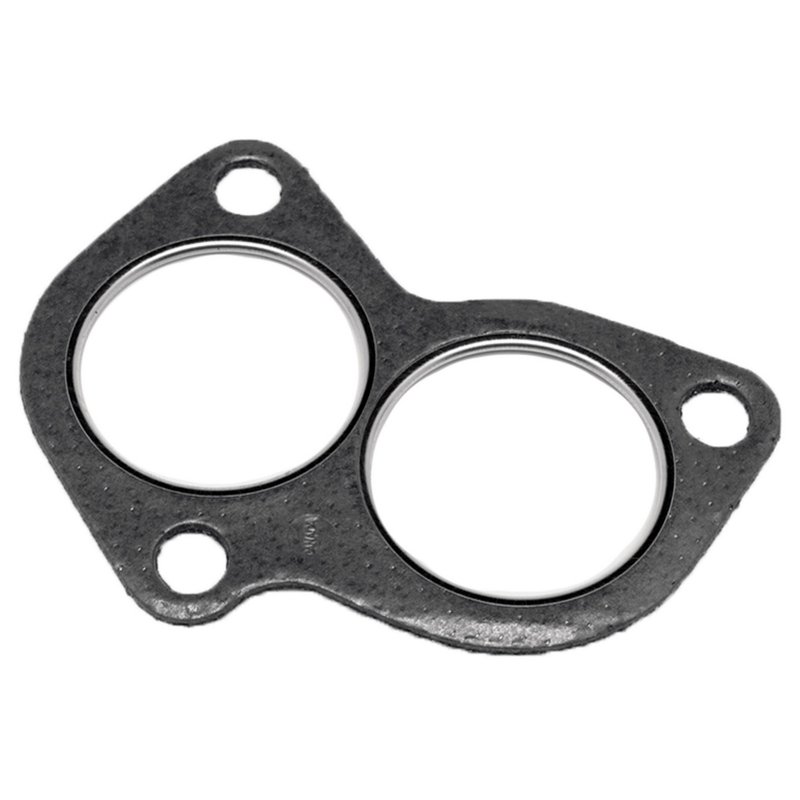

Walker 31314 Exhaust Pipe Flange Gasket

Overview of Walker Exhaust Pipe Flange Gasket 31314

The Walker 31314 exhaust pipe flange gasket is designed specifically for Volvo models 240, 740, 745, and 940. Engineered with a fiber material reinforced by a steel core and metal fire ring, this 3-bolt gasket ensures a reliable seal between exhaust pipe flanges, helping maintain proper exhaust system function.

• Compatible with Volvo 240, 740, 745, and 940 models
• 3-bolt gasket type with precise bolt hole spacing
• Constructed from fiber with steel core and metal fire ring for durability
• Port dimensions: 1.875 inches length and width for both ports
• Thickness of 0.05 inches for optimal sealing
• Bolt hole diameter of 0.5 inches with bolt hole centers at 3.5 and 2.875 inches

Detailed Product Description

The Walker 31314 exhaust pipe flange gasket is manufactured to meet the exact specifications required for Volvo 240, 740, 745, and 940 exhaust systems. Its 3-bolt design features bolt hole centers measuring 3.5 inches and 2.875 inches, accommodating the flange bolt pattern precisely. The gasket’s fiber material combined with a steel core and metal fire ring provides resistance to high temperatures and exhaust gases, reducing the risk of leaks and ensuring a secure connection between exhaust components. Both ports measure 1.875 inches in length and width, matching the exhaust pipe dimensions for a proper fit. With a thickness of 0.05 inches, this gasket balances compression and durability to maintain a tight seal over time.

Common Applications and Issues Addressed

• Sealing exhaust pipe flanges to prevent exhaust leaks
• Eliminating exhaust noise caused by gasket failure
• Preventing harmful exhaust gases from escaping into the engine bay
• Maintaining proper backpressure for engine performance
• Replacing worn or damaged gaskets during exhaust system repairs

Installation Notes and Tips

• Ensure mating flange surfaces are clean and free of debris before installation
• Use the correct torque specifications for flange bolts to avoid gasket damage
• Inspect exhaust flanges for warping or damage prior to gasket replacement
• Replace any rusted or damaged bolts to ensure a secure fit
• Check for exhaust leaks after installation and retighten bolts if necessary

Quality Assurance and Warranty

Walker exhaust gaskets are manufactured to meet industry standards for durability and performance. The 31314 gasket undergoes quality control checks to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Walker products typically come with a limited warranty against defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
