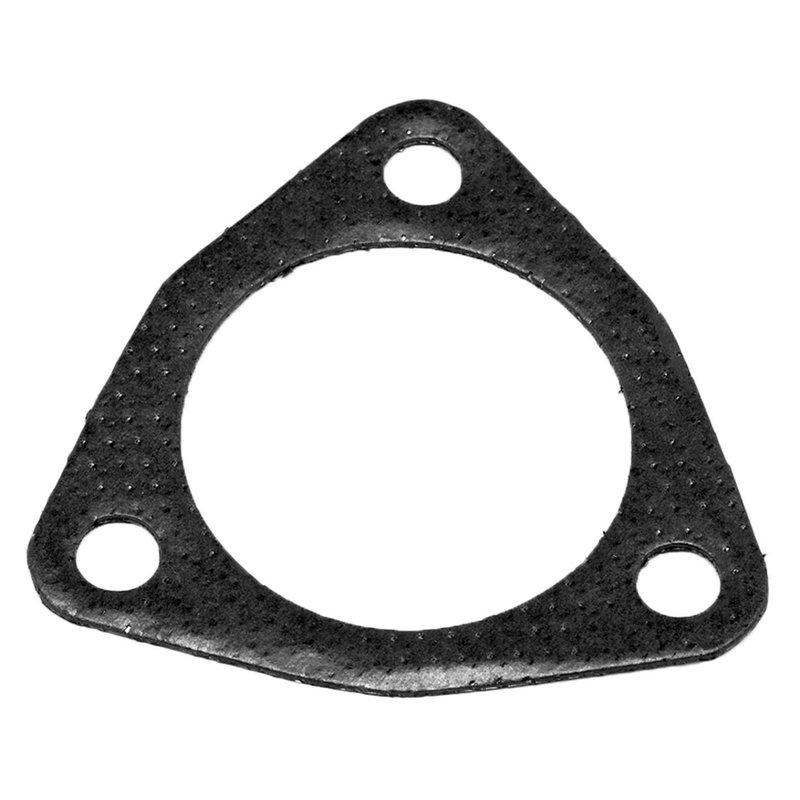

Walker 31327 Exhaust Pipe Flange Gasket - Converter To Muffler
| Brand | Walker 31327 |
|---|---|
| Position | Converter To Muffler |
| Bolt Hole Center To Bolt Hole Center 1 | 3 |
| Bolt Hole Diameter | 0.375 |
| Gasket Type | 3 Bolt |
| Material | Perforated Metal With Fiber Core And Metal Fire Ring |
| Port 1 Length | 1.875 |
| Port 1 Width | 1.875 |
| Thickness | 0.05 |
| Fits | Volkswagen, Nissan, and Audi · 29 vehicles |
OE-style fit. Works with OE exhaust components and Walker replacement parts.
Perforated metal construction. Fiber core and metal fire ring help create a tight seal.
3-bolt gasket. Built for exhaust flange connections with a secure, even clamp.
Cross-references BRExhaust 256-041, BRExhaust 256-624 and Champion Spark Plug 9030 for the same application. See all 9.
Walker 31327 Exhaust Pipe Flange Gasket
Walker 31327 is an exhaust pipe flange gasket built for sealing flange connections in repair and replacement exhaust work. It is shaped for OE-style exhaust components and Walker aftermarket replacement parts, with fitment coverage that includes Volkswagen Vanagon, Audi 4000, Audi 4000 Quattro, Nissan Sentra, Volkswagen Jetta, and Volkswagen Rabbit Convertible applications.
Key Features
- 3-bolt exhaust pipe flange gasket design
- Perforated metal construction with fiber core and metal fire ring
- Port opening measures 1.875 in. x 1.875 in.
- Thickness: 0.05 in.
- Bolt hole center to bolt hole center: 3 in.
- Bolt hole diameter: 0.375 in.
- Built for OE exhaust components and Walker replacement parts
Product Details
This Walker exhaust pipe flange gasket, part number 31327, is made for sealing a 3-bolt exhaust joint where a flange connection needs a precise fit. The perforated metal body, fiber core, and metal fire ring are specified to support a tight seal at the exhaust connection point. For buyers searching for a Walker 31327 exhaust flange gasket for Volkswagen Vanagon or Audi 4000 exhaust repair, this part matches the listed flange dimensions and application coverage.
This part cross-references BRExhaust 256-041 for the same application.
Common Repair Uses
- Exhaust leak at a flange connection
- Noise from a damaged or warped exhaust gasket surface
- Soot marks or odor at the pipe-to-flange joint
- Failed seal during muffler, converter, or pipe replacement
- Service work on Volkswagen Vanagon, Audi 4000, or Nissan Sentra exhaust systems
Installation Notes
Verify the flange pattern, port size, and bolt spacing before installation. This gasket is listed for 3-bolt exhaust connections with 3 in. bolt hole center spacing and 0.375 in. bolt holes. Confirm the vehicle application and position listed for your repair, including converter-to-muffler use on 1983-1991 Volkswagen Vanagon models.
- Fits 1986-1991 Volkswagen Vanagon, N/A
- Fits 1983-1991 Volkswagen Vanagon, Converter To Muffler
- Fits 1987-1988 Nissan Sentra, N/A, Split Point Induction
- Fits 1984-1987 Audi 4000, N/A
- Fits 1985-1986 Audi 4000 Quattro, N/A
- Fits 1983-1984 Volkswagen Jetta, N/A, without Canada Emissions
- Fits 1982 Volkswagen Rabbit Convertible, N/A
Quality Assurance
Walker supplies exhaust sealing components in styles and sizes intended to match OE exhaust service requirements and Walker replacement parts. Part number 31327 is specified with defined flange dimensions and material construction for consistent exhaust sealing performance.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1991 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | N/A | — |
| 1991 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | Converter To Muffler | — |
| 1990 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | N/A | — |
| 1990 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | Converter To Muffler | — |
| 1989 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | N/A | — |
| 1989 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | Converter To Muffler | — |
| 1988 | Nissan | Sentra | — | — | FWD | 1.6L | L4 | N/A | Split Point Induction |
| 1988 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | N/A | — |
| 1988 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | Converter To Muffler | — |
| 1987 | Audi | 4000 | — | — | — | 1.8L | L4 | N/A | — |
| 1987 | Nissan | Sentra | — | — | FWD | 1.6L | L4 | N/A | Split Point Induction |
| 1987 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | N/A | — |
| 1987 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | Converter To Muffler | — |
| 1986 | Audi | 4000 | — | — | — | 2.2L | L5 | N/A | — |
| 1986 | Audi | 4000 | — | — | — | 1.8L | L4 | N/A | — |
| 1986 | Audi | 4000 Quattro | — | — | — | 2.2L | L5 | N/A | — |
| 1986 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | N/A | — |
| 1986 | Volkswagen | Vanagon | — | — | — | 2.1L | H4 | Converter To Muffler | — |
| 1985 | Audi | 4000 | — | — | — | 2.2L | L5 | N/A | — |
| 1985 | Audi | 4000 | — | — | — | 1.8L | L4 | N/A | — |
| 1985 | Audi | 4000 Quattro | — | — | — | 2.2L | L5 | N/A | — |
| 1985 | Volkswagen | Vanagon | — | — | — | 1.9L | H4 | Converter To Muffler | — |
| 1984 | Audi | 4000 | — | — | — | 1.8L | L4 | N/A | — |
| 1984 | Volkswagen | Jetta | GL | — | — | 1.7L | L4 | N/A | without Canada Emissions |
| 1984 | Volkswagen | Jetta | Base | — | — | 1.7L | L4 | N/A | without Canada Emissions |
| 1984 | Volkswagen | Vanagon | — | — | — | 1.9L | H4 | Converter To Muffler | — |
| 1983 | Volkswagen | Jetta | — | — | — | 1.7L | L4 | N/A | without Canada Emissions |
| 1983 | Volkswagen | Vanagon | — | — | — | 1.9L | H4 | Converter To Muffler | — |
| 1982 | Volkswagen | Rabbit Convertible | — | Convertible | — | 1.7L | L4 | N/A | — |
| No rows match your filter. | |||||||||
