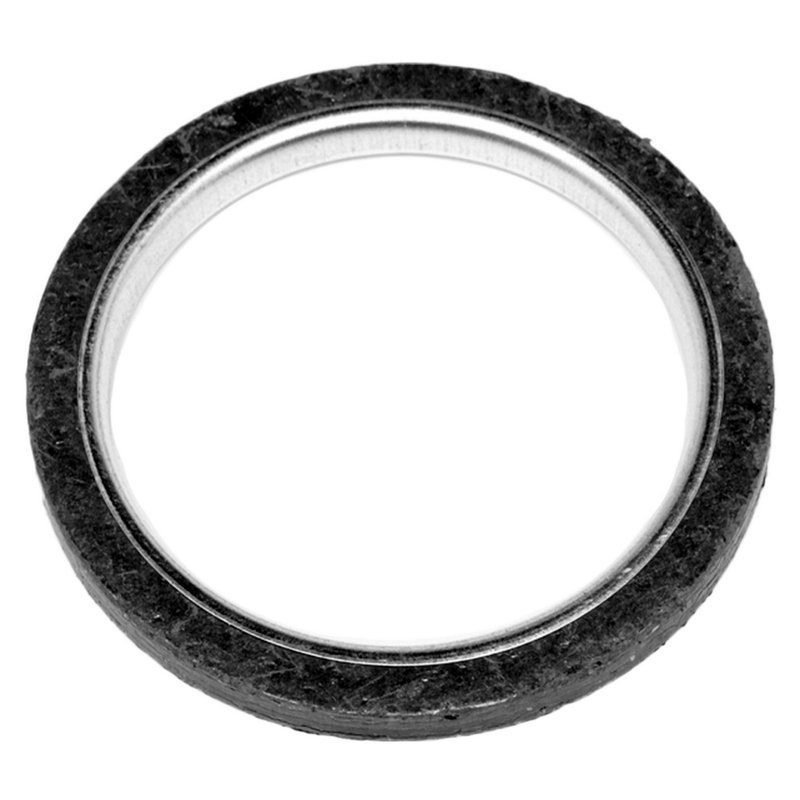

Walker 31334 Exhaust Pipe Flange Gasket

Walker 31334 Exhaust Pipe Flange Gasket

Walker 31334 is a ring-style exhaust pipe flange gasket built with a fiber body and steel core for sealing exhaust joints in select Nissan, Acura, Lexus, Chevrolet, Honda, Pontiac, Geo, and Toyota applications. It is sized for a 1.875-inch inside diameter, 2.375-inch outside diameter, and 0.18-inch thickness to match the specified exhaust connection.

Key Features

• Ring gasket design for exhaust flange sealing
• Fiber with steel core construction for added support at the joint
• 1.875-inch inside diameter for the listed exhaust connection size
• 2.375-inch outside diameter and 0.18-inch thickness
• Works with OE exhaust components and Walker aftermarket replacement parts
• Walker part number 31334 for easy identification

Detailed Description

Walker 31334 is an exhaust pipe flange gasket used to seal mating exhaust surfaces and help maintain a tight connection where exhaust sections join. Walker positions this gasket for use with OE exhaust components and its aftermarket replacement parts, making it a direct service part for repair work on vehicles such as the Nissan Sentra, Nissan Altima, and Toyota Corolla. This part cross-references Anchor 9066 for the same application.

With its fiber construction and steel core, this gasket is built for the demands of exhaust sealing at flange connections. The ring profile and specified dimensions support a proper fit at the listed joints, including resonator assembly to muffler assembly, resonator assembly to muffler, and front converter to rear converter locations. Walker 31334 is also referenced in repair catalogs under the same part number for straightforward lookup.

Vehicle Fitment

• Fits 2018-2019 Nissan Sentra, resonator assembly to muffler assembly.
• Fits 2013-2017 Nissan Sentra, resonator assembly to muffler assembly, with Federal Emission System.
• Fits 2013-2017 Nissan Sentra, resonator assembly to muffler assembly, with California Emission System.
• Fits 2009-2014 Nissan Cube, resonator assembly to muffler.
• Fits 2004-2009 Nissan Quest, front converter to rear converter.
• Fits 2004-2008 Nissan Maxima, front converter to rear converter.
• Fits 2002-2006 Nissan Altima, front converter to rear converter.
• Fits 2000-2006 Nissan Sentra, N/A.
• Fits 2001-2003 Acura CL, resonator assembly to right muffler assembly.
• Fits 2001-2003 Acura CL, resonator assembly to left muffler assembly.
• Fits 1999-2003 Acura TL, resonator assembly to left muffler assembly.
• Fits 1999-2003 Acura TL, resonator assembly to right muffler assembly.
• Fits 1999-2003 Lexus RX300, N/A.
• Fits 1997-2002 Chevrolet Cavalier, N/A.
• Fits 1998-2002 Chevrolet Prizm, resonator assembly to muffler assembly.
• Fits 1998-2002 Honda Accord, N/A.
• Fits 1997-2002 Pontiac Sunfire, N/A.
• Fits 1998-2002 Toyota Corolla, resonator assembly to muffler assembly.
• Fits 1996-1997 Geo Prizm, resonator assembly to muffler.
• Fits 1993-1997 Toyota Corolla, resonator assembly to muffler.
• Fits 1993-1995 Geo Prizm, resonator assembly to muffler assembly.

Common Repair Uses

• Sealing an exhaust leak at a flange connection
• Replacing a worn gasket during muffler or resonator service
• Restoring a tight seal between converter sections on listed Nissan applications
• Addressing exhaust noise caused by a damaged sealing ring
• Supporting repair work on Nissan Sentra, Nissan Altima, and Toyota Corolla exhaust joints

Installation Notes

Inspect the flange faces for corrosion, warping, or carbon buildup before installation. Clean both mating surfaces thoroughly so the gasket can seat evenly, and verify the joint dimensions match the 1.875-inch inside diameter and related flange size before assembly. Use the exact vehicle position listed in the fitment data, such as resonator assembly to muffler assembly or front converter to rear converter, to confirm application on your Nissan Sentra, Nissan Altima, or Toyota Corolla repair.

Quality Assurance

Walker manufactures exhaust sealing components for use with OE-style exhaust systems and Walker replacement parts. Part number 31334 is built to the stated material and dimensional specifications for service replacement use.
