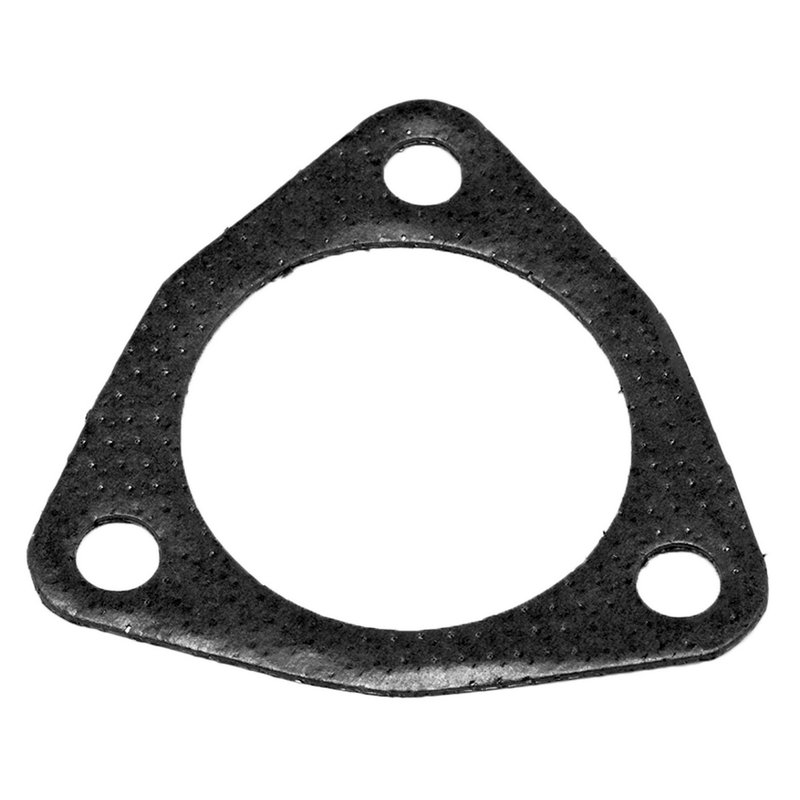

Walker 31390 Exhaust Pipe Flange Gasket - Converter To Resonator Assembly

Exhaust Pipe Flange Gasket for OE-Style Repairs

Walker 31390 is an exhaust pipe flange gasket built for sealing three-bolt exhaust connections in repair and replacement applications. It is sized for a 2.25 x 2.25 port opening and uses a perforated metal construction with a fiber core and fire ring to support a secure seal at the flange joint.

Use this gasket when servicing exhaust connections on vehicles such as Audi A4, Audi A4 Quattro, Volkswagen Passat, Saturn Vue, BMW 325i, and Volvo 240. The Walker 31390 is made to work with OE exhaust components and Walker aftermarket replacement parts.

Key Features

• Three-bolt exhaust pipe flange gasket design
• Perforated metal with fiber core and fire ring construction
• Port opening measures 2.25 x 2.25
• Bolt hole center to center: 2.875
• Bolt hole diameter: 0.375
• Thickness: 0.058
• Walker 31390 for exhaust flange sealing service

Detailed Product Overview

This exhaust pipe flange gasket is intended for sealing the joint between exhaust components where a three-bolt flange is used. The perforated metal body adds structure, while the fiber core and fire ring help maintain a tight seal at the connection point. Walker 31390 is a practical choice for exhaust repair work on OE-style systems, including applications on 1997-2006 Audi A4, 1997-2009 Audi A4 Quattro, 1998-2005 Volkswagen Passat, 2002-2007 Saturn Vue converter to resonator assembly, 1992-1995 BMW 325i, and 1990-1993 Volvo 240.

This part cross-references Walker Exhaust 31611 for the same application.

Common Repair Uses

• Exhaust leak at a three-bolt flange connection
• Noise from a damaged or flattened flange gasket
• Loss of sealing after exhaust service or component replacement
• Corrosion-related sealing failure at the pipe joint
• Fitment service on Audi A4, Audi A4 Quattro, and Volkswagen Passat exhaust connections

Installation Notes and Tips

Confirm flange style, bolt spacing, and port dimensions before installation. The gasket should match the three-bolt pattern and the 2.25 x 2.25 port opening for proper alignment. Clean both mating surfaces thoroughly so the gasket can seat evenly and seal correctly. For best results, inspect the flange faces and fasteners for wear or distortion before reassembly.

Quality Assurance

Walker supplies exhaust sealing components in a range of styles and sizes for use with OE exhaust systems and Walker replacement parts. Part number 31390 is built to the listed dimensional specifications for direct exhaust flange service.
