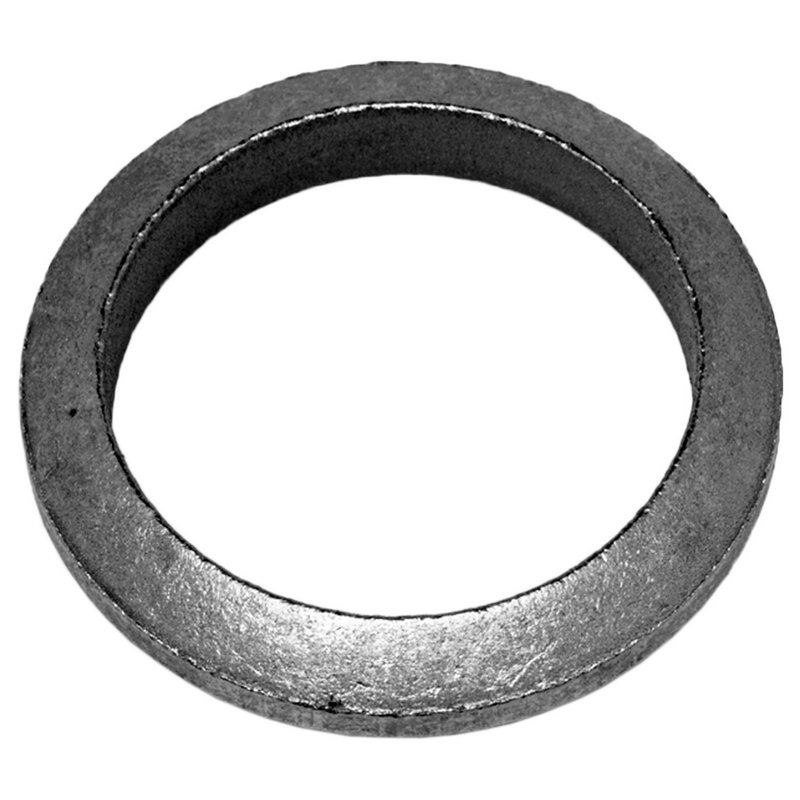

Walker 31416 Exhaust Pipe Flange Gasket - Resonator Assembly To Muffler Assembly

Overview of Walker Exhaust Pipe Flange Gasket 31416

The Walker 31416 exhaust pipe flange gasket is engineered for reliable sealing in exhaust systems of various vehicles including Audi, Chevrolet, Ford, GMC, Isuzu, and Volvo models. Designed with durable sintered iron material, this donut-type gasket ensures a secure fit and effective exhaust leak prevention.

• Inside diameter: 2 inches for precise fitment
• Outside diameter: 2.5 inches to match flange specifications
• Thickness: 0.51 inches for optimal sealing pressure
• Donut-style gasket design for exhaust pipe flange connections
• Constructed from sintered iron for heat resistance and durability

Detailed Product Description

The Walker 31416 exhaust pipe flange gasket is a sintered iron donut gasket designed to provide a tight seal between exhaust pipe flanges. Its 2-inch inside diameter and 2.5-inch outside diameter accommodate specific flange sizes commonly found on vehicles such as the Audi 80 Quattro, Chevrolet C10 Suburban, Ford F-150, GMC Jimmy, Isuzu LUV, and Volvo 740. The 0.51-inch thickness ensures proper compression and sealing under high-temperature exhaust conditions, reducing the risk of leaks and exhaust noise.

Compatible Vehicles and Applications

• Compatible with Audi models 80, 80 Quattro, 90, 90 Quattro, and 100 Quattro
• Fits Chevrolet trucks including C10, C10 Suburban, C20, C20 Suburban, C30, and Corvette
• Suitable for Ford trucks such as Bronco, F-100, F-150, F-250, and F-350
• Works with GMC models including Jimmy, K5 Blazer, K10 Suburban, K20 Suburban, and K3500
• Also compatible with Isuzu LUV and Volvo 740, 745, and 940 series

Common Issues Addressed by This Gasket

• Prevents exhaust leaks at pipe flange connections
• Reduces exhaust noise caused by gasket failure
• Maintains proper exhaust system pressure and flow
• Protects against corrosion and heat damage in flange areas
• Ensures compliance with emissions standards by preventing leaks

Installation Notes and Tips

• Ensure mating flange surfaces are clean and free of debris before installation
• Use proper torque specifications to avoid over-compressing the gasket
• Inspect exhaust flanges for damage or warping prior to gasket replacement
• Replace gasket whenever exhaust components are disassembled to maintain seal integrity

Quality Assurance and Warranty

Walker exhaust gaskets are manufactured to meet OEM specifications using high-quality sintered iron material for durability and heat resistance. The 31416 gasket undergoes rigorous quality control to ensure consistent fit and performance. While specific warranty details may vary, Walker products typically come with a limited warranty against defects in material and workmanship.
