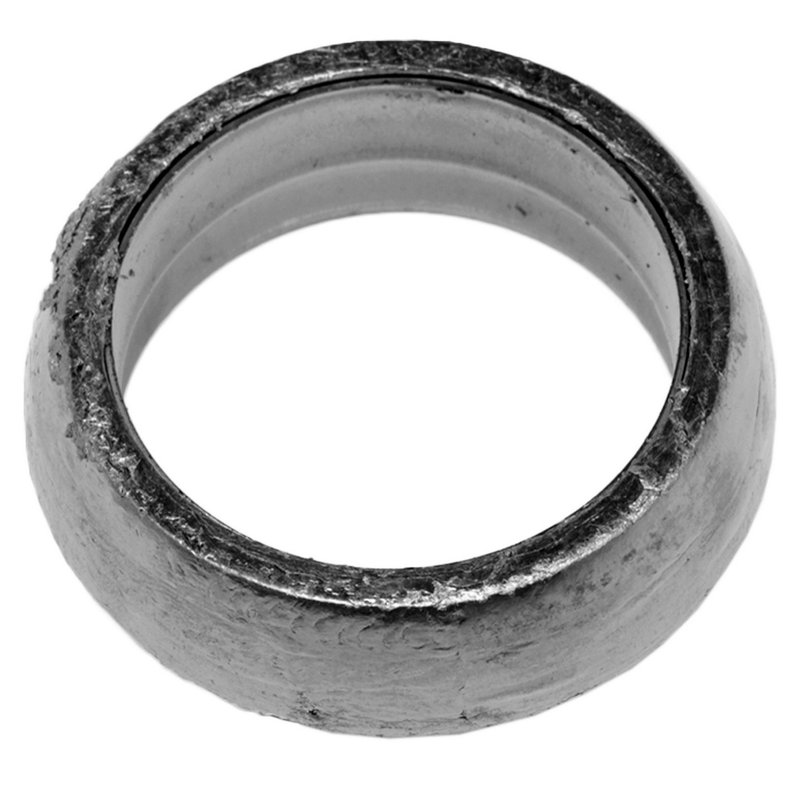

Walker 31511 Exhaust Pipe Flange Gasket

Overview of Walker 31511 Exhaust Pipe Flange Gasket

The Walker 31511 exhaust pipe flange gasket is engineered for reliable sealing in exhaust systems of select GM vehicles. Designed with high temperature graphite and a wire mesh core, this donut-style gasket ensures a secure fit and durability for models like Buick LeSabre, Chevrolet Caprice, and Pontiac Firebird.

• Donut-type exhaust pipe flange gasket
• Inside diameter: 2.375 inches
• Outside diameter: 2.875 inches
• Thickness: 0.66 inches
• Constructed from high temperature graphite with wire mesh core

Technical Details and Material Composition

The Walker 31511 gasket features a donut design optimized for exhaust pipe flange connections. Its 2.375-inch inside diameter and 2.875-inch outside diameter accommodate precise sealing requirements. The 0.66-inch thickness provides adequate compression and resilience under thermal cycling. The high temperature graphite material combined with a wire mesh core offers resistance to heat and exhaust gases, maintaining integrity over time in demanding conditions.

Compatible Vehicles and Applications

This exhaust pipe flange gasket is compatible with a range of General Motors vehicles, including Buick, Cadillac, Chevrolet, GMC, Oldsmobile, and Pontiac models. Notable compatible vehicles include the Buick LeSabre and Riviera, Chevrolet Caprice and C2500/C3500 trucks, Pontiac Firebird and Catalina, as well as Oldsmobile Cutlass variants and Cadillac Fleetwood. The part number 31511 is specifically designed to meet the exhaust sealing needs of these models.

Common Issues Addressed by Walker 31511 Gasket

• Prevents exhaust leaks at pipe flange connections
• Reduces noise caused by escaping exhaust gases
• Maintains proper exhaust system backpressure
• Protects against corrosion and gasket material degradation
• Ensures compliance with emission control standards

Installation Notes and Tips

• Ensure mating flange surfaces are clean and free of debris before installation
• Use appropriate torque specifications to avoid over-compression or damage
• Inspect exhaust pipe flanges for warping or damage prior to gasket replacement
• Replace gasket whenever exhaust components are disassembled to maintain seal integrity

Quality Assurance and Warranty Information

Walker exhaust gaskets are manufactured to meet OEM specifications for durability and performance. The 31511 gasket undergoes rigorous quality control to ensure consistent material properties and fitment accuracy. While specific warranty details may vary, Walker products typically come with a limited warranty against defects in materials and workmanship.
