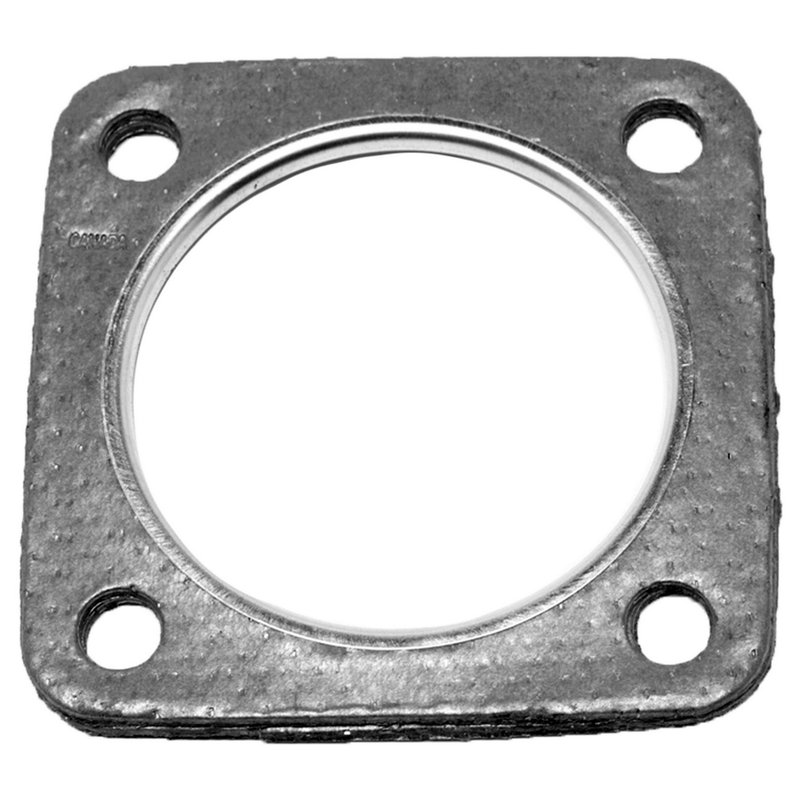

Walker 31519 Exhaust Pipe Flange Gasket

Overview of Walker Exhaust Pipe Flange Gasket 31519

The Walker 31519 exhaust pipe flange gasket is designed to provide a reliable seal for exhaust systems on select Chevrolet, Dodge, Geo, Honda, Isuzu, and Jeep vehicles. Engineered with perforated metal and fiber laminate, this 4-bolt gasket ensures a secure fit and helps prevent exhaust leaks in models such as the Jeep Cherokee, Chevrolet Corvette, and Dodge Comanche.

• 4-bolt gasket type for secure exhaust flange sealing
• Constructed from perforated metal and fiber laminate for durability
• Bolt hole center-to-center spacing of 2.5 inches
• Bolt hole diameter of 0.375 inches
• Port dimensions: 2.75 inches length and width
• Thickness of 0.06 inches for optimal sealing

Detailed Product Description

The Walker 31519 exhaust pipe flange gasket is specifically designed to fit exhaust flanges requiring a 4-bolt pattern with bolt holes spaced 2.5 inches apart center to center. The gasket's 0.375-inch bolt hole diameter accommodates standard exhaust flange bolts, ensuring proper alignment and a tight seal. Its 2.75-inch port length and width match common exhaust pipe flange dimensions found on vehicles like the Jeep Wrangler and Geo Storm. The 0.06-inch thickness balances compression and durability, while the combination of perforated metal and fiber laminate materials provides resistance to heat and exhaust gases, maintaining a secure seal over time.

Compatible Vehicles and Applications

This exhaust pipe flange gasket is compatible with a range of vehicles, including Chevrolet Corvette and Monaco, Dodge Comanche and Pickup, Geo Amigo and Stylus, Honda Passport, Isuzu Rodeo, and Jeep Cherokee, Trooper, Wagoneer, and Wrangler. It is intended for use in exhaust systems where a 4-bolt flange gasket is required to prevent exhaust leaks and maintain system integrity.

• Seals exhaust pipe flanges to prevent leaks
• Replaces worn or damaged exhaust gaskets
• Prevents exhaust noise and fumes from escaping
• Maintains proper exhaust system pressure
• Helps avoid exhaust system corrosion at flange joints

Installation Notes and Tips

When installing the Walker 31519 gasket, ensure the exhaust flange surfaces are clean and free of debris or old gasket material. Align the gasket carefully with the 4 bolt holes and port dimensions to avoid misalignment. Tighten bolts evenly in a crisscross pattern to achieve a uniform seal without over-tightening, which could damage the gasket. This gasket is designed for direct replacement and does not require modification.

Quality Assurance and Warranty

Walker exhaust gaskets are manufactured to meet industry standards for durability and performance. The 31519 gasket is made from high-quality perforated metal and fiber laminate materials to withstand high temperatures and exhaust system conditions. While specific warranty details are not provided, Walker products typically come with a limited warranty against defects in materials and workmanship.
