Walker 31539 Exhaust Pipe Flange Gasket
OE Quality 60-Day Returns
Walker

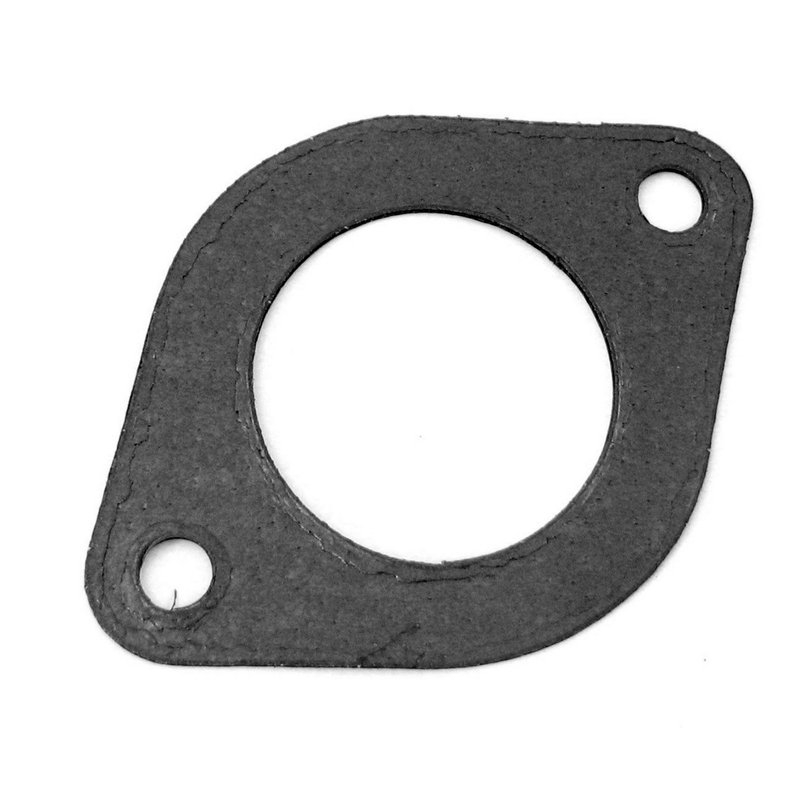

Walker 31539 Exhaust Pipe Flange Gasket

Brand Walker 31539
Bolt Hole Center To Bolt Hole Center 1 3.875
Bolt Hole Diameter 0.5
Gasket Type 2 Bolt
Material Fiber With Steel Core
Port 1 Length 2.125
Port 1 Width 2.125
Thickness 0.058
Fits Subaru · 4 vehicles

OE-compatible fit. Works with OE exhaust components and Walker aftermarket replacement parts.

Fiber with steel core. Combines sealing material with a steel core for added support.

2-bolt gasket. Built for exhaust flange sealing in a simple two-bolt design.

Cross-references 13886-1, EG24466 and EG24886 for the same application. See all 3.

$12.87Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $12.87
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Exhaust Pipe Flange Gasket options

Walker 31539 Exhaust Pipe Flange Gasket

Walker 31539 is an exhaust pipe flange gasket built for a 2-bolt flange connection. It uses fiber with a steel core to help maintain a tight seal at the exhaust joint, and its dimensions are sized for the specified port and bolt pattern. This gasket is a direct-fit style option for 2004 Subaru Legacy and Outback with 3 catalytic converter, as well as 2005 Subaru Legacy and Outback SULEV applications.

Key Features

  • 2-bolt exhaust pipe flange gasket design
  • Fiber with steel core construction for sealing support
  • Bolt hole center to bolt hole center: 3.875 in.
  • Bolt hole diameter: 0.5 in.
  • Port size: 2.125 in. x 2.125 in.
  • Thickness: 0.058 in.
  • Walker 31539 for OE exhaust component and Walker replacement part applications

Detailed Description

Walker 31539 is made for exhaust repair work where the flange connection needs a precise sealing surface. The fiber material with steel core helps the gasket hold shape at the joint, while the 2-bolt layout and listed dimensions support proper alignment at the exhaust pipe flange. For Subaru Legacy and Subaru Outback models in the listed years, this gasket matches the specified exhaust configurations and supports a clean seal at the connection point. This part cross-references Monroe Shocks & Struts (e.g., 13886-1, EG24466) for the same application.

Common Repair Uses

  • Exhaust leak at the flange connection
  • Noise from a damaged or worn gasket surface
  • Loss of sealing after exhaust service
  • Replacement during catalytic converter or pipe repair
  • Fitment correction for Subaru Legacy and Outback exhaust joints

Installation Notes and Tips

Confirm the flange pattern, bolt hole spacing, and port dimensions before installation. Clean both mating surfaces thoroughly so the gasket seats evenly, and inspect the flange for warping or corrosion that could affect sealing. Use the listed fitment details to verify the correct Subaru Legacy or Subaru Outback application before assembly.

Quality Assurance

Walker supplies exhaust sealing components for OE exhaust systems and Walker aftermarket replacement parts, with a focus on fitment and serviceable sealing performance. Part number 31539 is built to match the listed exhaust flange specifications for the confirmed Subaru applications.

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2005SubaruLegacy2.5LH4N/ASuper Ultra Low Emission Vehicle (SULEV)
2005SubaruOutback2.5LH4N/ASuper Ultra Low Emission Vehicle (SULEV)
2004SubaruLegacy2.5LH4N/Awith 3 Catalytic Converter
2004SubaruOutback2.5LH4N/Awith 3 Catalytic Converter
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
13886-1EG24466EG24886
