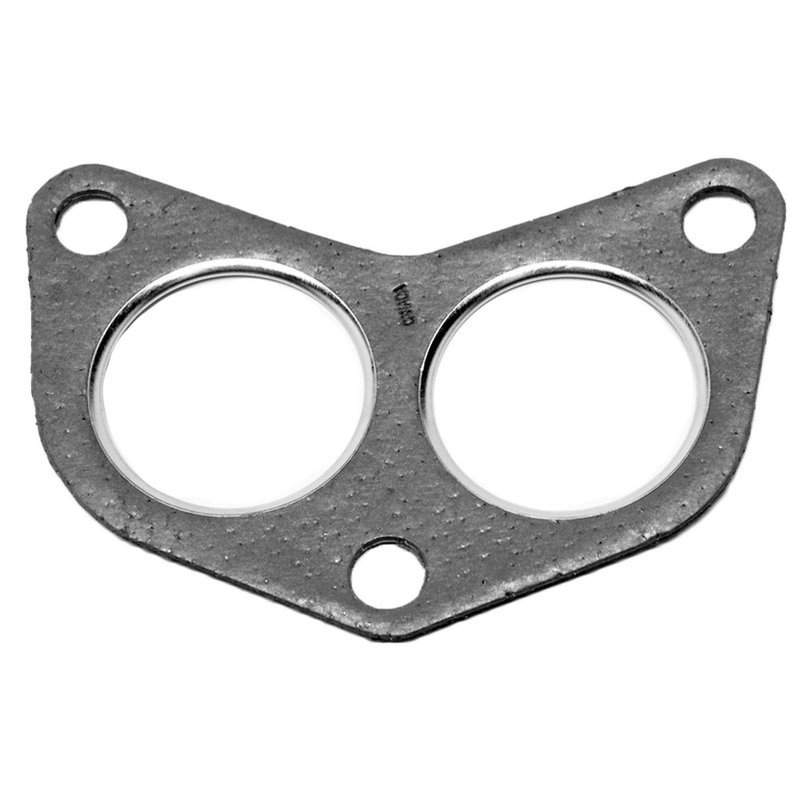

Walker 31542 Exhaust Pipe Flange Gasket

Walker 31542 Exhaust Pipe Flange Gasket

Walker 31542 is an exhaust pipe flange gasket built for 3-bolt exhaust connections. It uses a metal construction with a fiber core and measures 0.09 in. thick, with 0.375 in. bolt holes and 1.625 in. port dimensions for each opening. This gasket is made for OE exhaust components and Walker aftermarket replacement parts on applications such as the Geo Tracker, Suzuki Sidekick, and Nissan 200SX.

Key Features

• 3-bolt exhaust pipe flange gasket design
• Metal with fiber core construction
• Thickness: 0.09 in.
• Bolt hole diameter: 0.375 in.
• Bolt hole center spacing: 4.000 in. on the primary span, 1.625 in. on the remaining spans
• Port size: 1.625 in. x 1.625 in. for each port
• Direct replacement style for exhaust sealing service

Product Details

Walker 31542 is used at the exhaust flange to seal the joint between pipe sections and help maintain a tight exhaust connection. The metal body adds structure while the fiber core supports sealing at the flange interface. This part cross-references Anchor 8734 for the same application. It is a practical choice for exhaust repair work on 1989-1995 Geo Tracker, 1989-1995 Suzuki Sidekick, and 1986-1988 Nissan 200SX applications, including Walker 31542 replacement searches for those vehicles.

Common Repair Uses

• Exhaust leak at a flange connection
• Noise from a worn or damaged pipe seal
• Loss of sealing after exhaust service
• Replacement of a flattened or corroded gasket surface
• Restoring a secure seal on a 3-bolt exhaust joint

Installation Notes

Verify flange pattern, bolt hole spacing, and port dimensions before installation. Clean both mating surfaces thoroughly so the gasket seats evenly, and inspect the flange for warping, rust, or pitting that could affect sealing. Confirm the application matches the vehicle and exhaust component layout before installing Walker 31542.

Quality Assurance

Walker supplies exhaust sealing components in multiple styles and sizes for use with OE exhaust parts and Walker replacement systems. Walker 31542 is built to match the listed flange dimensions and fitment requirements for the specified applications.
