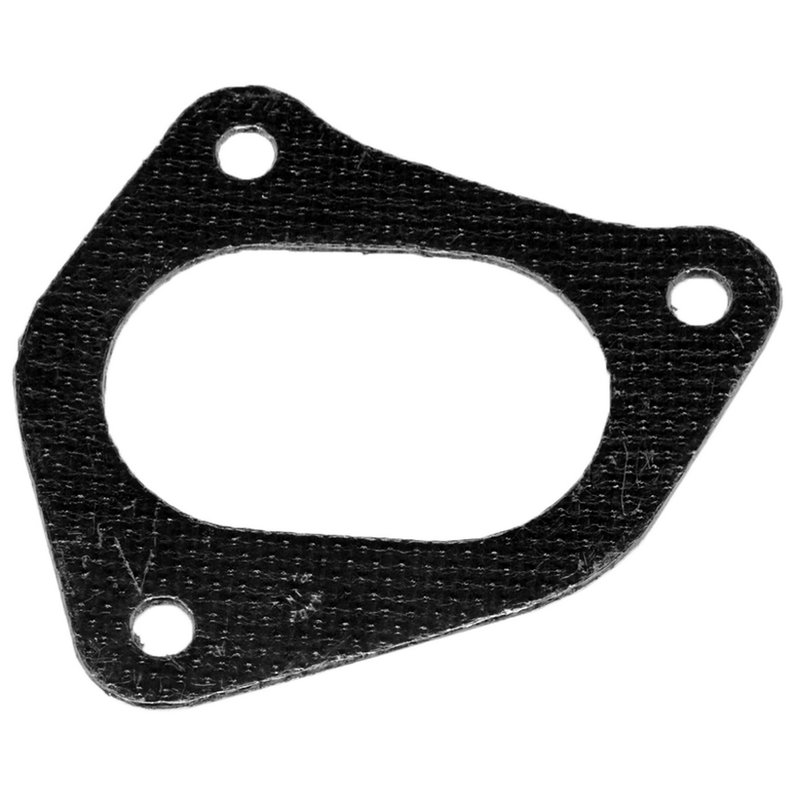

Walker 31545 Exhaust Pipe Flange Gasket - Y-Pipe To Converter

Walker 31545 Exhaust Pipe Flange Gasket

Walker 31545 is a 3-bolt exhaust pipe flange gasket built for exhaust repair work where a secure seal is needed between OE exhaust components and Walker aftermarket replacement parts. It uses a fiber construction with a steel core and is sized for specific flange dimensions to support a proper exhaust connection on select Ford, Mazda, and Bronco II applications.

Key Features

• 3-bolt exhaust pipe flange gasket for flange-to-flange sealing
• Fiber with steel core construction for added sealing support
• Port 1 length: 3.5 in. and port 1 width: 2.25 in.
• Thickness: 0.06 in. for a low-profile seal surface
• Bolt hole diameter: 0.5 in.
• Bolt hole center spacing: 3.25 in., 2.75 in., and 3.75 in.
• Designed to work with OE exhaust components and Walker replacement parts

Detailed Description

This Walker exhaust pipe flange gasket, part number 31545, is made for exhaust system service where the flange connection must seal cleanly under heat and vibration. The fiber material with a steel core helps maintain gasket integrity at the joint, while the 3-bolt layout and listed port dimensions support a precise fit at the exhaust flange. Walker 31545 is a practical choice for repairs involving the Y-pipe to converter connection on 1991-1994 Ford Explorer, 1988-1992 Ford Ranger, 1988-1990 Ford Bronco II, 1991-1992 Mazda Navajo, and 1993-1994 Ford Ranger and Mazda Navajo applications.

This part cross-references Anchor 9263 for the same application.

What It Helps Fix

• Exhaust leaks at a 3-bolt flange connection
• Noise from a worn or damaged gasket at the Y-pipe to converter joint
• Loss of sealing after exhaust service or component replacement
• Fitment issues when replacing a deteriorated flange gasket on select Ford Ranger and Ford Explorer applications
• Sealing problems on compatible Mazda Navajo and Ford Bronco II exhaust connections

Installation Notes and Tips

Confirm flange bolt spacing, bolt hole diameter, and port dimensions before installation. Clean both mating surfaces thoroughly so the gasket can seat evenly, and inspect the flange for warping, corrosion, or damage that could affect sealing. This part is listed for Y-pipe to converter positions on select vehicles and for N/A positions on others, so verify the exact exhaust joint before ordering.

Quality Assurance

Walker supplies exhaust gaskets and flanges in multiple styles and sizes for use with OE exhaust components and Walker aftermarket replacement parts. Part number 31545 is built to match the listed application dimensions and fitment coverage for select Ford and Mazda vehicles.
