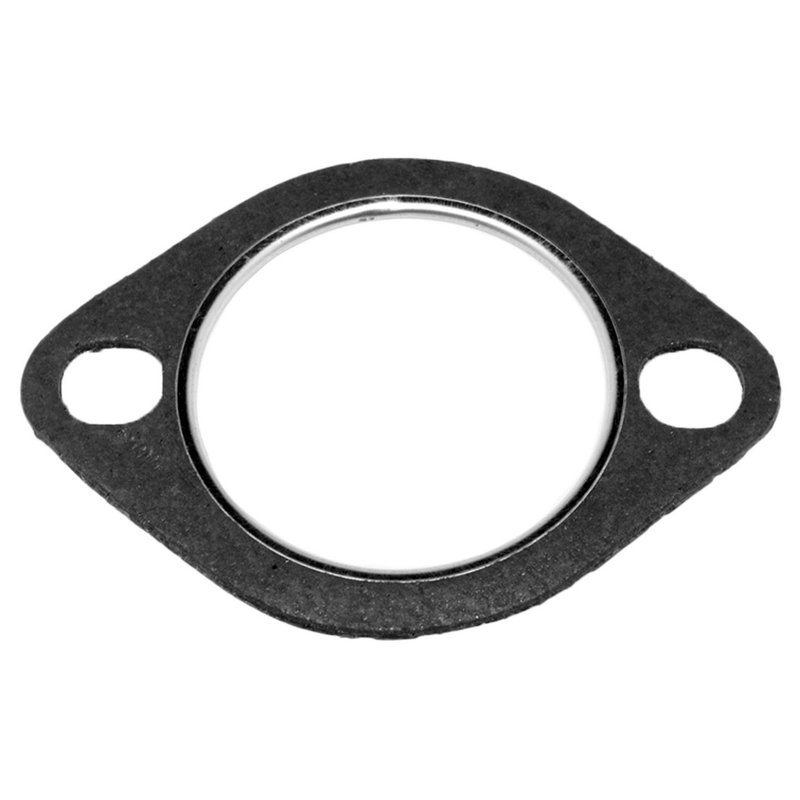

Walker 31547 Exhaust Pipe Flange Gasket - Rear Converter To Resonator Assembly or Resonator Assembly To Muffler Assembly

Exhaust Pipe Flange Gasket for OE-Style Repairs

Walker 31547 is an exhaust pipe flange gasket built for sealing two-bolt exhaust connections. It uses a fiber construction with a steel core to help maintain a tight seal at the flange joint, making it a practical choice for exhaust repair work on vehicles such as Jeep Cherokee, Chrysler 200, and Mazda applications.

Designed to work with OE exhaust components and Walker aftermarket replacement parts, this gasket supports direct-fit exhaust sealing at the flange connection. The 2-bolt layout, 3.500-inch bolt hole center spacing, and 2.5 x 2.5-inch port size make Walker 31547 a focused replacement for specific exhaust pipe flange applications.

Key Features

• Exhaust pipe flange gasket for 2-bolt exhaust connections
• Fiber with steel core construction for sealing support
• 3.500-inch bolt hole center to bolt hole center
• 0.5-inch bolt hole diameter
• 2.5-inch by 2.5-inch port dimensions
• 0.058-inch thickness
• Works with OE exhaust components and Walker replacement parts
• Walker 31547 fitment includes Jeep Cherokee, Chrysler 200, and Mazda 626, Mazda 929, Mazda MX-6, and Ford Probe applications

Detailed Description

Walker 31547 is an exhaust flange gasket designed for sealing a two-bolt exhaust joint where a secure connection is needed between exhaust components. The fiber material with a steel core provides a stable sealing surface, while the specified bolt spacing, bolt hole diameter, and port dimensions help match the flange geometry used in the listed applications. This part number is commonly searched as Walker 31547 and 31547 for exhaust repair and replacement work.

Compatible vehicle coverage includes 2014-2018 Jeep Cherokee, 2015-2017 Chrysler 200, 1993-1997 Mazda 626 at the resonator assembly to muffler assembly position, 1988-1995 Mazda 626, 1992-1995 Mazda 929 at the rear converter to resonator assembly position and resonator assembly to muffler assembly position, 1989-1992 Ford Probe, and 1988-1992 Mazda MX-6 except 4 wheel steering. This makes Walker 31547 a relevant search match for exhaust flange gasket replacement on Jeep Cherokee, Chrysler 200, and Mazda exhaust service jobs.

This part cross-references BRExhaust 256-837 for the same application.

What It Helps Repair

• Exhaust leaks at a two-bolt flange connection
• Noise from a worn or damaged exhaust gasket
• Soot marks or odor at the exhaust joint
• Loss of sealing between exhaust pipe sections
• Fitment issues during exhaust component replacement on listed Jeep, Chrysler, Mazda, and Ford models

Installation Notes and Tips

Confirm flange style, bolt spacing, and port dimensions before installation. Clean both mating surfaces thoroughly so the gasket seats evenly, and inspect the flange for warping, corrosion, or damage that could affect sealing. Use the listed position information when matching the part to the exhaust joint on your vehicle, including resonator assembly to muffler assembly and rear converter to resonator assembly applications where specified.

Quality Assurance

Walker designs this gasket for use with OE exhaust components and Walker aftermarket replacement parts, supporting a direct replacement approach for exhaust sealing service. Verify application details against the vehicle and exhaust configuration before installation.
