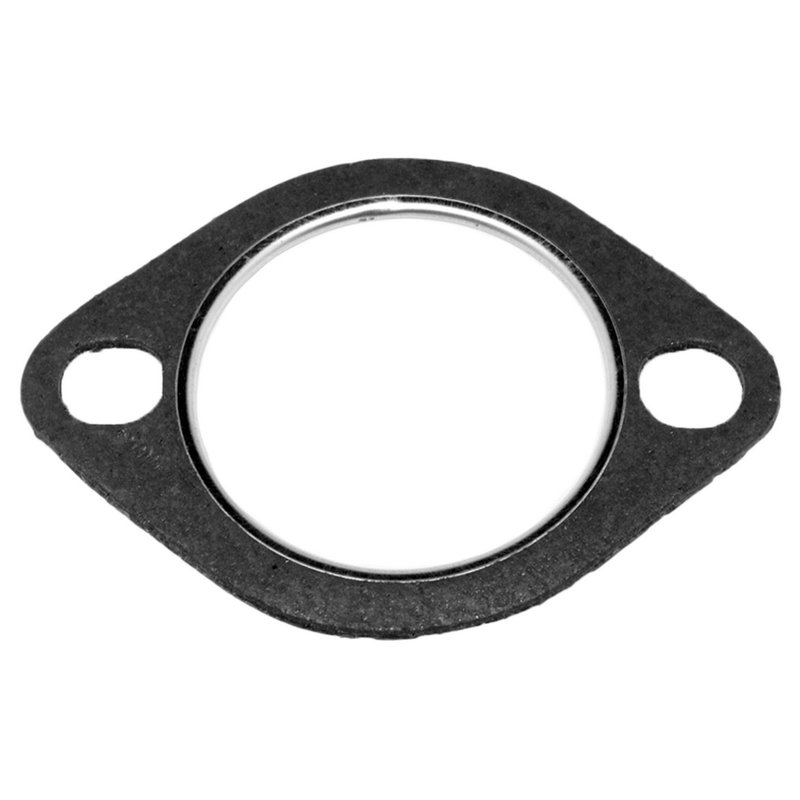

Walker 31560 Exhaust Pipe Flange Gasket - Converter To Resonator Assembly
| Brand | Walker 31560 |
|---|---|
| Position | Converter To Resonator Assembly |
| Bolt Hole Center To Bolt Hole Center 1 | 4.375 |
| Bolt Hole Diameter | 0.5 |
| Gasket Type | 2 Bolt |
| Material | Perforated Metal With Fiber Core And Fire Ring |
| Port 1 Length | 2 |
| Port 1 Width | 2 |
| Thickness | 0.1 |
| Fits | Kia and Mazda · 35 vehicles |
OE-compatible design. Works with OE exhaust components and Walker replacement parts.
Perforated metal construction. Fiber core and fire ring help create a durable seal.
2-bolt gasket. Made for exhaust flange connections.
Cross-references Anchor 9250, BRExhaust 256-059 and BRExhaust 256-080 for the same application. See all 10.
Exhaust Pipe Flange Gasket for OE-Style Repairs
Walker 31560 is an exhaust pipe flange gasket built for sealing two-bolt exhaust connections in repair and replacement applications. It is made with perforated metal, a fiber core, and a fire ring to help maintain a tight seal at the flange joint.
Compatible with select Kia Spectra, Kia Sephia, Mazda 323, Mazda MX-3, and Mazda Protege applications, this gasket supports exhaust repairs where the flange connection between the converter and resonator assembly or other two-bolt joints needs to be resealed. Walker 31560 is also a direct-reference part number for common exhaust gasket replacement searches.
Key Features
- Walker 31560 exhaust pipe flange gasket
- 2-bolt gasket type for flange-style exhaust joints
- Perforated metal with fiber core and fire ring construction
- 2 in. x 2 in. port size
- 4.375 in. bolt hole center-to-center spacing
- 0.5 in. bolt hole diameter
- 0.1 in. thickness for flange sealing applications
- Fits select Kia and Mazda exhaust repair applications
Detailed Description
Walker 31560 is designed for exhaust systems that use a two-bolt flange connection and require a replacement gasket to restore the seal. The perforated metal body adds structure, while the fiber core and fire ring help support sealing at the exhaust joint under heat and vibration. This makes it a practical choice for exhaust pipe flange repairs on 2000-2004 Kia Spectra, 2000-2001 Kia Sephia, 1990-1995 Mazda 323, 1992-1994 Mazda MX-3, and 1990-1994 Mazda Protege. This part cross-references Anchor 9250 for the same application.
Common Repair Uses
- Exhaust leak at a two-bolt flange connection
- Noise from a worn or damaged gasket between exhaust components
- Soot or residue around the converter-to-resonator assembly joint
- Loss of seal after exhaust service or component replacement
- Flange sealing issues on Kia Spectra, Kia Sephia, and Mazda exhaust systems
Installation Notes and Tips
Confirm flange spacing, bolt hole diameter, and port dimensions before installation. Clean both mating surfaces thoroughly so the gasket seats evenly, and inspect the flange for warping or corrosion that could affect sealing. For fitment-specific searches, Walker 31560 is listed for 2000-2004 Kia Spectra, 2000-2001 Kia Sephia, 1990-1995 Mazda 323, 1992-1994 Mazda MX-3, and 1990-1994 Mazda Protege.
Quality Assurance
Walker supplies exhaust sealing components for OE exhaust systems and Walker aftermarket replacement parts, giving this gasket a fitment-focused design for repair work that follows original-style exhaust connections.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2004 | Kia | Spectra | — | — | — | 1.8L | L4 | N/A | — |
| 2004 | Kia | Spectra | — | — | — | 1.8L | L4 | Converter To Resonator Assembly | — |
| 2003 | Kia | Spectra | — | — | — | 1.8L | L4 | N/A | — |
| 2003 | Kia | Spectra | — | — | — | 1.8L | L4 | Converter To Resonator Assembly | — |
| 2002 | Kia | Spectra | — | — | — | 1.8L | L4 | N/A | — |
| 2002 | Kia | Spectra | — | — | — | 1.8L | L4 | Converter To Resonator Assembly | — |
| 2001 | Kia | Sephia | — | — | — | 1.8L | L4 | N/A | — |
| 2001 | Kia | Sephia | — | — | — | 1.8L | L4 | Converter To Resonator Assembly | — |
| 2001 | Kia | Spectra | — | — | — | 1.8L | L4 | N/A | — |
| 2001 | Kia | Spectra | — | — | — | 1.8L | L4 | Converter To Resonator Assembly | — |
| 2000 | Kia | Sephia | — | — | — | 1.8L | L4 | N/A | — |
| 2000 | Kia | Sephia | — | — | — | 1.8L | L4 | Converter To Resonator Assembly | — |
| 2000 | Kia | Spectra | — | — | — | 1.8L | L4 | N/A | — |
| 2000 | Kia | Spectra | — | — | — | 1.8L | L4 | Converter To Resonator Assembly | — |
| 1995 | Mazda | 323 | — | Hatchback | — | 1.6L | L4 | N/A | — |
| 1994 | Mazda | 323 | — | Hatchback | — | 1.6L | L4 | N/A | — |
| 1994 | Mazda | MX-3 | — | — | — | 1.8L | V6 | N/A | — |
| 1994 | Mazda | Protege | — | Sedan | FWD | 1.8L | L4 | N/A | — |
| 1994 | Mazda | Protege | — | Sedan | — | 1.8L | L4 | N/A | — |
| 1993 | Mazda | 323 | — | Hatchback | — | 1.6L | L4 | N/A | — |
| 1993 | Mazda | MX-3 | — | — | — | 1.6L | L4 | N/A | — |
| 1993 | Mazda | MX-3 | — | — | — | 1.8L | V6 | N/A | — |
| 1993 | Mazda | Protege | — | Sedan | FWD | 1.8L | L4 | N/A | — |
| 1993 | Mazda | Protege | — | Sedan | — | 1.8L | L4 | N/A | — |
| 1992 | Mazda | 323 | — | Hatchback | — | 1.6L | L4 | N/A | — |
| 1992 | Mazda | MX-3 | — | — | — | 1.6L | L4 | N/A | — |
| 1992 | Mazda | MX-3 | — | — | — | 1.8L | V6 | N/A | — |
| 1992 | Mazda | Protege | — | Sedan | FWD | 1.8L | L4 | N/A | — |
| 1992 | Mazda | Protege | — | Sedan | — | 1.8L | L4 | N/A | — |
| 1991 | Mazda | 323 | — | Hatchback | — | 1.6L | L4 | N/A | — |
| 1991 | Mazda | Protege | — | Sedan | FWD | 1.8L | L4 | N/A | — |
| 1991 | Mazda | Protege | — | Sedan | — | 1.8L | L4 | N/A | — |
| 1990 | Mazda | 323 | Base | Hatchback | — | 1.6L | L4 | N/A | — |
| 1990 | Mazda | Protege | — | Sedan | FWD | 1.8L | L4 | N/A | — |
| 1990 | Mazda | Protege | — | Sedan | — | 1.8L | L4 | N/A | — |
