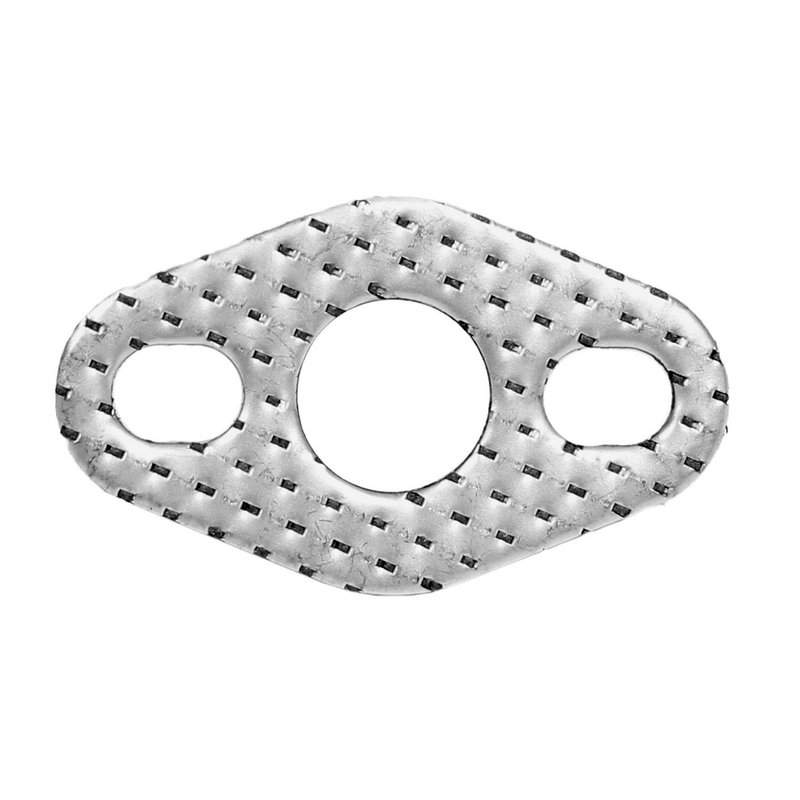

Walker 31564 Oxygen Sensor Gasket
| Brand | Walker 31564 |
|---|---|
| Bolt Hole Center To Bolt Hole Center 1 | 1.75 |
| Bolt Hole Diameter | 0.375 |
| Gasket Type | 2 Bolt |
| Material | Perforated Metal And Fiber Laminate |
| Port 1 Length | 0.75 |
| Port 1 Width | 0.75 |
| Thickness | 0.06 |
| Fits | Toyota · 22 vehicles |
OE-style fit. Works with OE exhaust components and Walker replacement parts.
Perforated metal and fiber laminate. Combines strength with a reliable sealing surface.
2-bolt gasket. Made for a secure exhaust connection.
Cross-references Anchor 9291, Walker Exhaust 45405 and 874-291 for the same application. See all 7.
Walker Oxygen Sensor Gasket 31564
Walker 31564 is an oxygen sensor gasket built for exhaust sealing at the sensor flange. It uses perforated metal and fiber laminate construction with a 0.06-inch thickness to help maintain a tight seal in exhaust repair work on Toyota Pickup applications.
Key Features
- Perforated metal and fiber laminate construction for exhaust sealing
- 0.06-inch thickness for a precise flange seal
- 2-bolt gasket design
- Bolt hole center to bolt hole center: 1.75 inches
- Bolt hole diameter: 0.375 inch
- Port opening dimensions: 0.75 inch by 0.75 inch
- Walker part number 31564 for exhaust repair and replacement
Detailed Description
This Walker oxygen sensor gasket is made to complete exhaust repair work where a sealed connection is needed between OE exhaust components and Walker aftermarket replacement parts. It is a direct-fit sealing component for select Toyota Pickup exhaust applications, including 1988-1995 Toyota Pickup configurations listed in the fitment data. This part cross-references Anchor 9291 for the same application.
What It Helps Fix
- Exhaust leaks at the oxygen sensor flange
- Noise caused by a poor sealing surface
- Loss of sealing integrity after gasket wear or removal
- Fitment issues during Toyota Pickup exhaust service
- Sealing problems when replacing related Walker exhaust components
Installation Notes and Tips
Use this gasket only with the listed Toyota Pickup applications and the required Walker exhaust part numbers noted in fitment. Confirm flange alignment, bolt spacing, and port size before installation. Clean the mating surfaces thoroughly so the gasket can seat evenly and seal correctly.
Compatible With 1988-1992 Toyota Pickup, N/A; 1989 Toyota Pickup, N/A; 1990-1992 Toyota Pickup, N/A; 1993-1995 Toyota Pickup, N/A. Notes vary by emission system, bed length, and related Walker part number requirements.
Quality Assurance
Walker manufactures exhaust sealing components for use with OE-style exhaust systems and Walker replacement parts. Part number 31564 is built to match the listed flange and port dimensions for the specified Toyota Pickup fitments.
| Year | Make | Model | Body Type | Drive Type | Transmission | Liters | Cylinders | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1995 | Toyota | Pickup | Extended Cab Pickup | RWD | — | 2.4L | L4 | 121.9" | N/A | Must Use with Part Number(s) 45405; without California Emission System |
| 1995 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 102.9" | N/A | Long Bed; Must Use with Part Number(s) 45405; with Federal Emission System |
| 1994 | Toyota | Pickup | Extended Cab Pickup | RWD | — | 2.4L | L4 | 121.5" | N/A | Must Use with Part Number(s) 45405; without California Emission System |
| 1994 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 102.9" | N/A | Long Bed; Must Use with Part Number(s) 45405; with Federal Emission System |
| 1994 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 112.2" | N/A | Long Bed; Must Use with Part Number(s) 45405; with Federal Emission System; Except Flareside |
| 1993 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 112.2" | N/A | Must Use with Part Number(s) 45405; with Federal Emission System; Except Flareside |
| 1993 | Toyota | Pickup | Extended Cab Pickup | RWD | — | 2.4L | L4 | 121.5" | N/A | Must Use with Part Number(s) 45405; without California Emission System |
| 1993 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 102.9" | N/A | Long Bed; Must Use with Part Number(s) 45405; with Federal Emission System |
| 1992 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 102.9" | N/A | Long Bed; Must Use with Part Number(s) 43405 |
| 1992 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 121.5" | N/A | Must Use with Part Number(s) 45405 |
| 1992 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 112.2" | N/A | Must Use with Part Number(s) 43405; Except Flareside |
| 1991 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 102.9" | N/A | Long Bed; Must Use with Part Number(s) 43405 |
| 1991 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 121.5" | N/A | Must Use with Part Number(s) 45405 |
| 1991 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 112.2" | N/A | Must Use with Part Number(s) 43405; Except Flareside |
| 1990 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 102.9" | N/A | Long Bed; Must Use with Part Number(s) 43405 |
| 1990 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 121.5" | N/A | Must Use with Part Number(s) 45405 |
| 1990 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 112.2" | N/A | Must Use with Part Number(s) 43405; Except Flareside |
| 1989 | Toyota | Pickup | Extended Cab Pickup | RWD | — | 2.4L | L4 | 121.5" | N/A | Must Use with Part Number(s) 45405 |
| 1989 | Toyota | Pickup | Standard Cab Pickup | RWD | Automatic | 2.4L | L4 | — | N/A | — |
| 1988 | Toyota | Pickup | Extended Cab Pickup | RWD | — | 2.4L | L4 | 121.5" | N/A | Must Use with Part Number(s) 45405 |
| 1988 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 112.2" | N/A | Must Use with Part Number(s) 45405 |
| 1988 | Toyota | Pickup | — | RWD | — | 2.4L | L4 | 103.0" | N/A | Must Use with Part Number(s) 45405 |
