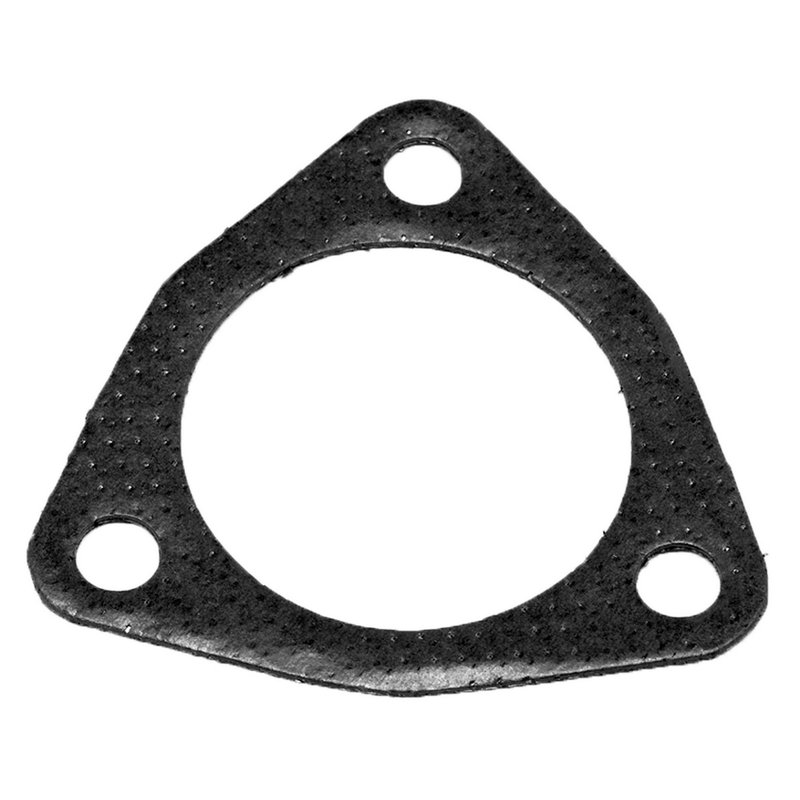

Walker 31589 Exhaust Pipe Flange Gasket

Exhaust Pipe Flange Gasket for OE-Style Repairs

Walker 31589 is an exhaust pipe flange gasket built for sealing repairs at common exhaust connection points. It uses high temperature graphite with a steel core to help maintain a tight seal between mating exhaust components, including OE exhaust parts and Walker replacement components.

With a 3-bolt design, 0.051-inch thickness, and a 2.625 x 2.625-inch port size, this gasket is sized for specific flange connections found on a wide range of Honda, Acura, Buick, Chevrolet, and other applications. Walker 31589 is a direct-fit sealing solution for exhaust pipe flange service.

Key Features

• Walker part number 31589
• 3-bolt exhaust pipe flange gasket design
• High temperature graphite with steel core construction
• Port size: 2.625 x 2.625 inches
• Thickness: 0.051 inch
• Bolt hole center to bolt hole center: 3.375 inches
• Bolt hole diameter: 0.5 inch
• Designed for use with OE exhaust components and Walker aftermarket replacement parts

Detailed Description

Walker 31589 is made for exhaust flange sealing where heat, vibration, and repeated thermal cycling can weaken an existing gasket. The graphite sealing material helps conform to the flange surface, while the steel core adds structure for a more stable seal at the joint. This makes it a practical choice for exhaust pipe flange repair on vehicles such as the Honda Accord, Acura TL, and Chevrolet S10, where the correct flange gasket is critical to restoring a proper exhaust connection.

This part cross-references Anchor 9018 for the same application. It also interchanges with 256-790 and 256-1060.

Compatible Vehicle Applications

• Fits 2011-2017 Buick Regal, Front Converter To Rear Converter, with Dual Exhaust
• Fits 2012-2017 Buick Verano, Front Converter To Rear Converter
• Fits 2013-2017 Honda Accord, Rear Converter To Resonator
• Fits 2013-2017 Honda Accord, Rear Converter To Resonator, Except Dual Mufflers
• Fits 2011-2016 Buick LaCrosse, Front Converter To Rear Converter, with Dual Exhaust
• Fits 2013-2015 Acura ILX, N/A
• Fits 2012-2015 Honda Civic, N/A
• Fits 2009-2014 Acura TSX, Converter To Resonator Assembly
• Fits 2008-2012 Honda Accord, Rear Converter To Resonator Assembly
• Fits 2010-2011 Honda CR-V, Converter To Resonator Assembly
• Fits 2004-2010 Chevrolet Malibu, N/A
• Fits 2005-2010 Honda Odyssey, Rear Converter To Resonator Assembly
• Fits 2005-2010 Pontiac G6, N/A
• Fits 2005-2009 Chevrolet Equinox, Converter To Resonator Assembly
• Fits 2006-2009 Pontiac Torrent, Converter To Resonator Assembly
• Fits 2004-2008 Acura TL, Rear Converter To Resonator Assembly
• Fits 2005-2008 Honda Pilot, N/A
• Fits 2006-2008 Honda Ridgeline, N/A
• Fits 2008 Saturn Aura, N/A, with Federal Emission System
• Fits 2004-2008 Suzuki Forenza, Resonator To Resonator Assembly
• Fits 2003-2007 Honda Accord, N/A
• Fits 2007 Saturn Aura, N/A
• Fits 2004-2006 Acura MDX, N/A
• Fits 2000-2005 Honda S2000, Converter To Muffler Assembly
• Fits 2003-2005 Suzuki Grand Vitara, N/A
• Fits 1999-2001 Suzuki Grand Vitara, N/A
• Fits 2001-2004 Chevrolet Tracker, N/A
• Fits 2004 Suzuki Vitara, N/A
• Fits 2000-2004 Volvo S40, Resonator To Muffler Assembly
• Fits 2000-2004 Volvo V40, Resonator To Muffler Assembly
• Fits 2003 Acura MDX, Rear Converter To Resonator Assembly
• Fits 2003 Suzuki XL-7, N/A, 2nd Design; To Chassis # 24102913
• Fits 2002 Suzuki Grand Vitara, N/A, To Chassis # 24151391
• Fits 2002 Suzuki Grand Vitara, N/A, From Chassis # 24153267
• Fits 2002 Suzuki Grand Vitara, N/A, From Chassis # 24151392
• Fits 2002 Suzuki Grand Vitara, N/A, To Chassis # 24153266
• Fits 2002 Suzuki XL-7, N/A
• Fits 1996-1999 Chevrolet Blazer, Y-Pipe To Converter
• Fits 1998-1999 Chevrolet Camaro, N/A, Standard Series; with Dual Exhaust
• Fits 1998-1999 Chevrolet Camaro, N/A, with Single Exhaust
• Fits 1996-1999 Chevrolet S10, Y-Pipe To Converter
• Fits 1996-1999 Chevrolet S10, Y-Pipe To Converter, without High Rider Option
• Fits 1996-1999 Chevrolet S10, Y-Pipe To Converter, with High Rider Package
• Fits 1996-1999 GMC Jimmy, Y-Pipe To Converter
• Fits 1996-1999 GMC Sonoma, Y-Pipe To Converter, without High Rider Option
• Fits 1996-1999 GMC Sonoma, Y-Pipe To Converter
• Fits 1996-1999 GMC Sonoma, Y-Pipe To Converter, with High Rider Package
• Fits 1998-1999 Isuzu Hombre, Y-Pipe To Converter
• Fits 1996-1999 Oldsmobile Bravada, Y-Pipe To Converter
• Fits 1996-1999 Toyota Celica, N/A
• Fits 1994-1998 Hyundai Sonata, N/A, with California Emission System
• Fits 1996-1997 Toyota RAV4, N/A

Common Repair Uses

• Sealing an exhaust flange after gasket failure
• Reducing exhaust leaks at converter, resonator, or muffler connections
• Restoring a proper seal on a 3-bolt exhaust joint
• Addressing noise or odor caused by a leaking flange connection
• Replacing a worn gasket during exhaust pipe service on Honda Accord, Acura TL, or Chevrolet S10 applications

Installation Notes and Tips

Confirm the flange pattern, bolt hole spacing, and port dimensions before installation. Walker 31589 uses a 3-bolt layout with 3.375-inch bolt hole center spacing and 0.5-inch bolt holes, so the mating flange must match these dimensions. Clean both sealing surfaces thoroughly before assembly to help the gasket seat evenly and seal correctly.

For best results, inspect the flange for warping, corrosion, or pitting before reassembly. This gasket is intended for exhaust pipe flange service on the listed applications, including Honda Civic, Honda Accord, and Acura TL fitments where the correct flange seal is required.

Quality Assurance

Walker manufactures exhaust sealing components for use with OE exhaust systems and Walker aftermarket replacement parts. Part number 31589 is built with high temperature graphite and a steel core to support consistent sealing performance in exhaust repair service.
