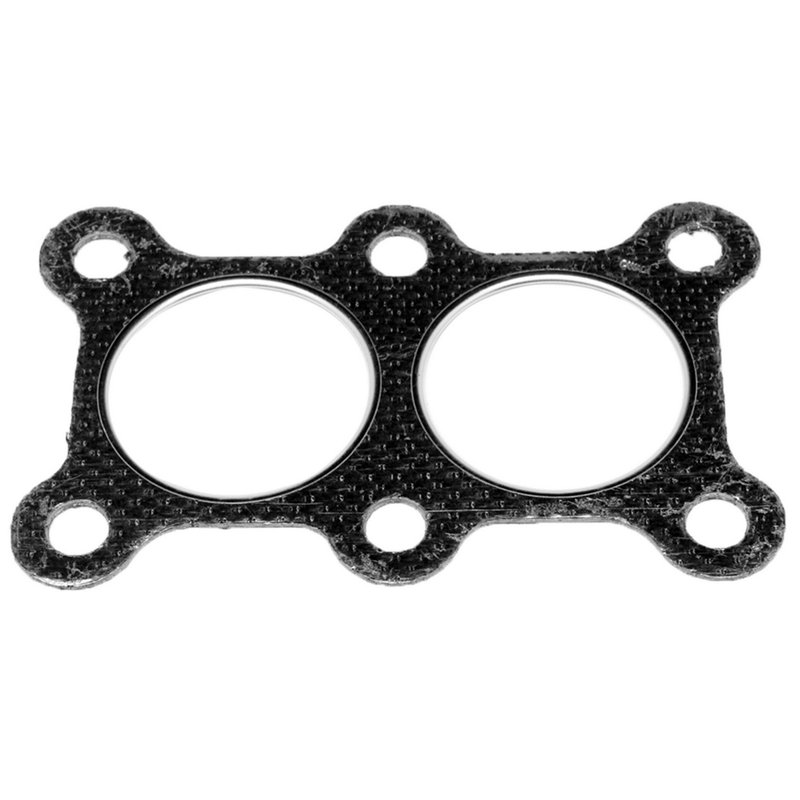

Walker 31603 Exhaust Pipe Flange Gasket

Overview of Walker Exhaust Pipe Flange Gasket 31603

The Walker 31603 exhaust pipe flange gasket is engineered for reliable sealing in Volkswagen exhaust systems. Designed specifically for models like the Beetle, Cabrio, Golf, Jetta, and Passat, this gasket ensures a secure connection between exhaust pipes to prevent leaks and maintain optimal exhaust flow.

• Compatible with Volkswagen Beetle, Cabrio, Golf, Jetta, and Passat
• 6-bolt gasket type for secure flange connection
• Constructed from high temperature graphite with steel core and metal fire ring
• Precise bolt hole spacing: 2.5" and 2.75" center to center
• Port dimensions: 2.125" length and width for both ports
• Thickness of 0.051" for effective sealing
• Bolt hole diameter of 0.5" to fit standard exhaust bolts

Technical Details and Material Composition

The Walker 31603 exhaust pipe flange gasket features a high temperature graphite material combined with a steel core and metal fire ring. This composition provides durability and resistance to extreme heat and corrosion commonly found in exhaust systems. The gasket’s 6-bolt design ensures even pressure distribution across the flange, reducing the risk of exhaust leaks. With bolt hole centers measuring 2.5" and 2.75" and a bolt hole diameter of 0.5", this gasket matches the exact specifications required for Volkswagen exhaust pipe flanges. Both ports measure 2.125" in length and width, maintaining proper exhaust flow and sealing integrity.

Applications and Problem Solving

• Prevents exhaust leaks caused by worn or damaged gaskets
• Eliminates exhaust noise from flange gaps
• Maintains proper exhaust backpressure for engine performance
• Resists heat and corrosion to extend exhaust system life
• Ensures secure flange connection on Volkswagen Beetle, Cabrio, Golf, Jetta, and Passat models

Installation Notes and Tips

When installing the Walker 31603 exhaust pipe flange gasket, ensure the flange surfaces are clean and free of debris or old gasket material. Align the gasket carefully with the bolt holes and ports to avoid misalignment that could cause leaks. Use the correct torque specifications for the 6-bolt flange to achieve an even seal without over-tightening, which can damage the gasket or flange. It is recommended to inspect the exhaust flange for warping or damage before installation to ensure a proper fit.

Quality Assurance and Warranty

Walker exhaust gaskets are manufactured to meet OEM specifications for fit and durability. The use of high temperature graphite with a steel core and metal fire ring provides reliable performance under demanding conditions. While specific warranty details for part number 31603 may vary, Walker products typically come with a limited warranty against defects in material and workmanship. Refer to Walker’s official documentation for complete warranty information.
