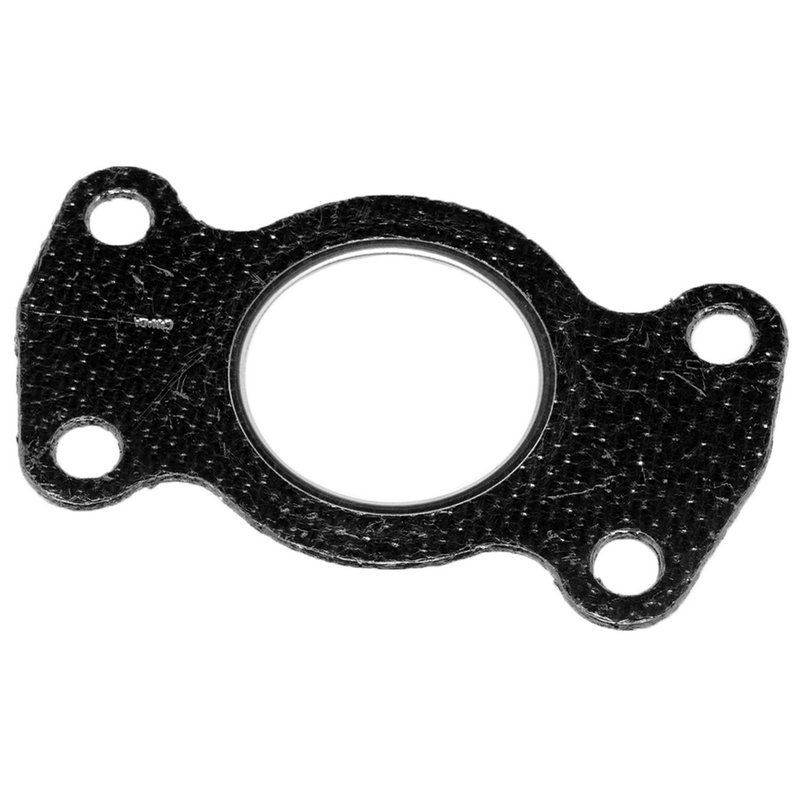

Walker 31606 Exhaust Pipe Flange Gasket

Exhaust Pipe Flange Gasket for OE-Style Repair

Walker 31606 is an exhaust pipe flange gasket built for sealing repairs at the flange connection. It uses high temperature graphite with a steel core and metal fire ring to support a tight seal where exhaust leaks often develop. This gasket is a direct-fit style option for select Pontiac, Buick, Chevrolet, and Oldsmobile applications, including Pontiac Grand Am and Chevrolet Cavalier.

Key Features

• 4-bolt exhaust pipe flange gasket design
• High temperature graphite construction with steel core
• Metal fire ring for added sealing support
• Thickness: 0.049 in.
• Port size: 2.000 in. x 2.000 in.
• Bolt hole center spacing: 3.625 in., 1.875 in., and 4.375 in.
• Bolt hole diameter: 0.5 in.
• Walker 31606 is engineered for use with OE exhaust components and Walker aftermarket replacement parts

Detailed Description

Walker 31606 is an exhaust pipe flange gasket designed to complete an exhaust repair at the flange joint. Its graphite body, steel core, and metal fire ring are selected to help maintain sealing performance under exhaust heat and pressure. This part is a practical choice for service work on vehicles such as the 1996-1998 Chevrolet Cavalier, 1996-1998 Pontiac Sunfire, and 1999 Pontiac Grand Am, along with other listed applications. This part cross-references 9054 and EG24283 for the same application.

Vehicle Fitment

• Fits 1999 Pontiac Grand Am, N/A, 1st Design
• Fits 1996-1998 Buick Skylark, N/A
• Fits 1996-1998 Chevrolet Cavalier, N/A
• Fits 1997-1998 Chevrolet Malibu, N/A
• Fits 1996-1998 Oldsmobile Achieva, N/A
• Fits 1996-1998 Pontiac Grand Am, N/A
• Fits 1996-1998 Pontiac Sunfire, N/A

Common Repair Uses

• Sealing an exhaust leak at the flange connection
• Replacing a damaged or heat-worn exhaust gasket
• Restoring a proper seal after exhaust pipe service
• Addressing noise from a leaking exhaust joint
• Helping correct soot marks or odor from a flange leak

Installation Notes and Tips

Confirm flange bolt spacing, port size, and bolt hole diameter before installation. Clean both mating surfaces thoroughly so the gasket can seat evenly, and inspect the flange for warping or corrosion that could affect sealing. Walker 31606 is intended for use with matching OE-style exhaust components and Walker aftermarket replacement parts.

Quality Assurance

Walker supplies exhaust sealing components for repair applications that follow OE-style fitment and dimensional requirements. The materials used in Walker 31606 are selected for high-temperature exhaust service and consistent sealing at the flange joint.
