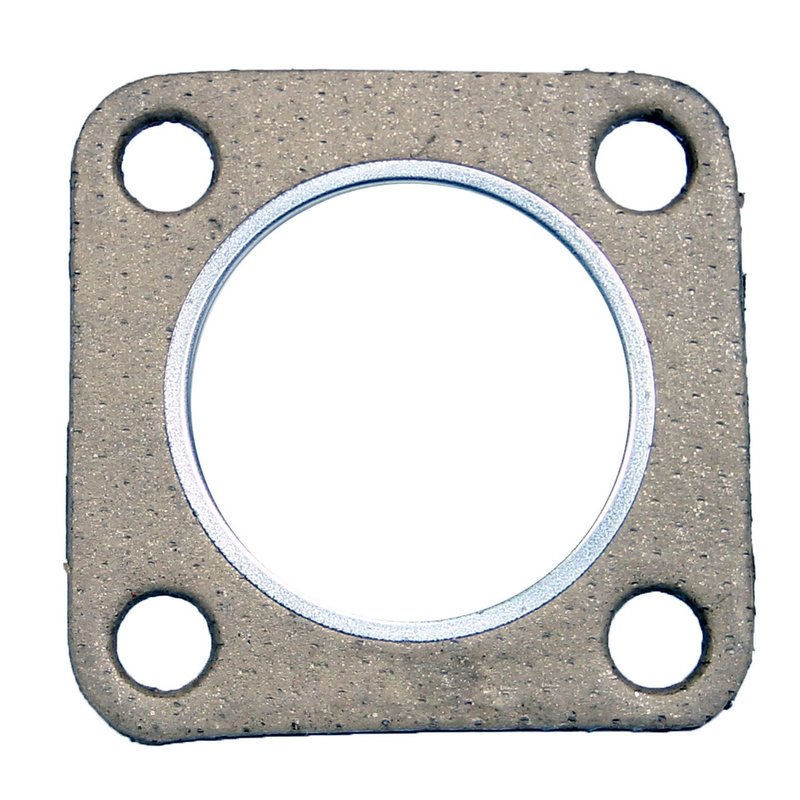

Walker 31662 Exhaust Pipe Flange Gasket

Overview of Walker Exhaust Pipe Flange Gasket 31662

The Walker 31662 exhaust pipe flange gasket is designed for reliable sealing in Volkswagen exhaust systems. Compatible with Volkswagen Beetle, Golf, Jetta, and Passat models, this gasket ensures a secure connection between exhaust components to prevent leaks and maintain system integrity.

• 4-bolt gasket type for secure flange connection
• Constructed from metal mesh and thermal insulating laminate
• Bolt hole center-to-center distance: 2.625 inches
• Bolt hole diameter: 0.5 inches
• Port dimensions: 2.5 inches length and width
• Thickness of 0.058 inches for optimal sealing

Detailed Product Description

The Walker 31662 exhaust pipe flange gasket features a 4-bolt design, providing a stable and tight seal between exhaust pipe flanges. Its construction combines metal mesh with a thermal insulating laminate, which helps withstand high temperatures and reduces the risk of exhaust leaks. The gasket’s precise dimensions, including a bolt hole center-to-center measurement of 2.625 inches and bolt hole diameter of 0.5 inches, ensure compatibility with specific Volkswagen exhaust flange configurations. The port size of 2.5 inches by 2.5 inches and a thickness of 0.058 inches contribute to a proper fit and effective sealing performance.

Applications and Common Issues Addressed

• Prevents exhaust gas leaks at flange connections
• Reduces noise caused by escaping exhaust fumes
• Helps maintain proper backpressure for engine performance
• Protects against corrosion and thermal damage at flange joints
• Compatible with Volkswagen Beetle, Golf, Jetta, and Passat exhaust systems

Installation Notes and Tips

When installing the Walker 31662 exhaust pipe flange gasket, ensure that flange surfaces are clean and free of debris or old gasket material. Align the gasket carefully with the bolt holes and ports to avoid misalignment. Tighten bolts evenly in a crisscross pattern to achieve uniform pressure and prevent leaks. It is recommended to inspect the gasket and flange condition during installation to confirm proper fitment and sealing.

Quality Assurance and Warranty

Walker exhaust gaskets are manufactured to meet industry standards for durability and heat resistance. The 31662 gasket is engineered to provide consistent sealing performance under typical operating conditions for Volkswagen exhaust systems. While specific warranty details are not provided, Walker products generally adhere to quality control processes to ensure reliability and fitment accuracy.
